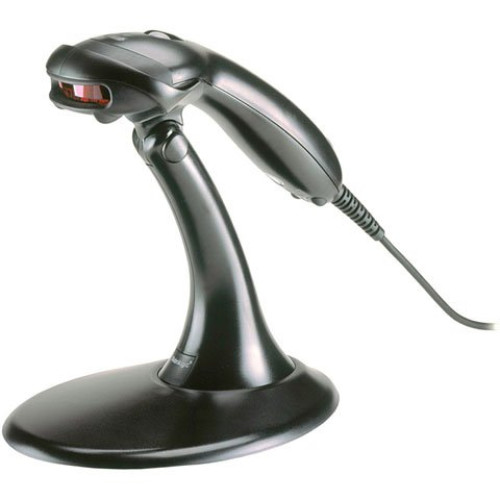

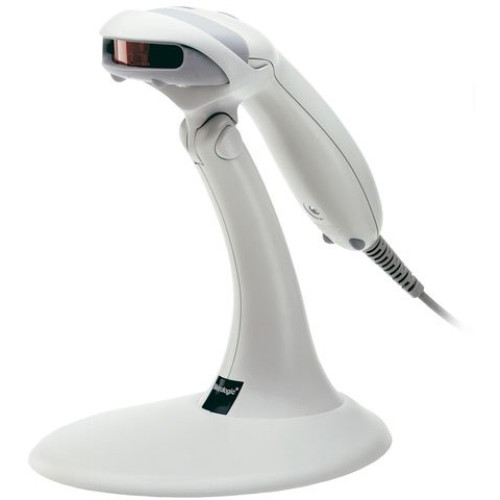

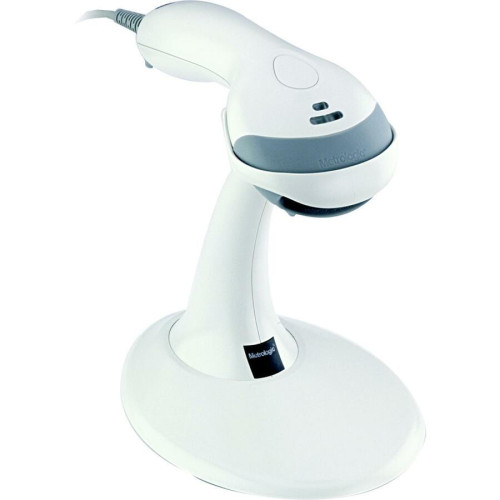

Metrologic MS9540 Voyager Barcode Scanner
Part #: MK9540-32A47 | SKU: 16191

With a futuristic design and high-performance scanning technology the MS9540 VoyagerCG is equipped with all of the features of the MS9520 Voyager with the addition of Metrologic's exclusive CodeGate data transmission technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications including Point-of-Sale document processing inventory and menu scanning just to name a few. CodeGate works hand in hand with Metrologic's automatic-triggering scheme. Simply present a bar code to the scanner; place the high-visibility laser line on the bar code then press the CodeGate button to transmit the data to the host system. It's as easy as one two three! Equipped with both In-Stand and Out-of-Stand operation Voyager can be used as both a hand-held and fixed projection scanner. While resting in the stand the CodeGate button is deactivated making VoyagerCG a presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. With aggressive performance and lightweight design VoyagerCG is far and away the most advanced scanner on the market today!

Metrologic MS9540 Voyager Barcode Scanner

Part Details: Handheld scanner (9500 Series Operators Manual, Programming Manual, 9500 Mask Stand, 9500 Stand Apron, Cable Black Wedge Coil and Voyager CodeGate Keyboard wedge) - Color: Black

Additional Information

Connection No
Connectivity No
Form Factor No
Included Cables AT/PS2 Keyboard Wedge
Manufacturer No
Model Name MS9540 Voyager
Product Condition No
Ruggedness General Purpose
Scan Pattern No
Scanner Capability 1D
Scanner Type Laser

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard Symbologies
    • RSS
    • All Standard Symbologies
    • RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 2"@5.20 mil
    • 0 mil - 5"@7.50 mil
    • 0 mil - 7"@10.40 mil
    • 0 mil - 8"@13 mil
    • 1" - 10"@21 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9540
  • Product Name: VoyagerCG MS9540 Barcode Reader
  • Product Line: VoyagerCG

Physical Characteristics

  • Height: 7.8"
  • Width: 3.1"
  • Depth: 1.6"
  • Color: Black
  • Weight (Approximate): 5.26 oz

Interfaces/Ports

  • Host Interface: Keyboard Wedge

Other

  • Package Contents:
    • VoyagerCG MS9540 Barcode Reader
    • Mask Stand
    • Coiled Dual Din Connector Cable
    • Manuals
    • VoyagerCG MS9540 Barcode Reader
    • Mask Stand
    • Coiled Dual Din Connector Cable
    • Manuals
  • Certifications & Standards:
    • Laser Class:
    • Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
    • Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001
    • EMC:
    • FCC
    • ICES-003
    • EN55022 Class B
  • Platform Supported: PC

Warranty

  • Limited Warranty: 5 Year
Extended Details
