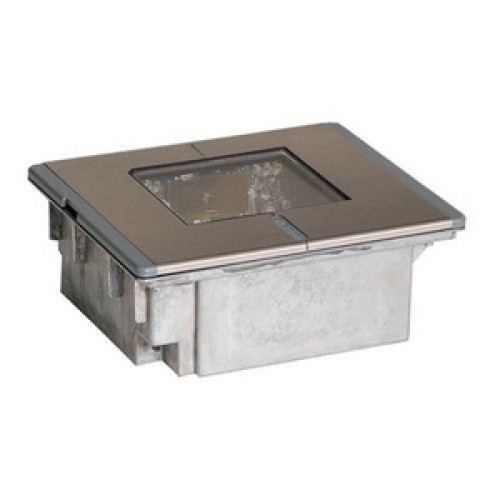

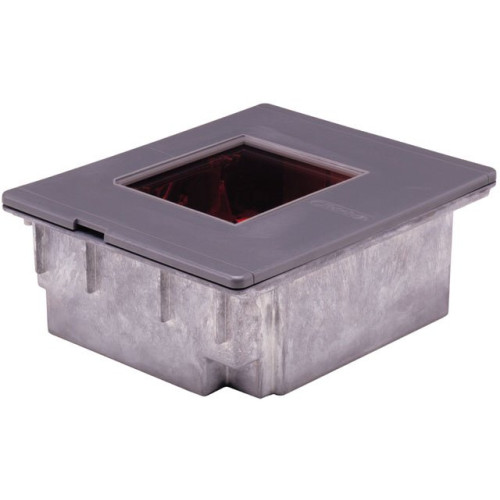

Metrologic Horizon 7600 Barcode Scanner
Part #: MK7620-71B07 | SKU: MET48913

Metrologic's MS7600 Series Horizon is Metrologic's next generation in-counter laser bar code scanner. This compact hands-free scanner is designed with a dense 20 line omnidirectional scan pattern that helps provide fast efficient throughput with a high first-pass read rate. Each Horizon is equipped with an integrated EAS deactivation antenna. The EAS security tag designed to reduce shrink is deactivated and the bar code is scanned with a single pass. These simultaneous operations help improve operator comfort and increase throughput. To further enhance operator efficiency and productivity Horizon is equipped with IR laser activation. This allows the user to wake the unit from a power save or sleep mode and read a bar code instantaneously without any delay. Each Horizon includes an RS232 auxiliary port that allows for hand held bar code scanners to be connected providing easy scanning of bulky over -sized objects. Other peripherals such as check readers or magnetic stripe readers can also utilize the flexibility of the auxiliary port. The Horizon also offers multiple interfaces and data editing making it compatible with almost every POS system on the market today. The combination of performance ruggedness and a myriad of features make the Horizon an ideal choice for grocery retail coupon redemption and a multitude of applications.

Metrologic Horizon 7600 Barcode Scanner

Part Details: MS7600, Series Horizon (MS7620 Model, Plastic Top, USB Interface, Standard Glass, Fixed and 110 Volt Power supply)

Additional Information

Included Cables USB
Manufacturer Metrologic
Model Name MS7600
Product Condition No
Specialty Encoding None

Technical Information

  • Form Factor: In Counter Scanner
  • Barcode Dimension: 1D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • All Standard 1D Symbologies
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Scanner Type: Laser
  • Scan Rate: 2000 lps
  • Interface Options: USB Keyboard
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5.2 V DC
  • Depth of Field:
    • 0 - 1.5"@5.2mils
    • 0 - 4.5"@7.5mils
    • 0 - 7"@10.4mils
    • 0 - 8"@13mils
    • 0 - 9"@19.5mils

General Information

Physical Characteristics

  • Dimensions:
    • 7.6" (193.04mm) x 9" (228.6mm) x 3.5" (88.9mm)
    • 7.6" (193.04mm) x 9" (228.6mm) x x 3.5" (88.9mm)
  • Weight: 2.88 kg (6.35 lb)
  • Color: Gray

Other

  • Package Contents:
    • Horizon MS7620 Barcode Scanner
    • 110V Power Supply
    • Straight Cable
    • Manuals
  • Cables Included: USB Type A Straight Cable

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing

Agency Approvals

  • Agency Approvals:
    • IEC 60825-1:1993 + A1:1997 + A2:2001 Class 1
    • FCC
    • ICES-003 & EN55022 Class A
Extended Details

Recommended Accessories for Model: Metrologic Horizon 7600 Barcode Scanner

  • Honeywell 1400g Power Device
    Part #: 46-00525-6 | SKU: HON453630

    Power Supply - 90 to 255 AC Input Voltage - 1A Output Current - North American Plug - Works with Select Honeywell Scanners
    MSRP: $53.99 Price: $43.63
  • Metrologic MS7600 Accessory
    Part #: 46-46641 | SKU: 21778

    Counter ring for the MS 7620. Non-Cancelable/Non-Returnable.
    Price: $97.80
  • Honeywell Cables Accessory
    Part #: 59-59000-3 | SKU: HON83560

    CABLE, RS232, BLACK, DB9, 1.8 METERS (5.9'), STRAIGHT, 5V EXTERNAL POWER WITH EAS
    Price: $24.68
  • Honeywell Cables Accessory
    Part #: 59-59002-3 | SKU: HON83564

    CABLE, KBW, BLACK, 2.4 METERS (7.9'), STRAIGHT, 5V EXTERNAL POWER
    MSRP: $35.29 Price: $33.41
  • Honeywell Cables Accessory
    Part #: 54-54165-3 | SKU: HON83489

    CABLE, USB, BLACK, TYPE A, STRAIGHT, 5V EXTERNAL POWER
