Metrologic MS6720 Barcode Scanner Metrologic MS6720 Barcode Scanner Metrologic MS6720 Barcode Scanner Metrologic MS6720 Barcode Scanner
Metrologic Barcode Scanner

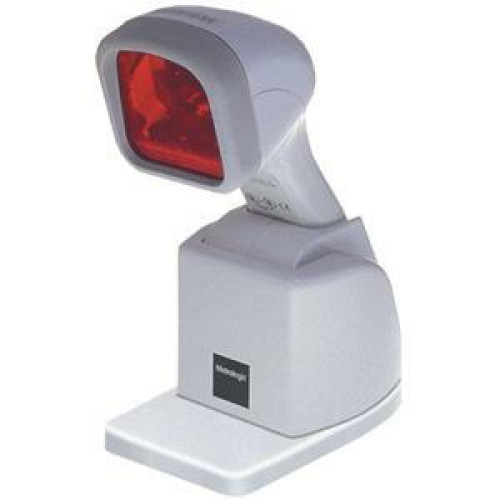

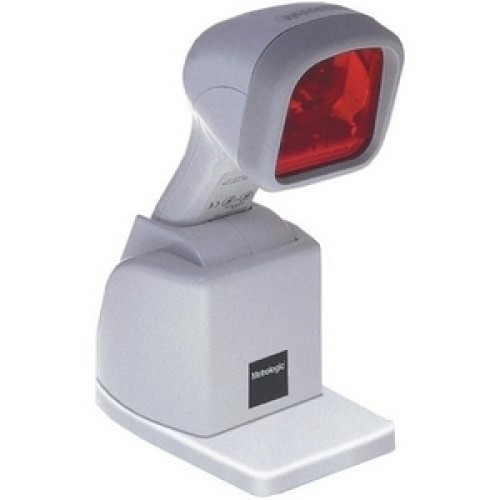

Metrologic MS6720 Barcode Scanner
Part #: MK6720-32B47 | SKU: 6231

Metrologic's MS6720 is the first Laser Bar Code Scanner to truly bridge the gap between omni-directional fixed projection and hand-held Scanners. It incorporates fixed projection performance and patented 20-line scan pattern into the comfortable ergonomic styling of the popular hand-helds. With this design Metrologic has engineered a Scanner that transcends any other on the market today. The MS6720 utilizes a unique patented infrared sensor and control scheme for hands-free projection scanning and fatigue reduced hand-held operation. Whether operators choose to present small items to the Scanner or transport the lightweight Scanner to bulkier items the MS6720 is the perfect choice for many applications. Included with the MS6720 Scanner is a stationary stand which is ideal for applications where the MS6720 is being used mostly as a hand-held Scanner. This stand was designed for ease of use while still providing sufficient room for fixed presentation. An optional adjustable stand is also available and provides 7 rotational and 9 tilting positions as well as a removable wall mount cup. The MS6720 features both short-range and long-range activation user-friendly programming reliability and versatility. Operators are sure to appreciate the convenience and flexibility of the MS6720.

Metrologic MS6720 Barcode Scanner

Part Details: Omnidirectional Fixed-Handheld scanner (with Keyboard wedge Interface and Adjustable Stand) - Color: Black
Need a different version of the Metrologic MS6720 Barcode Scanner? View all 14 configurations

Additional Information

Included Cables USB
Manufacturer No
Model Name MS6720
Product Condition No
Specialty Encoding None
MS6720 Specs MS6720 Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D
  • Resolution: 5.7 mil(s)
  • Symbologies Supported:
    • All Standard Symbologies
    • RSS
  • Scanner Type: Laser
  • Scan Rate: 1000 lps
  • Interface Options: Keyboard Wedge
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 110 V AC
  • Power Supply: Included
  • Depth of Field: 0 - 8"@13mils

General Information

  • Manufacturer: Metrologic
  • Product Line: MK
  • Product Name: MS6720 Barcode Scanner

Physical Characteristics

  • Dimensions: 8.6" (218.44mm) x 3.0" (76.2mm) x 2.9" (73.66mm)
  • Weight: 380 g
  • Color: Black

Other

  • Package Contents:
    • MS6720 Barcode Scanner
    • 110V Power Supply
    • Adjustable Stand
    • Coiled Dual Din Connector Cable
    • Manuals
    • Wall Clip
  • Cables Included: Keyboard Wedge

Agency Approvals

  • Agency Approvals:
    • IEC 60825-1:1993+A1:1997+A2:2001 Class 1
    • FCC
    • ICES-003
    • EN55022 Class B

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95%

Warranty

  • Manufacturer Warranty: 2 Year(s)
Extended Details

Recommended Accessories for Model: Metrologic MS6720 Barcode Scanner

  • Metrologic MS6720 Accessory
    Part #: 45-45988 | SKU: 28764

    Adapter Cable (AT/XT to PS/2) for the MS9520, MS9540 and MS6720

  • Metrologic IS4220 Accessory
    Part #: 46-46010 | SKU: 21777

    Power supply for the MS951, 6720, IS4230 and Models that use MCA

  • Metrologic MS6720 Accessory
    Part #: 51-51204 | SKU: 22860

    OCIA MCA cable for Sharp 3550, for MS6720

  • Metrologic MS951 Accessory
    Part #: 51-51225 | SKU: 22862

    Standard G-Sight 9-pin RS-232 Gilbarco cable for MS6720-41

  • Metrologic MS6720 Accessory
    Part #: MX009-2FB8S | SKU: 22938

    USB-POS cable, Lock powered, Type A, for MK6720, Gray
