Additional Information
| Connection | No |
|---|---|
| Connectivity | No |
| Form Factor | No |
| Included Cables | AT/PS2 Keyboard Wedge |
| Manufacturer | No |

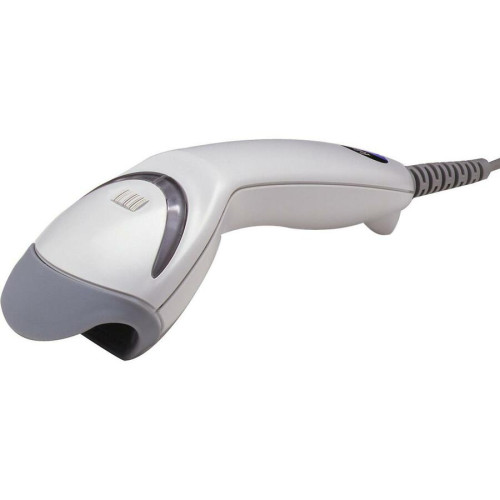

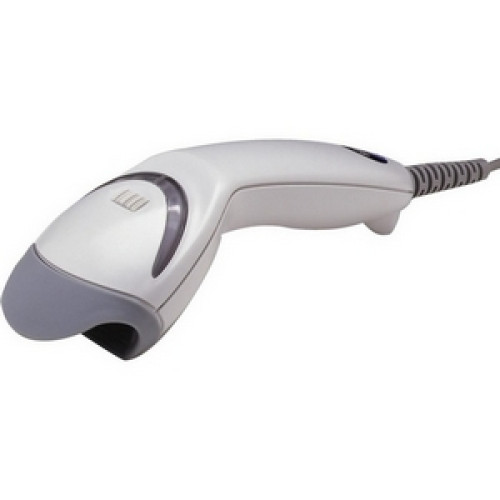

| Model Name | MS5145 Eclipse |
| Product Condition | No |
| Ruggedness | General Purpose |
| Scan Pattern | No |
| Scanner Capability | 1D |
| Scanner Type | Laser |
| Specialty Encoding | None |
MS5145 Eclipse Specs
Technical Information
- Scan Pattern: Single Line
- Connectivity Technology: Cable
- Light Source: Laser
- Image Sensor: CCD
- Barcode Symbology Supported:
- All Standard 1D Symbologies
- RSS-14
- RSS-Limited
- RSS-Expanded
- All Standard 1D Symbologies
- RSS-14
- RSS-Limited
- RSS-Expanded
- Maximum Scan Resolution: 4 mil
- Depth of Field:
- 0.38" - 1.50"@4.10 mil
- 0 mil - 2.63"@5.70 mil
- 0 mil - 4.13"@10.40 mil
- 0 mil - 5.63"@13 mil
- 0 mil - 7.13"@26 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MS5145
- Product Name: Eclipse MS5145 Barcode Reader
- Product Line: Eclipse
Physical Characteristics
- Height: 1.4"
- Width: 2.5"
- Depth: 6.7"
- Color: Black
- Weight (Approximate): 3.41 oz
Interfaces/Ports
- Host Interface: Keyboard Wedge
Other
- Package Contents:
- Eclipse MS5145 Barcode Reader
- Power Supply
- Eclipse MS5145 Barcode Reader
- Power Supply
- Certifications & Standards:
- Laser Class:
- IEC 60825-1:1993+A1:1997+A2:2001 Class 1
- EMC:
- FCC
- ICES-003 & EN55022 Class B
- Platform Supported: PC
Power Description
- Input Voltage: 5 V DC
Recommended Accessories for Model: Metrologic MS5145 Eclipse Barcode Scanner
-
Honeywell 1400g Power Device
Part #: 46-00525-6 | SKU: HON453630Power Supply - 90 to 255 AC Input Voltage - 1A Output Current - North American Plug - Works with Select Honeywell ScannersMSRP: $53.99 Price: $43.63 -
Honeywell Cables Accessory
Part #: 55-55000-3 | SKU: HON83528CABLE, RS232, BLACK, DB9 FEMALE, 2.9 METERS (9.5'), COILED, 5V EXTERNAL POWERPrice: $22.01 -
Honeywell Cables Accessory
Part #: 55-55002-3 | SKU: HON83530CABLE, KBW, BLACK, 2.4 METERS (7.9'), STRAIGHT, 5V EXTERNAL POWERPrice: $30.93 -
Honeywell Cables Accessory
Part #: 55-55235-N-3 | SKU: HON83535CABLE, USB, BLACK, TYPE A, 1.5 METERS (4.9'), STRAIGHT, HOST POWERPrice: $24.30 -
Honeywell MS5145 Accessory
Part #: 46-46633 | SKU: HON15202Stand (for the MS5145 Eclipse Scanner)Price: $27.48
Recommended Warranties for Model: Metrologic MS5145 Eclipse Barcode Scanner
-
Honeywell Service Contracts Service Contract
Part #: SVC2DAYDEPOT-SCN3 | SKU: HON604167AddOn, Edge Service, 2-Day Depot Upgrade, 3-Year Agreement, Requires purchase of a 3-Year Gold Maintenance Contract.$111.49 -
Honeywell Service Contracts Service Contract
Part #: SVC2DAYDEPOT-SCN5 | SKU: HON604168AddOn, Edge Service, 2-Day Depot Upgrade, 5-Year Agreement, Requires purchase of a 5-Year Gold Maintenance Contract.$148.65 -
Honeywell Voyager 1200g Service Contract
Part #: SVC2DAYDEPOT-SCN1 | SKU: HON616488AddOn, Edge Service, 2-Day Depot Upgrade, 1-Year Agreement, Requires purchase of a 1-Year Gold Maintenance Contract.$37.17 -
Honeywell Service Contracts Service Contract
Part #: HHSCAN1-REPAIR | SKU: HON402769Flat Rate Repair fee for 9590, 9520, 9540, 5145, 4206, 3800, 3200, 3780, 1200, 1250, and 1300. This charge is for any required repair not covered by warranty or comprehensive service.Price: $136.25 -
Honeywell MS5145 Eclipse Service Contract
Part #: SVC5145-1LC5 | SKU: HON363420Honeywell Limited Comprehensive - 5 Year Extended Service - Service - Carry-in - Maintenance - Parts & Labor - Electronic, Physical Service$37.80
