Additional Information
| Included Cables | USB |
|---|---|
| Manufacturer | No |
| Model Name | MS1690 Focus |
| Product Condition | No |
| Specialty Encoding | None |
MS1690 Focus Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Omni-directional
- Connectivity Technology: Cable
- Light Source: LED
- Image Sensor: Imager
- Barcode Symbology Supported:
- All Standard 1D Symbologies
- RSS
- PDF 417
- Micro PDF
- MaxiCode
- DataMatrix
- QR Code
- UCC/EAN Composite Codes
- Postal Code
- Aztec
- All Standard 1D Symbologies
- RSS
- PDF 417
- Micro PDF
- MaxiCode
- DataMatrix
- QR Code
- UCC/EAN Composite Codes
- Postal Code
- Aztec
- Maximum Scan Resolution: 10 mil
- Depth of Field: 0.50" - 3"@5.20 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MS1690

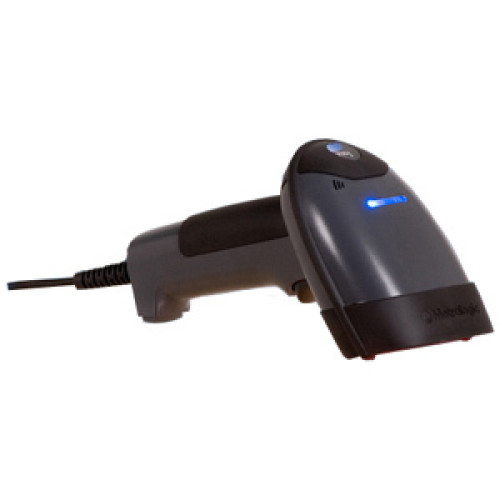

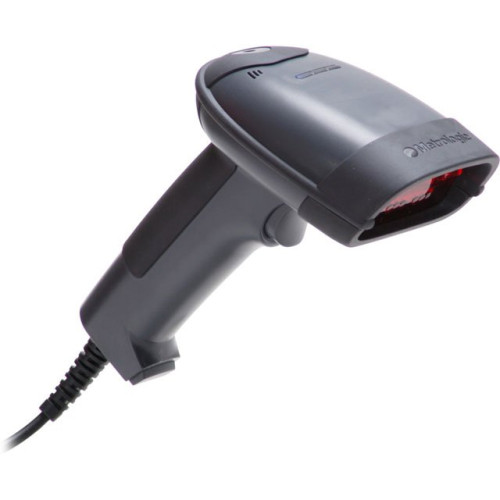

- Product Name: Focus MS1690 Barcode Reader
- Product Line: Focus
Physical Characteristics
- Height: 7.2"
- Width: 1.2"
- Depth: 4.9"
- Color:
- Black
- Dark Gray
- Weight (Approximate): 8 oz
Interfaces/Ports
- Host Interface: USB
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- Focus MS1690 Barcode Reader
- USB HID Keyboard Type A Cable
- Flex Stand
- Manuals
- Focus MS1690 Barcode Reader
- USB HID Keyboard Type A Cable
- Flex Stand
- Manuals
- Certifications & Standards:
- RoHS Compliant
- EMC:
- FCC Class A
- IEC60825-1 LED Safety
- LED Class:
- Class 1; IEC60825-1:1993/A1:1997+A2:2001
- Class 1; EN60825-1:1994/A11:1996+A2:2001
- Additional Information:
- Supported Interfaces:
- Keyboard WedgeSerialUSBIBM 46XX
Power Description
- Input Voltage: 5 V DC
Recommended Accessories for Model: Metrologic MS1690 Focus Barcode Scanner
-
Honeywell Cables Accessory
Part #: 53-53235-N-3 | SKU: HON834089.5' Coiled USB Cable. Type A connector. Color: Black.Price: $28.17 -
Honeywell 1400g Power Device
Part #: 46-00525-6 | SKU: HON453630Power Supply - 90 to 255 AC Input Voltage - 1A Output Current - North American Plug - Works with Select Honeywell ScannersMSRP: $53.99 Price: $43.63 -
Honeywell Cables Accessory
Part #: 53-53000-3 | SKU: HON83333RS232, Black, DB9 female, 2.9 meters (9.5'), coiled, 5V external. <b>See MX009-3MA7S or MX009-3MA7C for USB keyboard emulation or MX009-3MA8S or MX009-3MA8C for USB Serial emulation. Call for details.</b>Price: $23.75 -
Honeywell Cables Accessory
Part #: 53-53002-3 | SKU: HON83337CABLE, KBW, BLACK, 2.9 METERS (9.5'), COILED, 5V EXTERNAL POWERMSRP: $31.78 Price: $31.47 -
Honeywell EasyDL Software
Part #: TF-EASYDL-16XX | SKU: HON84684SOFTWARE LICENSE KEY FOR MS1633 and MS1690 (REVISIONS D AND LATER), DOWNLOAD FROM COMPANY WEBSITEPrice: $152.66
Recommended Warranties for Model: Metrologic MS1690 Focus Barcode Scanner
-
Honeywell Service Contracts Service Contract
Part #: HHSCAN2-REPAIR | SKU: HON402770Flat Rate Repair fee for 4600g/r, 1690, 1900g, 1900c, 1500, 1450g, 1400. This charge is for any required repair not covered by warranty or comprehensive service.Price: $198.20
