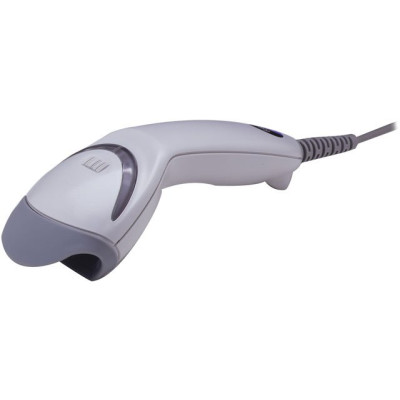

Metrologic MS5145 Eclipse Barcode Scanner
Metrologic Barcode Scanner

Metrologic MS5145 Eclipse Barcode Scanner

Metrologic MS5145 Eclipse Barcode Scanner

Eclipse is a single-line handheld laser scanner. Equipped with CodeGate Eclipse can easily target the desired barcode and complete the data transmission with a simple press of a button.
Discontinued - Need Assistance
See all options
  • Automatic trigger with CodeGate
  • Custom edit barcode data
  • Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded barcodes
  • Easy programming using Windows software or barcodes
  • OPOS and JPOS system compatible
  • User-replaceable, single cable interface to host
Metrologic MS5145 Eclipse Specs Metrologic MS5145 Eclipse Specs (pdf) Metrologic MS5145 Eclipse Driver Metrologic MS5145 Eclipse Driver (download)
MS5145 Eclipse Quick Specs
Depth of Scan Field: 0 mm - 140 mm (0” - 5.5”) for 0.33 mm (13 mil) bar codes
Width of Scan Field: 49 mm (1.9”) @ face; 195 mm (7.7”) @ 140 mm (5.5”)
Scan Speed: 72 scan lines per second
Scan Pattern: Single scan line
Minimum Bar Width: 0.102 mm (4.0 mil)
Dimensions: Length: 169 mm (6.7") Width handle: 40 mm (1.6") Height handle: 31 mm (1.2") - Width head: 63 mm (2.5") Height head: 35 mm (1.4")
System Interfaces: PC Keyboard Wedge, RS232, IBM 468x/469x, Stand Alone Keyboard, USB (low speed and full speed)
Light Source: Visible Laser Diode 650 nm ± 10 nm
Weight: 97 g (3.41 oz)
Shock: Designed to withstand 1.5 m (5') drops
Extended Details
Refine Your Options
Shop By
Shopping Options
Manufacturer
  1. Honeywell (3)
Scanner Capability
  1. 1D (20)
Ruggedness
  1. General Purpose (9)
Scanner Type
  1. Laser (20)
Included Cables
  1. USB (3)
  2. AT/PS2 Keyboard Wedge (2)
  3. RS-232 Serial (2)
  1. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MK5145-71A38-EU | SKU: 243297

    MS5145 Eclipse, USB Kit, 1D Laser, Includes 5' USB cable. Color: Gray. European configuration.
  2. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MK5145-71A48 | SKU: 15197

    Gray, PS standalone KB, cables, User's Manual, No Power supply
  3. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MK5145-71B11 | SKU: 15198

    Gray, IBM 9-E, Power supply, cables, User's Manual, See accessories for Stand
  4. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MK5145-71B47 | SKU: 15201

    with CodeGate Gray, Keyboard wedge, PS, MANUAL, NO STAND
  5. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MK5145-31A40 | SKU: 28828

    PoweredUSB is non-standard, please call for more information. IBM PoweredUSB, Black, with CodeGate, Cables, User's Manual, See accessories for Stand
  6. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MK5145-71A11 | SKU: 48882

    Scanner (with CodeGate, IBM, Cable, Manual and No Stand) - Color: Gray
  7. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MS5145-41 | SKU: 210529

    MS5145 Eclipse, SCANNER ONLY: 1D Laser, RS-232 Interface. Color: Gray. Stand and interface cables not included.
  8. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MS5145-41-3 | SKU: 210530

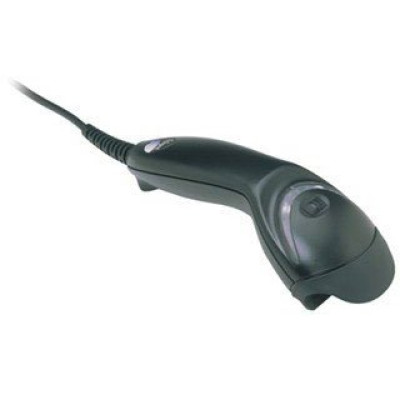

    MS5145 Eclipse, SCANNER ONLY: 1D Laser, RS-232 Interface. Color: Black. Stand and interface cables not included.
  9. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MS5145-47 | SKU: 210531

    MS5145 Eclipse, SCANNER ONLY: 1D Laser, PS/2 Interface. Color: Gray. Stand and interface cables not included.
  10. Metrologic MS5145 Eclipse Barcode Scanner

    Metrologic MS5145 Eclipse Barcode Scanner
    Part #: MS5145-47-3 | SKU: 210532

    MS5145 Eclipse, SCANNER ONLY: 1D Laser, PS/2 Interface. Color: Black. Stand and interface cables not included.
