- Automatic stand detection feature for convenient in-stand scanning
- Captures and transmits sharp images in a variety of outputs: jpg, bmp, tiff
- Firmware update via Flash ROM
- Omnidirectional scanning of all standard 1D, PDF417, MicroPDF, composite, Matrix and Postal Codes
- Precision target sighting - bright laser line for quick and easy aim and shoot performance
- Rugged housing - build for the toughest industrial environments
Metrologic MS1690 Focus Specs
| MS1690 Focus Quick Specs | |
| Depth of Field: (programmable) |
0 mm - 230 mm (0” - 9.0”) for 0.33 mm (13 mil) bar code |
| Field of View: | 49 mm W x 19 mm H (1.9” W x 0.8” H) @ 20 mm (0.8”); 264 mm W x 106 mm H (10.4” W x 4.2” H) @ 280 mm (11.0”) |
| Pitch, Skew: | 15°, 15° |
| Beeper Operation: | 7 tones or no beep |
| Minimum Bar Width: | 0.127 mm (5.0 mil) |
| Dimensions: | 183 mm x 67 mm x 108 mm (2.60” x 2.65” x 4.25”) |
| System Interfaces: | Keyboard Wedge, RS232, Stand Alone Keyboard, USB (low and full speed), IBM |
| Light Source: | LED 645 nm ± 7.5 nm |
| Weight: | 200 g (7.05 oz) |
| Indicators (LED): | Blue = unit powered, ready to scan; White = good read; Yellow = in stand |
-

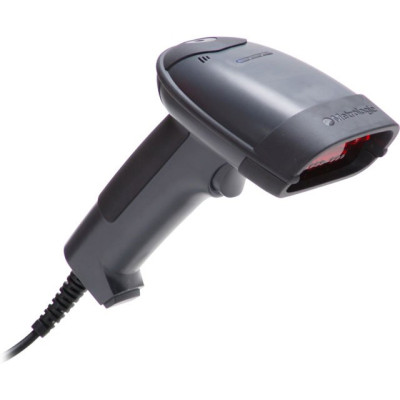

Metrologic MS1690 Focus Barcode Scanner
Part #: MK1690-61B14/MABS | SKU: 28820MS1690 Focus, Units for Central American customers -
Metrologic MS1690 Focus Barcode Scanner
Part #: MK1690-61A47-SP | SKU: 31910MS1690 Focus, Focus Keyboard, No Power supply, ScriptPro -
Metrologic MS1690 Focus Barcode Scanner
Part #: MK1690-61A62-S3750 | SKU: 38431MS1690 Focus, Area Imager (Ruby Verifone with MVC-3MPS-VR3750 Cable) -
Metrologic MS1690 Focus Barcode Scanner
Part #: MK1690-61C47 | SKU: 48862MS1690 Focus, MS1690 Handheld Area Imager (Keyboard wedge, Stand, 220V, Cable, Power supply and Manual) -
Metrologic MS1690 Focus Barcode Scanner
Part #: MS1690-14 | SKU: 48863MS1690 Handheld Area Imager (2D, RS-232, Focus). Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3-FR) or RS-232 Serial cables (Part# 53-53000-3-FR) and a Power supply (Part# 46-00525). -
Metrologic MS1690 Focus Barcode Scanner
Part #: MS1690-38 | SKU: 48864MS1690 Handheld Area Imager (2D, USB, Focus). Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3-FR) or RS-232 Serial cables (Part# 53-53000-3-FR) and a Power supply (Part# 46-00525). -
Metrologic MS1690 Focus Barcode Scanner
Part #: MS1690-47 | SKU: 48865MS1690 Handheld Area Imager (2D, Keyboard wedge, Focus). Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3-FR) or RS-232 Serial cables (Part# 53-53000-3-FR) and a Power supply (Part# 46-00525). -
Metrologic MS1690 Focus Barcode Scanner
Part #: MK1690-61A38-12-A | SKU: 52738Handheld Area Imager, USB HID Keyboard Focus, Loaded with EasyID and No Power supply -
Metrologic MS1690 Focus Barcode Scanner
Part #: MK1690-61A40-12-5 | SKU: 52739MS1690 Focus, Handheld Area Imager, USB IBM OEM Focus, Loaded with EasyID and No Power supply -
Metrologic MS1690 Focus Barcode Scanner
Part #: MK1690-61B41-12 | SKU: 52740MS1690 Focus, Handheld Area Imager, RS-232 Focus, 5V Power supply and Loaded with EasyID
Recommended Accessories for Model: Metrologic MS1690 Focus Barcode Scanner
-
Honeywell Cables Accessory
Part #: 53-53235-N-3 | SKU: HON834089.5' Coiled USB Cable. Type A connector. Color: Black.Price: $28.17 -
Honeywell 1400g Power Device
Part #: 46-00525-6 | SKU: HON453630Power Supply - 90 to 255 AC Input Voltage - 1A Output Current - North American Plug - Works with Select Honeywell ScannersMSRP: $53.99 Price: $43.63 -
Honeywell Cables Accessory
Part #: 53-53000-3 | SKU: HON83333RS232, Black, DB9 female, 2.9 meters (9.5'), coiled, 5V external. <b>See MX009-3MA7S or MX009-3MA7C for USB keyboard emulation or MX009-3MA8S or MX009-3MA8C for USB Serial emulation. Call for details.</b>Price: $23.75 -
Honeywell Cables Accessory
Part #: 53-53002-3 | SKU: HON83337CABLE, KBW, BLACK, 2.9 METERS (9.5'), COILED, 5V EXTERNAL POWERMSRP: $31.78 Price: $31.47 -
Honeywell EasyDL Software
Part #: TF-EASYDL-16XX | SKU: HON84684SOFTWARE LICENSE KEY FOR MS1633 and MS1690 (REVISIONS D AND LATER), DOWNLOAD FROM COMPANY WEBSITEPrice: $152.66
Recommended Warranties for Model: Metrologic MS1690 Focus Barcode Scanner
-
Honeywell Service Contracts Service Contract
Part #: HHSCAN2-REPAIR | SKU: HON402770Flat Rate Repair fee for 4600g/r, 1690, 1900g, 1900c, 1500, 1450g, 1400. This charge is for any required repair not covered by warranty or comprehensive service.Price: $198.20
