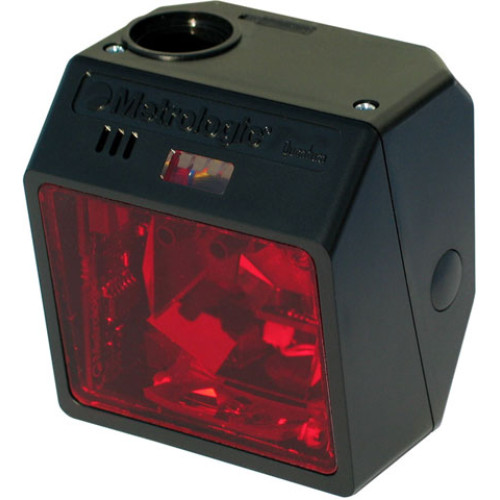

Metrologic IS3480 QuantumE Barcode Scanner
Metrologic Barcode Scanner

Metrologic IS3480 QuantumE Barcode Scanner

Metrologic IS3480 QuantumE Barcode Scanner

QuantumE is a compact, omnidirectional barcode scanner ideal for integration with Original Equipment Manufacturer (OEM) devices.
Discontinued - Need Assistance
See all options
  • Auxiliary connection for external I/O
  • Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded barcodes
  • Easy mounting integration with a unique profile and dual set of mounting holes
  • Flash upgradeable firmware
  • Fully automatic scanning operation
  • OPOS and JPOS system compatible
  • Single-line mode
  • Small form factor
  • Sweet-spot mode for ideal mounting location
  • User-replaceable, single cable interface to host
Metrologic IS3480 QuantumE Specs Metrologic IS3480 QuantumE Specs (pdf)
IS3480 QuantumE Quick Specs
Depth of Field:
 25 mm - 279 mm (1” - 11”) for 0.33 mm (13 mil) bar code at default setting
Width of Field: 38 mm (1.5”) @ 25 mm (1"); 153 mm (6”) @ 279 mm (11”)
Scan Speed: 1650 scan lines per second
Scan Pattern: 5 fields of 4 parallel lines, omnidirectional; or button activated single line
Minimum Bar Width: 0.127 mm (5.0 mil)
Dimensions: 50 mm x 63 mm x 68 mm (1.97” x 2.48” x 2.68”)
System Interfaces: RS232, Light Pen Emulation, Keyboard Wedge, Stand Alone Keyboard, IBM 468x/469X, USB (low speed and full speed), Laser Emulation, OCIA
Light Source: Visible Laser Diode 650 nm
Weight: 170 g (6.0 oz)
Mounting Holes: Five - M2.5 x 0.45 threaded inserts, 4 mm (0.16") maximum depth
Extended Details
Refine Your Options
Shop By
Shopping Options
Manufacturer
  1. Honeywell (5)
Form Factor
  1. Presentation (1)
Scanner Capability
  1. 1D (6)
Ruggedness
  1. General Purpose (4)
Scanner Type
  1. Omnidirectional (11)
  2. Laser (6)
Included Cables
  1. USB (2)
  2. RS-232 Serial (1)
  1. Honeywell Barcode Scanner

    Honeywell Barcode Scanner
    Part #: MK3480-30A40-PS | SKU: HON291039

    IS3480 QUANTUM E, SCANNER, 30A40 PS, KIT, 3480, FS USB, DIR CON, PARATTA P N 315 0018 P00
  2. Honeywell IS3480 QuantumE Barcode Scanner

    Honeywell IS3480 QuantumE Barcode Scanner
    Part #: MK3480-30A38 | SKU: HON20836

    Scanner - Omnidirectional - Single Line - Color: Black - USB Cable - Power Supply Not Included
  3. Metrologic IS3480 QuantumE Barcode Scanner

    Metrologic IS3480 QuantumE Barcode Scanner
    Part #: MK3480-30B41 | SKU: 15207

    Serial Kit - 1D Laser - Omnidirectional and Single Line - RS-232 cable - Power supply
  4. Metrologic IS3480 QuantumE Barcode Scanner

    Metrologic IS3480 QuantumE Barcode Scanner
    Part #: MK3480-30B38 | SKU: 15205

    IS3480 Quantum E Omnidirectional Barcode scanner (OMNI and Single USB Keyboard wedge, Cable, Manual and 110V Power supply)
  5. Metrologic IS3480 QuantumE Barcode Scanner

    Metrologic IS3480 QuantumE Barcode Scanner
    Part #: MK3480-30A41 | SKU: 15203

    IS3480 Quantum E Omnidirectional Barcode scanner (OMNI and Single RS-232-LP, Cable, Manual and No Power supply)
  6. Metrologic IS3480 QuantumE Barcode Scanner

    Metrologic IS3480 QuantumE Barcode Scanner
    Part #: MK3480-30A47 | SKU: 15204

    IS3480 Quantum E Omnidirectional Barcode scanner (OMNI and Single Keyboard wedge, Cable, Manual and No Power supply)
  7. Metrologic IS3480 QuantumE Barcode Scanner

    Metrologic IS3480 QuantumE Barcode Scanner
    Part #: MK3480-30B47 | SKU: 15208

    IS3480 Quantum E Omnidirectional Barcode scanner (OMNI and Single Keyboard wedge, Cable, Manual and 110V Power supply)
  8. Metrologic IS3480 QuantumE Barcode Scanner

    Metrologic IS3480 QuantumE Barcode Scanner
    Part #: MK3480-OEM41 | SKU: 15209

    IS3480 Quantum E Omnidirectional Barcode scanner (OMNI and Single RS-232, Cable, Utility Connection and No Power supply)
  9. Metrologic IS3480 QuantumE Barcode Scanner

    Metrologic IS3480 QuantumE Barcode Scanner
    Part #: MK3480-30A48/SP | SKU: 28822

    IS3480 QuantumE, Custom kit Script Pro 54106C, cable, no power supply
  10. Metrologic IS3480 QuantumE Barcode Scanner

    Metrologic IS3480 QuantumE Barcode Scanner
    Part #: MK3480-30A39 | SKU: 29965

    IS3480 QuantumE, Quantum E Omnidirectional Barcode scanner, OMNI and Single USB, POS, Cables, Manuals and No Power supply

Items 1 to 10 of 16 total

Page:
  1. 1
  2. 2

Recommended Accessories for Model: Metrologic IS3480 QuantumE Barcode Scanner

  • Honeywell MS3580 QuantumT Accessory
    Part #: 46-00289 | SKU: HON28766

    Flex Stand - 6 inch Square Base (15cm) - For the Quantum Series - Item is Non-Cancelable/Non-Returnable
    MSRP: $41.70 Price: $36.93

  • Honeywell MS3580 QuantumT Accessory
    Part #: 46-00288 | SKU: HON31899

    Stand, 3 inch, Square Base, for the Quantum Scanner. Non-Cancelable/Non-Returnable.
    MSRP: $42.10 Price: $37.15

  • Metrologic MS7120 ORBIT Accessory
    Part #: 45-45593 | SKU: 17665

    Power supply (110 Volt) for the 9520, 9540, 7120, 3480 and 3580

  • Metrologic MS7120 ORBIT Accessory
    Part #: 45-45591 | SKU: 17666

    Power supply (220V) for the 9520, 9540, 7120, 3480 and 3580

  • Metrologic MS9520 Voyager Accessory
    Part #: 53-53125A | SKU: 31864

    Powerlink Cable (20 ft. Serial) for the Voyager
