Meru Data Networking
Part #: AP332E | SKU: 215018

Products and parts from Meru.

Meru Data Networking

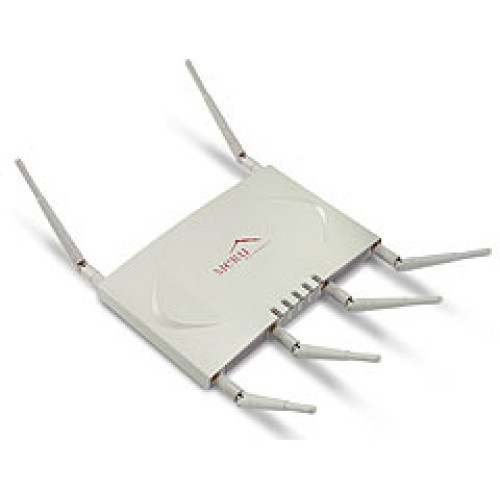

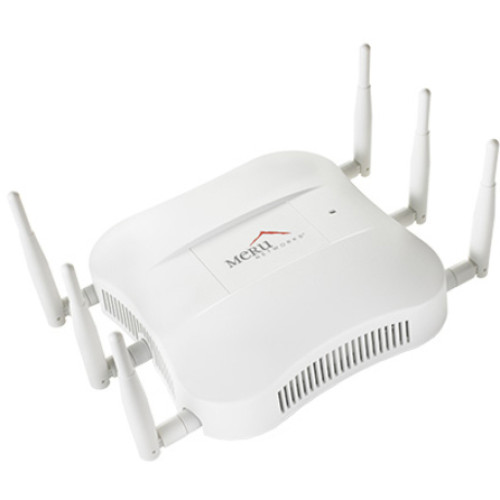

Part Details: Meru AP332e IEEE 802.11n 450 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Wall Mountable, Ceiling Mountable

Need a different version of the Meru Accessory? View all 984 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.40 GHz
UNII Minimum Frequency: 5.15 GHz
Antenna Gain:
- 2 dBi
- 3 dBi
Antenna Type: Omnidirectional Antenna
Total Number of Antennas: 6
Wireless Transmission Speed: 450 Mbps
ISM Maximum Frequency: 2.49 GHz
UNII Maximum Frequency: 5.83 GHz
Antenna Connector: RP-SMA Connector
Features:
- Quality of Service (QoS)
- MIMO Technology
Wireless Security:
- IEEE 802.11i
- WEP
- WPA- PSK
- WPA-TKIP
- WPA2-AES
- IEEE 802.1X
- EAP-TLS
- PEAP
- LEAP
- EAP-FAST
- EAP-SIM
- EAP-AKA
- EAP-MD5

General Information

Product Type: Wireless Access Point
Brand Name: Meru
Manufacturer: Meru Networks
Product Model: AP332e
Product Name: Dual-Radio, Three-Stream 802.11n Wireless Access Point

Physical Characteristics

Height: 2.1"
Width: 6.3"
Depth: 6.3"
Form Factor:
- Wall Mountable
- Ceiling Mountable
Weight (Approximate): 1.50 lb

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
10Gigabit Ethernet Port: No
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
USB: Yes
HDMI: No
VGA: No
Audio Line Out: No
Serial Port: No
Network (RJ-11): No
Powerline: No
Management Port: No

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- REACH
- RoHS
- WEEE
Package Contents:
- Dual-Radio, Three-Stream 802.11n Wireless Access Point
- 3 x Mounting Kits
- Dual-Radio, Three-Stream 802.11n Wireless Access Point
- 3 x Mounting Kits
Certifications & Standards:
- UL2043
- FCC
- EU RGTTE Directive 1995/5/EC
- RS-210
- ICES-003
- VCCI
- ARIB-STD33 8 ST D66
- IEEE Standards:
- 802.11i
- 802.1x
- 802.11a
- 802.11b
- 802.11g
- 802.11n
- 802.3af
- 802.3at

Power Description

Input Voltage: 12 V DC
Power Source: AC Adapter

Management & Protocols

Management: SNMP

Warranty

Limited Warranty: Lifetime
