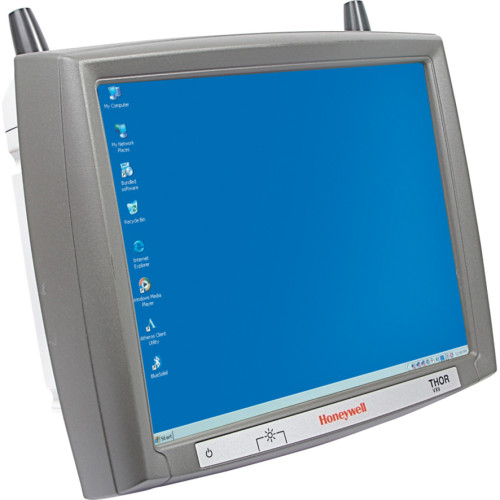

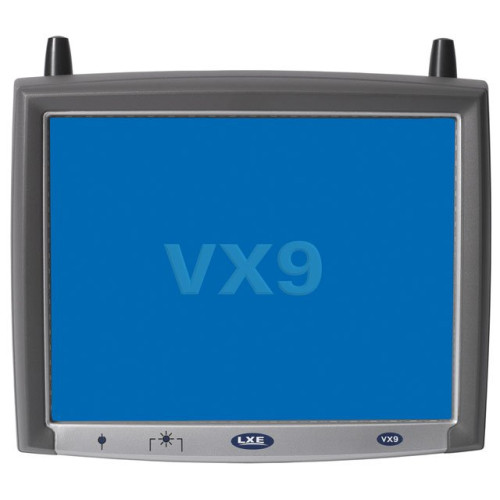

LXE VX9 Forj Data Terminal
Part #: VX9B7RDAGF5A0AUS | SKU: 185696

The Honeywell VX9 computer is a rugged, wirelessly-enabled Windows XP-based mobile PC with a 12.1" touch-screen display. The slim-line VX9 computer, which is available with an XGA display option, is targeted at users that need a larger screen area. Available with WWAN, WLAN and Bluetooth radios, the VX9 computer is suitable for a range of vehicle-mounted applications in challenging deployment environments, including those on fork-lift trucks, container handling machinery, forestry and construction equipment, and emergency service vehicles.

LXE VX9 Forj Data Terminal

Part Details: Vehicle Mounted Computer - Wi-Fi (802.11a/b/g/n) - Windows 7 - 12.1 Display - 2GB RAM - 80GB Flash - Indoor - No Keyboard - Cables and Charging Cradle Not Included

Need a different version of the LXE VX9 Forj Data Terminal? View all 192 configurations

Additional Information

Display Size	12.1 inch
Form Factor	No
Keyboard	None
Manufacturer	No
Model Name	VX9 Forj
Network Connectivity	No
Operating System	No
Product Condition	No
RAM Memory	2GB

VX9 Forj Specs (pdf)

General Information

Product Type: Vehicle Mount Terminal
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: VX9
Product Name: Thor VX9 Vehicle-Mount Computer
Product Line: Thor

Technical Information

Connectivity Technology: Wireless

Physical Characteristics

Height: 9.8"
Width: 12.2"
Depth: 3.5"
Weight (Approximate): 8.16 lb

Interfaces/Ports

Interfaces/Ports:
- 1 x PS/2 Mouse
- 1 x PS/2 Keyboard
- 2 x Serial
- 1 x USB 2.0 USB
- 1 x RJ-45 Network
- 1 x Audio
- 1 x Microphone In

Network & Communication

Antenna Form Factor: External
Wireless LAN Standard: IEEE 802.11a/b/g/n
Wireless Security:
- 802.1X (EAP)
- EAP-TLS
- PEAP-MSCHAPv2
- PEAPGTC
- LEAP
- EAP-FAST
- 8 to 63 ASCII
- 64 Hexadecimal Character Passphrases
- WEP
- WPA (TKIP)
- WPA2 (AES)
- CCKM
- 802.1X (EAP)
- EAP-TLS
- PEAP-MSCHAPv2
- PEAPGTC
- LEAP
- EAP-FAST
- 8 to 63 ASCII
- 64 Hexadecimal Character Passphrases
- WEP
- WPA (TKIP)
- WPA2 (AES)
- CCKM
Wireless Technology: Wi-Fi

Display & Graphics

Touchscreen: Yes
Display Screen Type: LCD
Display Color: Color
Screen Size: 12.1"
Graphics Modes: XGA
Display Resolution: 1024 x 768

Other

Certifications & Standards:
- IP54
- IEC 60068-2-64
- IEC 60068-2-29
- CE

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 1.60 GHz
Processor Type: Atom

Software

Operating System: Windows 7 Professional

Storage

Hard Drive Capacity: 80 GB

Memory

Standard Memory: 2 GB

Warranty

Limited Warranty: 1 Year

Built-in Devices

Built-in Devices: Bluetooth
