LXE Spare Parts
LXE Mobile Handheld Computer & Barcode Scanner

LXE Spare Parts
Part #: AIR-AP1231G-A-K9 | SKU: 32888

Products and parts from LXE.

LXE Spare Parts

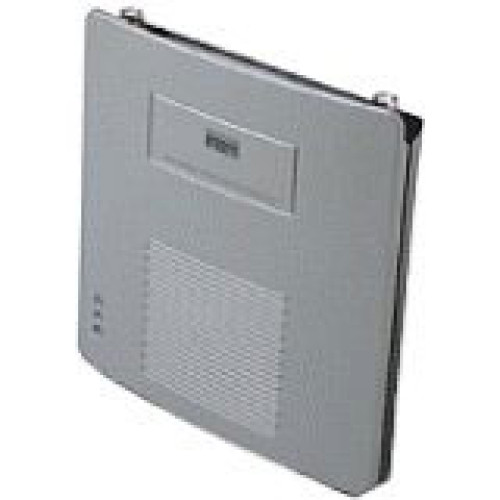

Part Details: 802.11 b/g Access Point 2.4GHz, Dual Connectors
Need a different version of the LXE Accessory? View all 432 configurations

Additional Information

Manufacturer No
Model Name Parts
Product Condition No

Technical Information

  • Wireless Technology: IEEE 802.11b/g
  • Frequency Band/Bandwidth: 2.4GHz
  • Frequency Band/Bandwidth Details: 2.412 to 2.462GHz IEEE 802.11b/g FCC North America
  • Antenna Range:
    • 90' @ 54 Mbps Indoor IEEE 802.11g
    • 95' @ 48 Mbps Indoor IEEE 802.11g
    • 100' @ 36 Mbps Indoor IEEE 802.11g
    • 140' @ 24 Mbps Indoor IEEE 802.11g
    • 180' @ 18 Mbps Indoor IEEE 802.11g
    • 210' @ 12 Mbps Indoor IEEE 802.11g
    • 220' @ 11Mbps Indoor IEEE 802.11b
    • 250' @ 9 Mbps Indoor IEEE 802.11g
    • 300' @ 6 Mbps Indoor IEEE 802.11g
    • 310' @ 5.5Mbps Indoor IEEE 802.11b
    • 350' @ 2 Mbps Indoor IEEE 802.11b
    • 410' @ 1 Mbps Indoor IEEE 802.11b
    • 110' @ 54 Mbps Outdoors IEEE 802.11g
    • 200' @ 48 Mbps Outdoors IEEE 802.11g
    • 225' @ 36 Mbps Outdoors IEEE 802.11g
    • 325' @ 24 Mbps Outdoors IEEE 802.11g
    • 400' @ 18 Mbps Outdoors IEEE 802.11g
    • 475' @ 12 Mbps Outdoors IEEE 802.11g
    • 490' @ 11Mbps Outdoors IEEE 802.11b
    • 550' @ 9 Mbps Outdoors IEEE 802.11g
    • 650' @ 6 Mbps Outdoors IEEE 802.11g
    • 660' @ 5.5Mbps Outdoors IEEE 802.11b
    • 690' @ 2 Mbps Outdoors IEEE 802.11b
    • 700' @ 1 Mbps Outdoors IEEE 802.11b
  • Transmission Speed:
    • 54Mbps Auto-fallback IEEE 802.11g
    • 48Mbps Auto-fallback IEEE 802.11g
    • 36Mbps Auto-fallback IEEE 802.11g
    • 24Mbps Auto-fallback IEEE 802.11g
    • 18Mbps Auto-fallback IEEE 802.11g
    • 12Mbps Auto-fallback IEEE 802.11g
    • 9Mbps Auto-fallback IEEE 802.11g
    • 6Mbps IEEE 802.11g
    • 11Mbps Auto-fallback IEEE 802.11b
    • 5.5Mbps Auto-fallback IEEE 802.11b
    • 2Mbps Auto-fallback IEEE 802.11b
    • 1Mbps IEEE 802.11b
  • Channels:
    • 11 Channel(s)Operating IEEE 802.11b/g North America
    • 3 Channel(s)Nonoverlapping IEEE 802.11b/g
  • Transmit Power:
    • 20dBm IEEE 802.11b
    • 17dBm IEEE 802.11b
    • 15dBm IEEE 802.11b
    • 13dBm IEEE 802.11b
    • 10dBm IEEE 802.11b
    • 7dBm IEEE 802.11b
    • 0dBm IEEE 802.11b
    • 15dBm IEEE 802.11g
    • 13dBm IEEE 802.11g
    • 10dBm IEEE 802.11g
    • 7dBm IEEE 802.11g
    • -1dBm IEEE 802.11g
  • Receiver Sensitivity:
    • -90 dBm Typical @ 6Mbps IEEE 802.11g
    • -84 dBm Typical @ 9Mbps IEEE 802.11g
    • -82 dBm Typical @ 12Mbps IEEE 802.11g
    • -80 dBm Typical @ 18Mbps IEEE 802.11g
    • -77 dBm Typical @ 24Mbps IEEE 802.11g
    • -73 dBm Typical @ 36Mbps IEEE 802.11g
    • -72 dBm Typical @ 48Mbps IEEE 802.11g
    • -72 dBm Typical @ 54Mbps IEEE 802.11g
  • Wireless Security:
    • 802.1X support, including Cisco LEAP, EAP-Flexible Authentication via Secure Tunneling (EAP-FAST), Protected EAP- Generic Token Card (PEAP-GTC), PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAPv2), EAP-Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and EAP-Subscriber Identity Module (EAP-SIM) to yield mutual authentication and dynamic, per-user, per-session encryption keys (WPA and WPA2)
    • MAC address and standard 802.11 authentication mechanisms
    • AES-CCMP encryption (WPA2)
    • TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via Cisco TKIP or WPA TKIP
    • Support for static and dynamic IEEE 802.11 WEP keys of 40 and 128 bits
  • Modulation:
    • (DSSS) Direct Sequence-Spread Spectrum
    • OFDM
  • Maximum RF Data Rate Supported: 54 Mbps
  • Point-to-Point Wireless Bridging: Yes

General Information

Physical Characteristics

  • Dimensions:
    • 1.660" (42mm) x 6.562" (167mm) x 7.232" (184mm)
    • 1.660" (42mm) x 6.562" (167mm) x x 7.232" (184mm)
  • Weight: 1.725 lb (0.78 kg)

Agency Approvals

  • Agency Approvals:
    • IEEE 802.11b
    • IEEE 802.11g
    • Wi-Fi
    • FCC Bulletin OET-65C
    • RSS-102
    • UL 60950
    • UL 2043
    • CAN/CSA C22.2 No. 60950
    • IEC 60950
    • FCC Part 15.247
    • RSS-210 (Canada)
    • EN 300.328
    • ARIB-STD 33 (Japan)
    • ARIB-STD 66 (Japan)
    • AS/NZS 4268:2003 (Australia and New Zealand)
    • FCC Part 15.107 and 15.109
    • ICES-003 (Canada)
    • VCCI (Japan)
    • EN 301.489-1 and -17 (Europe)
    • 802.11i
    • WPA2
    • WPA
    • 802.1X
    • AES
    • TKIP

Other

  • Power Options:
    • POE
    • Local Power
  • Additional Information:
    • Regulatory Domains: FCC
    • 2 x RP-TNC Connectors
    • Uplink: Autosensing 802.3 10/100 Base-T Ethernet
    • Cisco IOS Software
    • Avail Cardbus Slot
    • Processor: IBM PowerPC405 (200 MHz)
    • 90 to 240 VAC ±10 percent (power supply)
    • 48 VDC ±10 percent
    • 16 MB RAM
    • 8 MB Flash memory
    • Ethernet activity and status
    • Device operating status
    • Radio activity and status

Environmental Conditions

  • Temperature: -20°C (-4°F) to 50°C (122°F)
  • Humidity: 10 to 90% Non-condensing

Warranty

  • Manufacturer Warranty: 1 Year(s)
