Logic Controls TD3000 Series Customer Display Logic Controls TD3000 Series Customer Display Logic Controls TD3000 Series Customer Display
Logic Controls Cash Drawer & Customer Pole Display

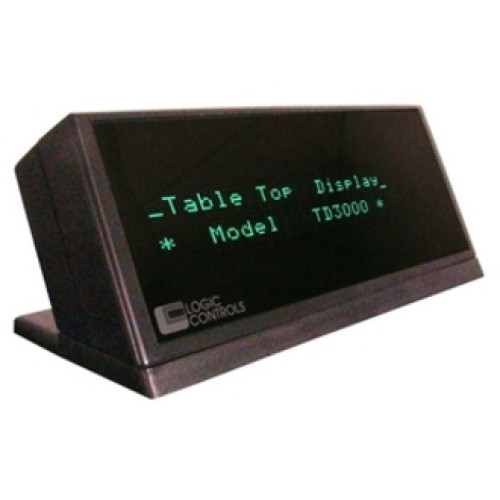

Logic Controls TD3000 Series Customer Display
Part #: TD3000UP-BK | SKU: 61484

Logic Controls customer displays are widely known as the market leaders for PC-based POS systems. They have long set the standard for reliability, value and functionality reasons why most value-added resellers ask for Logic Controls displays by name. One of the reasons why Logic Controls pole displays are the market leaders is because of their well deserved reputation for unsurpassed reliability. The TD3000 uses special display technology and unique circuit design to achieve this reliability. The TD3000 is a 2x20 line 5mm character height table top display that comes with much functionality that simply is not found in other vendors displays. Smart scrolling, vertical scrolling, and a built-in real-time clock are all standard features of the unit's firmware. The TD3000 comes with a wide variety of interfaces, can emulate many popular command sets, and has better visibility due to an optically matched lens and wider character pitch. Best of all, this premium pole display is also one of the most affordable on the market.

Logic Controls TD3000 Series Customer Display

Part Details: Logic Controls TD3000UP Table Top Display - Green Blue - VFD - Powered USB - Black
Need a different version of the Logic Controls TD3000 Series Customer Display? View all 25 configurations

Additional Information

Color No
Display Type No
Form Factor No
Interface No
Manufacturer No
Model Name TD3000 Series
Number of Characters No
Product Condition No
TD3000 Series Specs TD3000 Series Specs (pdf)

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Blue-green
  • Number of Characters: 20x2
  • Brightness: 690 cd/m2
  • Character Font: 5 x 7 Dot Matrix
  • Character Type: ASCII
  • Character Size: 3.5mm x 5.0mm
  • Character Pitch: 5.0 mm
  • Reliability: 300000 Hour(s) MTBF
  • Command Set: Logic Controls
  • Interfaces/Ports:
    • Power USB
    • Serial
  • Input Voltage: 120 V AC

General Information

Physical Characteristics

  • Dimensions:
    • 3.17" (81mm) x 7.87" (200mm) x 3.38" (86mm)
    • 3.17" (81mm) x 7.87" (200mm) x x 3.38" (86mm)
  • Weight: 1.40 lb (0.64 kg) - With Adapter
  • Color: Black

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity:
    • 85% Operating Non-condensing
    • 90% Non-operating Non-condensing

Other

  • Package Contents:
    • TD3000UP-BK Table Display
    • Power Adapter
    • Quick Installation Guide

Agency Approvals

  • Agency Approvals:
    • FCC Part 15 - Class A
    • CE

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
