Logic Controls PD6500 Series Customer Display Logic Controls PD6500 Series Customer Display
Logic Controls Cash Drawer & Customer Pole Display

Logic Controls PD6500 Series Customer Display
Part #: PD6500-BG | SKU: 90171

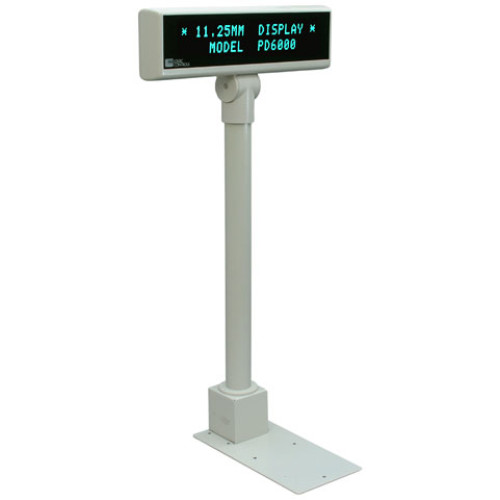

The PD6000 is a 2-line 20-character Pole Display that solve the classic "I wish I had an extra I-O port" problem by using our data pass-through data capabilities. Logic Controls' data pass-through process allows connection of multiple pole displays cash drawers printers and other devices to a single output port. In the pass through mode a pole display monitors the incoming data then decides to display the data or pass it to the next down-stream device. Bright blue - green vacuum fluorescent characters are enhanced with an optical filter for better contrast and easier viewing. All standard Displays support moving sign advertisements during periods of inactivity with a single message download eliminating constant application software refreshing.

Logic Controls PD6500 Series Customer Display

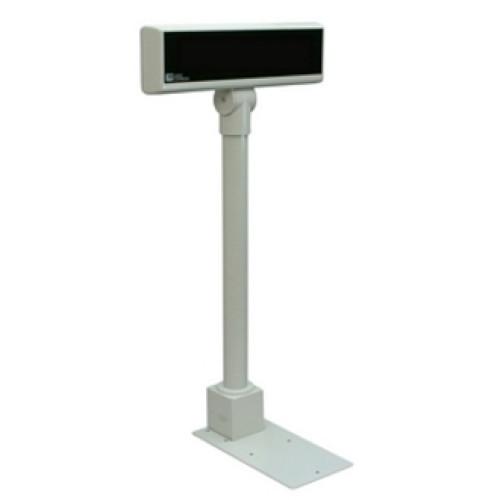

Part Details: Logic Controls PD6500 Pole Display - Green - VFD - Serial - Beige
Need a different version of the Logic Controls PD6500 Series Customer Display? View all 10 configurations

Additional Information

Manufacturer No
Model Name PD6500 Series
Product Condition No
PD6500 Series Specs PD6500 Series Specs (pdf)

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Green
  • Number of Characters: 20x2
  • Brightness: 700 cd/m2
  • Character Font: 5 x 7 Dot Matrix
  • Character Type: ASCII
  • Character Size: 0.28" x 0.44"
  • Reliability: 300000 Hour(s) MTBF
  • Command Set: UTC
  • Interfaces/Ports: RS-232
  • Connectors: DB-9 Female Connector
  • Input Voltage: 120 V AC - to Adapter

General Information

Physical Characteristics

  • Dimensions:
    • 3.24" (82mm) x 11" (279mm) x 1.72" (44mm) - Fluorescent Display
    • 2" (51mm) x 2.12" (54mm) x 2.25" (57mm) - Rectangular Base
    • 0.9" (23mm) x 4" (102mm) x 8" (203mm) - Base Plate
  • Weight: 3.1 lb (1.41 kg)
  • Color: Beige

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 70°C (158°F) Operating
    • -40°C (-40°F) to 85°C (185°F) Storage
  • Humidity:
    • 85% Operating Non-condensing
    • 90% Non-operating Non-condensing

Other

  • Package Contents: PD6500 Pole Display Mounting Plate Power Adapter 6' Cable
