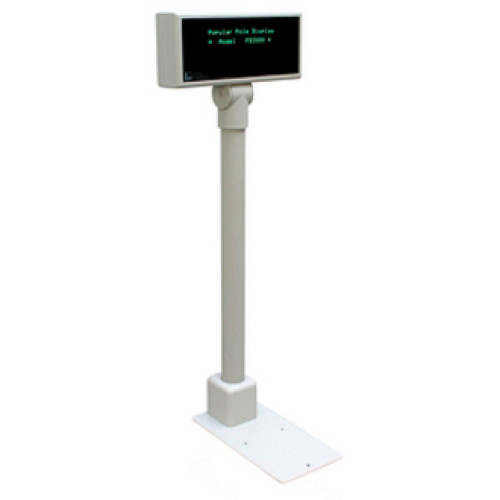

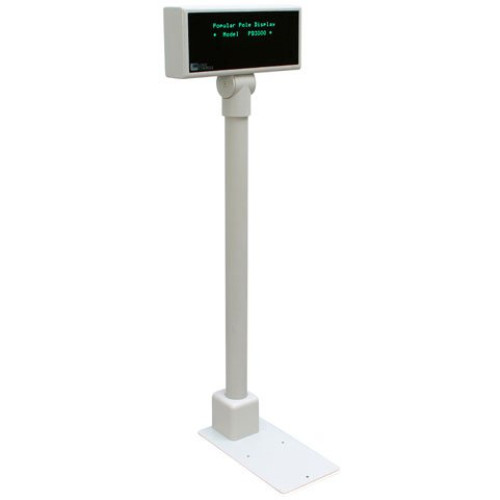

Logic Controls PD3900 Series Customer Display Logic Controls PD3900 Series Customer Display
Logic Controls Cash Drawer & Customer Pole Display

Logic Controls PD3900 Series Customer Display
Part #: PD3900U | SKU: 16041

The PD3000 is a two line twenty character pole display that solve the classic I wish I had an extra I-O port problem by using our data pass-through data capabilities. Logic Controls' data pass-through process allows connection of multiple pole displays cash drawers printers and other devices to a single output port. In the pass through mode a pole display monitors the incoming data then decides to display the data or pass it to the next down-stream device. Bright blue - green vacuum fluorescent characters are enhanced with an optical filter for better contrast and easier viewing. All standard displays support moving sign advertisements during periods of inactivity with a single message download eliminating constant application software refreshing.

Logic Controls PD3900 Series Customer Display

Part Details: PD3900 Pole Display (5 mm, 2 Line x 20 Character Display, USB Interface and OPOS Command Set)
Need a different version of the Logic Controls PD3900 Series Customer Display? View all 16 configurations

Additional Information

Manufacturer No
Model Name PD3900 Series
Product Condition No
PD3900 Series Specs PD3900 Series Specs (pdf)

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Green
  • Number of Characters: 20x2
  • Brightness: 690 cd/m2
  • Character Font: 5 x 7 Dot Matrix
  • Character Type: ASCII
  • Character Size: 3.5mm x 5.0mm
  • Character Pitch: 5.0 mm
  • Reliability: 300000 Hour(s) MTBF
  • Command Set:
    • Logic Controls
    • OPOS
    • JPOS
  • Interfaces/Ports: USB
  • Input Voltage: 6 V AC
  • Input Voltage Range: 120 V AC

General Information

Physical Characteristics

  • Dimensions:
    • 3.37" (86mm) x 7.87" (200mm) x 1.75" (44mm) - Fluorescent Display
    • 2.00" (51mm) x 2.12" (54mm) x 2.25" (57mm) - Rectangular Base
    • 0.90" (23mm) x 4.00" (102mm) x 8.00" (203mm) - Base Plate
  • Weight: 2.7 lb (1.22 kg)
  • Color: Beige

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity:
    • 85% Operating Non-condensing
    • 90% Non-operating Non-condensing

Agency Approvals

  • Agency Approvals:
    • FCC Part 15 - Class A
    • CE

Other

  • Package Contents:
    • PD3900 Pole Display
    • Power Adapter

Warranty

  • Manufacturer Warranty: 1 Year(s)
Extended Details

Recommended Accessories for Model: Logic Controls PD3900 Series Customer Display
