Logic Controls PD3500 Series Customer Display Logic Controls PD3500 Series Customer Display
Logic Controls Cash Drawer & Customer Pole Display

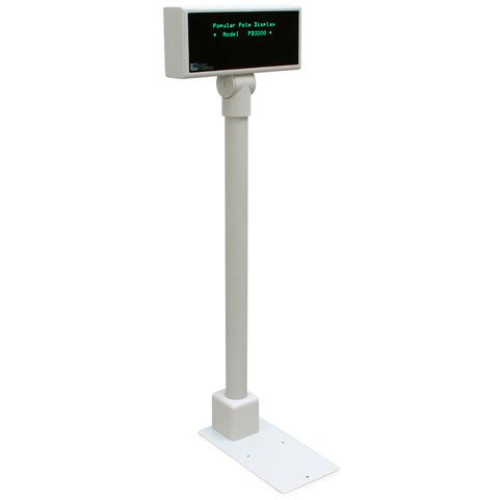

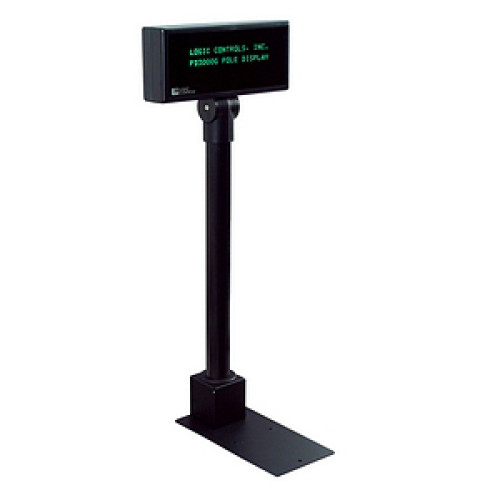

Logic Controls PD3500 Series Customer Display
Part #: PD3590-BK | SKU: 61466

The PD3000 is a two line twenty character pole display that solve the classic "I wish I had an extra I-O port" problem by using our data pass-through data capabilities. Logic Controls' data pass-through process allows connection of multiple pole displays cash drawers printers and other devices to a single output port. In the pass through mode a pole display monitors the incoming data then decides to display the data or pass it to the next down-stream device. Bright blue - green vacuum fluorescent characters are enhanced with an optical filter for better contrast and easier viewing. All standard displays support moving sign advertisements during periods of inactivity with a single message download eliminating constant application software refreshing.

Logic Controls PD3500 Series Customer Display

Part Details: Logic Controls PD3590 Pole Display - Green - VFD - Parallel - Black
Need a different version of the Logic Controls PD3500 Series Customer Display? View all 14 configurations
MSRP: $330.75 Price: $264.53

Additional Information

Manufacturer No
Model Name PD3500 Series
Product Condition No
PD3500 Series Specs PD3500 Series Specs (pdf)

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Green
  • Number of Characters: 20x2
  • Brightness: 690 cd/m2
  • Character Font: 5 x 7 Dot Matrix
  • Character Type: ASCII
  • Character Size: 3.5mm x 5.0mm
  • Character Pitch: 5 mm
  • Reliability: 300000 Hour(s) MTBF
  • Command Set: UTC
  • Interfaces/Ports: Parallel
  • Connectors: DB-25 Male Connector
  • Input Voltage: 120 V AC

General Information

Physical Characteristics

  • Dimensions:
    • 3.37" (86mm) x 7.87" (200mm) x 1.75" (44mm) - Fluorescent Display
    • 2.00" (51mm) x 2.12" (54mm) x 2.25" (57mm) - Rectangular Base
    • 0.90" (23mm) x 4.00" (102mm) x 8.00" (203mm) - Base Plate
    • 3.37" (86mm) x 7.87" (200mm) x x 1.75" (44mm) - Fluorescent Display
    • 2.00" (51mm) x 2.12" (54mm) x x 2.25" (57mm) - Rectangular Base
    • 0.90" (23mm) x 4.00" (102mm) x x 8.00" (203mm) - Base Plate
  • Weight: 2.7 lb (1.22 kg)
  • Color: Black

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity:
    • 85% Operating Non-condensing
    • 90% Non-operating Non-condensing

Other

  • Package Contents:
    • PD3590-BK Pole Display
    • Power Adapter
    • Mounting Plate
    • Quick Installation Guide

Agency Approvals

  • Agency Approvals:
    • FCC Part 15 - Class A
    • CE

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
