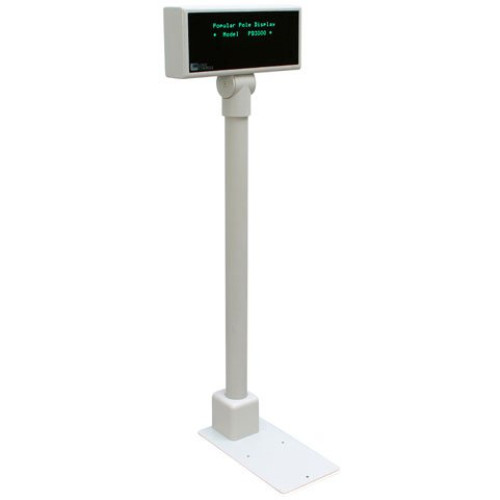

Logic Controls PD3200 Series Customer Display Logic Controls PD3200 Series Customer Display
Logic Controls Cash Drawer & Customer Pole Display

Logic Controls PD3200 Series Customer Display
Part #: PD3200 | SKU: 1467

The PD3000 is a two line twenty character pole display that solve the classic "I wish I had an extra I-O port" problem by using our data pass-through data capabilities. Logic Controls' data pass-through process allows connection of multiple pole displays cash drawers printers and other devices to a single output port. In the pass through mode a pole display monitors the incoming data then decides to display the data or pass it to the next down-stream device. Bright blue - green vacuum fluorescent characters are enhanced with an optical filter for better contrast and easier viewing. All standard displays support moving sign advertisements during periods of inactivity with a single message download eliminating constant application software refreshing.

Logic Controls PD3200 Series Customer Display

Part Details: PD3000 Pole Display (2 x 20 Display with RS232 Interface and DB9F-DB25M Dual Connector)
Need a different version of the Logic Controls PD3200 Series Customer Display? View all 12 configurations
Price: $174.00

Additional Information

Manufacturer No
Model Name PD3200 Series
Product Condition No
PD3200 Series Specs PD3200 Series Specs (pdf)

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Green
  • Number of Characters: 20x2
  • Brightness: 690 cd/m2
  • Character Font: 5 x 7 Dot Matrix
  • Character Type: ASCII
  • Character Size: 3.5mm x 5.0mm
  • Character Pitch: 5 mm
  • Reliability: 300000 Hour(s) MTBF
  • Command Set: AEDEX
  • Interfaces/Ports: RS-232
  • Connectors: DB-9 Female Connector
  • Input Voltage: 6 V AC

General Information

Physical Characteristics

  • Dimensions:
    • 3.37" (86mm) x 7.87" (200mm) x 1.75" (44mm) - Fluorscent Display
    • 2.00" (51mm) x 2.12" (54mm) x 2.25" (57mm) - Rectangular Base
    • 0.90" (23mm) x 4.00" (102mm) x 8.00" (203mm) - Base Plate
  • Weight: 2.7 lb (1.22 kg)
  • Color: Beige

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity:
    • 85% Operating
    • 90% Non-operating

Agency Approvals

  • Agency Approvals: FCC Class A

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
