Logic Controls MR1000 Credit Card Reader
Logic Controls Cash Drawer & Customer Pole Display

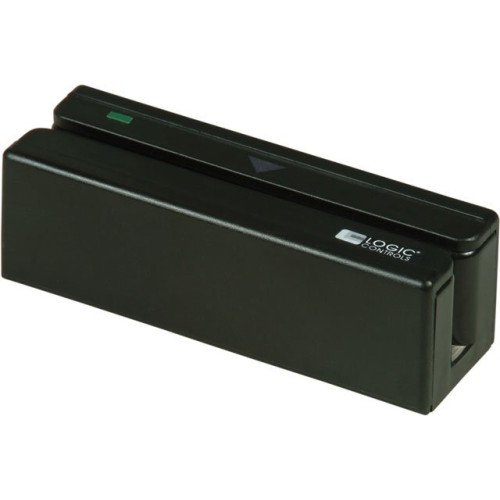

Logic Controls MR1000 Credit Card Reader
Part #: MR1300RSP-BK | SKU: 20987

The MR1000 Series MSR is easily programmable through the programming utility's intuitive graphical user interface. By simply clicking on buttons and entering parameters, an integrator can easily set up the MR1000 for use with a minimal investment in time and training. It is easy to enable/disable tracks, change start and stop sentinels, and add prefixes, field terminators and suffixes. A built-in decoder reads all combinations of tracks 1, 2 and 3. The MR1000 Series MSR also supports a wide range of reading speeds and includes special firmware to avoid transmission errors due to bus contention.

Logic Controls MR1000 Credit Card Reader

Part Details: MR1000, RS-232 interface powered by USB port, Tracks 1, 2 & 3 Enabled, Fully Programmable. Color: Black
Need a different version of the Logic Controls MR1000 Credit Card Reader? View all 17 configurations

Additional Information

Manufacturer No
Model Name MR1000
Product Condition No
MR1000 Specs MR1000 Specs (pdf)

Technical Information

  • Magnetic Stripe Track Configuration: Triple Track
  • Minimum Swipe Speed: 4 in/s
  • Maximum Swipe Speed: 47 in/s
  • Magnetic Stripe Track Number:
    • Track 3
    • Track 2
    • Track 1
  • Number of Read Heads: 2
  • Magnetic Head Life: 1000000 Swipe

General Information

  • Product Type: Magnetic Stripe Reader
  • Product Series: MR1000
  • Brand Name: Logic Controls
  • Manufacturer: Bematech
  • Product Model: MR1300
  • Product Name: MR1300 Magnetic Stripe Reader

Physical Characteristics

  • Height: 1.2"
  • Width: 1.3"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Interfaces/Ports:
    • RS-232C Serial
    • USB

Other

  • Additional Information:
    • Operates with or without keyboard attached
    • Avoids transmission errors due to bus contention
    • Built-in decoder reads all combinations of tracks 1, 2 and 3
    • Stainless steel card guide for extra smooth swipe
    • Bi-directional reading head that lasts > 1 million swipes
    • Two color LED and programmable beep indicate good/bad read

Environmental Conditions

  • Humidity:
    • 10% to 95% Non-condensing Relative Humidity Operating
    • 10% to 95% Non-condensing Relative Humidity Non-operating
  • Temperature:
    • 14°F (-10°C) to 131°F (55°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage

Power Description

  • Input Voltage: 5 V DC

Warranty

  • Limited Warranty: 2 Year
Extended Details
