Logic Controls Cash Drawer & Customer Pole Display

Logic Controls LK1600 Keyboards
Part #: LK1600MU-BK | SKU: 61429

The keys can be programmed with multiple shift levels to further increase the number of effective programmable keys, and a key lock switch is used to select the program layer � e.g., manager override, department 1, department 2, LK1600 programmable keyboard is thus an ideal solution for the retail, hospitality, travel, banking, and insurance industries

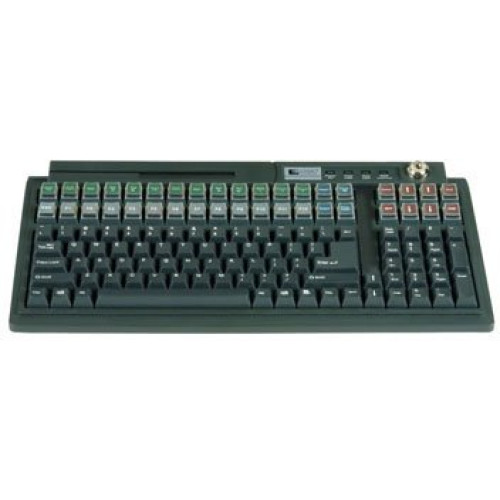

Logic Controls LK1600 Keyboards

Part Details: LK1600, Programmable Keyboard (120 key, USB Interface and MSR) - Color: Black

Need a different version of the Logic Controls LK1600 Keyboards? View all 15 configurations

Additional Information

Manufacturer	No
Model Name	LK1600
Product Condition	No

LK1600 Specs (pdf)

General Information

Manufacturer:
- Logic Controls
- Bematech
Product Name:
- LK1600U-M POS Keyboard
- LK1600MU-BK POS Keyboard
Product Type: POS Keyboard
Brand Name: Logic Controls
Product Model: LK1600MU-BK

Technical Information

Keyboard Layout: Alphanumeric
Programmable Keys: 120
Programmable Functions Keys: 55
Reliability: 50 million cycles/key
Interfaces/Ports: USB
Keyboard Type: Switch
Relegendable Keys: 38

Physical Characteristics

Dimensions: 50mm (2") x 405mm (16") x x 214mm (8")
Weight: 3 lb (1.36 kg)
Color:
- Black
- Black
Height: 2"
Width: 15.9"
Depth: 8.4"
Weight (Approximate): 3 lb

Included Features

Included Features: Magnetic Stripe Reader (2 tracks)

Interfaces/Ports

Keyboard/Keypad Host Interface: USB

Other

Package Contents:
- LK1600U-M POS Keyboard Cable Daisy Chain Ports Manual Utility Software
- LK1600MU-BK POS Keyboard
- PS/2 Interface Cable
- Manual
- CDROM
- LK1600MU-BK POS Keyboard
- PS/2 Interface Cable
- Manual
- CDROM

Keyboard/Keypad

Total Number of Keys: 120
Number of Programmable Keys: 120
Number of Relegendable Keys: 38
Keyswitch Technology: Switch
Keyboard/Keypad Features:
- Key Lock
- Daisy Chain Socket

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity:
- 85% Operating Non-condensing
- 90% Non-operating Non-condensing

Warranty

Manufacturer Warranty: 1 Year(s) Limited
Limited Warranty: 1 Year

Built-in Devices

Built-in Devices: Magnetic Stripe Reader

Reliability

Keystroke Life: 50 Million Cycle
