Logic Controls LD9000 Series Customer Display Logic Controls LD9000 Series Customer Display
Logic Controls Cash Drawer & Customer Pole Display

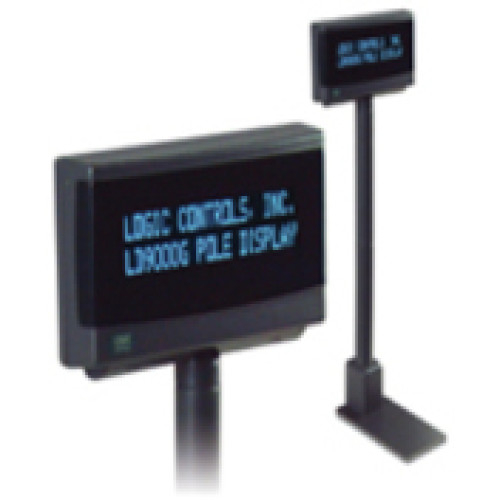

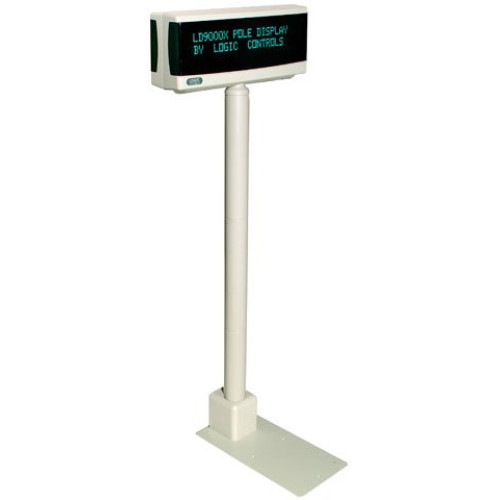

Logic Controls LD9000 Series Customer Display
Part #: LD9000UP-GY | SKU: 25451

The LD9000 is a two line twenty character pole display that solve the classic I wish I had an extra I-O port problem by using our data pass-through data capabilities. Bright blue-green vacuum fluorescent characters are enhanced with an optical filter for better contrast and easier viewing. All standard displays support moving sign advertisements with smart scrolling during periods of inactivity with a single message download eliminating constant application software refreshing. Double side models available. Each side displays the same or different messages.

Logic Controls LD9000 Series Customer Display

Part Details: LD9000 Pole Display (9.5mm, Single-Sided, 2-Line x 20-Character Display, USB, Port Powered and Logic Controls Command Set) - Color: Dark Gray
Need a different version of the Logic Controls LD9000 Series Customer Display? View all 34 configurations

Additional Information

Color No
Display Type No
Form Factor No
Interface No
Manufacturer No
Model Name LD9000 Series
Number of Characters No
Product Condition No
LD9000 Series Specs LD9000 Series Specs (pdf)

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Blue-green
  • Number of Characters: 20x2
  • Brightness: 900 cd/m2
  • Character Font: 5 x 7 Dot Matrix
  • Character Type: ASCII
  • Character Size: 6.2mm x 9.5mm
  • Character Pitch: 7.7 mm
  • Reliability: 300000 Hour(s) MTBF
  • Command Set: Logic Controls
  • Interfaces/Ports:
    • Power USB
    • Serial
  • Input Voltage: 120 V AC

General Information

Physical Characteristics

  • Dimensions:
    • 3.37" (86mm) x 8.50" (216mm) x 1.75" (44mm) - Fluorescent Display
    • 2.25" (57mm) x 2.12" (54mm) x 2.12" (54mm) - Rectangular Base
    • 0.90" (23mm) x 4.00" (102mm) x 8.00" (203mm) - Base Plate
    • 3.37" (86mm) x 8.50" (216mm) x x 1.75" (44mm) - Fluorescent Display
    • 2.25" (57mm) x 2.12" (54mm) x x 2.12" (54mm) - Rectangular Base
    • 0.90" (23mm) x 4.00" (102mm) x x 8.00" (203mm) - Base Plate
  • Weight: 2.7 lb (1.22 kg)
  • Color: Gray

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity:
    • 85% Operating Non-condensing
    • 90% Non-operating Non-condensing

Other

  • Package Contents:
    • LD9000UP-GY Pole Display
    • Power Adapter
    • Mounting Plate
    • Quick Installation Guide

Agency Approvals

  • Agency Approvals: FCC Part 15 - Class A

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
