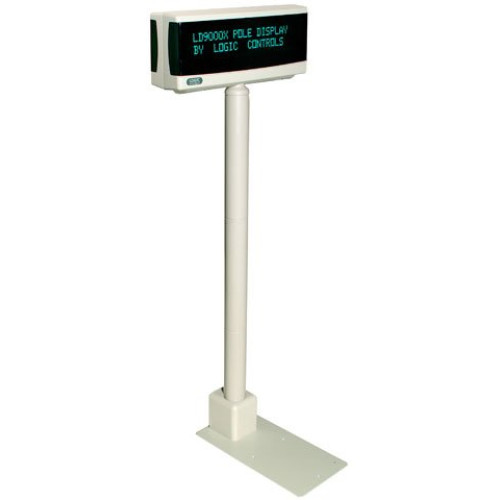

Logic Controls LD9000 Series Customer Display
Part #: LD9000-GY | SKU: 25448

The LD9000 is a two line twenty character pole display that solve the classic I wish I had an extra I-O port problem by using our data pass-through data capabilities. Bright blue-green vacuum fluorescent characters are enhanced with an optical filter for better contrast and easier viewing. All standard displays support moving sign advertisements with smart scrolling during periods of inactivity with a single message download eliminating constant application software refreshing. Double side models available. Each side displays the same or different messages.

Logic Controls LD9000 Series Customer Display

Part Details: LD9000 Pole Display (9.5mm, 2-Line x 20-Character, Single-Sided, RS232 Interface, DB9 Female Connector with Logic Command Set) - Color: Dark Gray

Need a different version of the Logic Controls LD9000 Series Customer Display? View all 34 configurations

Additional Information

Color	No
Display Type	No
Form Factor	No
Interface	RS-232 Serial
Manufacturer	No
Model Name	LD9000 Series
Number of Characters	No
Product Condition	No

LD9000 Series Specs (pdf)

Technical Information

Display Method: Vacuum Fluorescent Display (VFD)
Display Color: Blue-green
Number of Characters: 20x2
Brightness: 900 cd/m2
Character Font: 5 x 7 Dot Matrix
Character Type: ASCII
Character Size: 0.24" x 0.37"
Character Pitch: 0.30 mm
Reliability: 300000 Hour(s) MTBF
Command Set: Logic Controls
Interfaces/Ports: RS-232
Connectors: DB-9 Female Connector
Input Voltage: 120 V AC - to Adapter

General Information

Manufacturer: Logic Controls
Product Name: LD9000 Pole Display

Physical Characteristics

Dimensions:
- 3.37" (86mm) x 8.5" (216mm) x 1.75" (44mm) - Fluorescent Display
- 2.25" (57mm) x 2.12" (54mm) x 2.12" (54mm) - Rectangular Base
- 0.9" (23mm) x 4" (102mm) x 8" (203mm) - Base Plate
Weight: 2.7 lb (1.22 kg)
Color: Gray

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 70Â°C (158Â°F) Storage
Humidity:
- 85% Operating Non-condensing
- 90% Non-operating Non-condensing

Other

Package Contents: LD9000 Pole Display Power Adapter Mounting Plate 6' Cable
