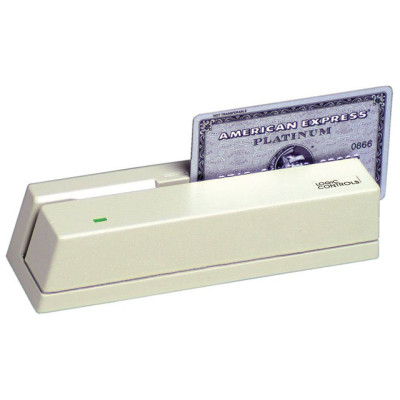

Logic Controls MR3000 Credit Card Reader
Logic Controls Cash Drawer & Customer Pole Display

Logic Controls MR3000 Credit Card Reader

Logic Controls MR3000 Credit Card Reader

The rugged MR3000 family of Barcode Readers features built-in decoders to read one two and three tracks of information. The housing is a specially designed heavy die cast steel for unsurpassed stability and durability.
Discontinued - Need Assistance
See all options
  • A two color LED indicates a Good/Bad read
  • Bi-directional reading head
  • Built-in decoder reads all combinations of tracks 1, 2, and 3
  • Ergonomic design
  • Heavy die cast steel housing
  • Keyboard wedge interface is standard, Optional RS-232C interface available
  • Operates with or without computer keyboard attached
  • Stainless steel card guide for an extra smooth swipe
  • Supports a wide range of reading speeds
MR3000 Specs MR3000 Specs (pdf)

Magnetic Stripe Readers MR3000 Series More Images Superior Reliability The MR3000 Series full size MSRs are built with only the highest quality components. They are enclosed in heavy duty die cast steel housings and use stainless steel card guides for an extra smooth swipe. The reading head lasts longer than 1 million cycles and can read with a swipe made in either direction. A two color LED indicates a good/bad read. The MR3000 Series also supports a wide range of reading speeds and includes special firmware to avoid transmission errors due to bus contention. All units also receive full functional and quality control testing before leaving Logic Controls facilities. Easily Programmable The MR3000 Series includes programmable models that are easily programmed through an intuitive graphical user interface. By simply clicking on buttons and entering parameters, an integrator can easily set up MR3000 units for use with a minimal investment in time and training. It is easy to enable/disable tracks, change start and stop sentinels, and add prefixes, field terminators and suffixes. A built-in decoder reads all combinations of tracks 1, 2 and 3.. Many Interfaces Supported The MR3000 Series MSRs are available with a standard PS/2 keyboard wedge interface or optional USB, RS232C, RS232C pass-thru or AT interfaces. They support a true keyboard wedge function and can operate either with or without a computer keyboard.

  • Full size unit with heavy duty die cast steel housing
  • Easy, GUI-based programming
  • Built-in decoder reads all combinations of tracks 1, 2 and 3
  • Stainless steel card guide for extra smooth swipe
  • Bi-directional reading head that lasts > 1 million swipes
  • Two color LED indicates good/bad read
  • Supports wide range of reading speeds
  • Supports PS/2 keyboard wedge interface or optional USB, RS232C, RS232C pass-thru or AT interfaces
  • Operates with or without keyboard attached
  • Avoids transmission errors due to bus contention
Extended Details
Refine Your Options
Shop By
Shopping Options
Interface Options
  1. USB-Keyboard Emulation (1)
Type
  1. Fixed (1)
  1. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3000T2RS | SKU: 1625

    Magnetic Stripe Reader (Tracks 2 with Built-In Decoder, RS-232 Cable, Manual and Power Adapter)
  2. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3000T1 | SKU: 6939

    MAG STRIPE READER, TR 1 BUILT IN DECODER WEDGE IF AT CABLE
  3. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3000 | SKU: 9212

    Magnetic Stripe Reader (Tracks 1 & 2, with Built-In Decoder, Wedge Interface, and AT or PS/2 Cable)
  4. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3010BLK | SKU: 25471

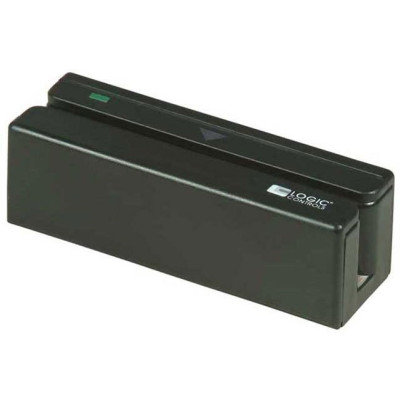

    MR3000, Magnetic Stripe Reader (Programmable MSR, Wedge Interface with PS/2) - Color: Black
  5. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3010 | SKU: 25472

    Magnetic Stripe Reader (Programmable MSR, Wedge Interface with PS/2)
  6. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3010U-BK | SKU: 25473

    Magnetic Stripe Reader (Tracks 1 and 2, with Built-In Decoder and USB Interface - Programmable) - Color: Black
  7. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3000U-BK | SKU: 28731

    Magnetic Stripe Reader (Non-Programmable, USB, Tracks 1 and 2, Heavy Duty and Die Cast Steel) - Color: Black
  8. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3010-BG | SKU: 45701

    MR3000, Magnetic Stripe Reader (Programmable MSR, Wedge Interface with PS/2)
  9. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3000T2-PS2BLACK | SKU: 61444

    MR3000, Magnetic Stripe Reader (Track 2 Only MSR, PS/2 Cable and Decoded Wedge) - Color: Black
  10. Logic Controls MR3000 Credit Card Reader

    Logic Controls MR3000 Credit Card Reader
    Part #: MR3010RS-BG | SKU: 90203

    MR3000, FULLY PROGRAM. DIE CAST CASE MSR TRACKS 1 & 2, RS-232 INT. BEIGE

Items 11 to 20 of 21 total

Page:
  2. 1
  3. 2
  4. 3
