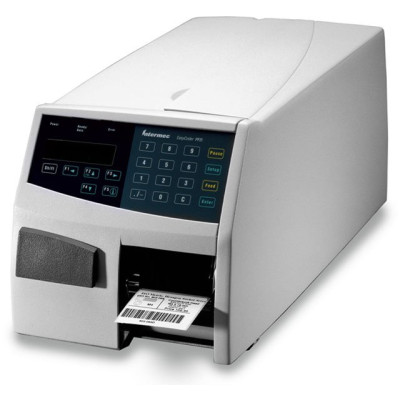

Intermec EasyCoder PF2i Barcode Label Printer
Intermec Barcode Label Printer & Intermec Barcode Scanner

Intermec EasyCoder PF2i Barcode Label Printer

Intermec EasyCoder PF2i Barcode Label Printer

The EasyCoder PF2i printer is specially designed to provide rigorous barcode label printing in areas where space is limited. Users can enjoy all the features and benefits of larger barcode label printers, including standalone smart printing, without giving up valuable space.
Discontinued - Need Assistance
See all options
  • Can emulate and replace competitive and older Intermec printers
  • Compact and powerful for applications where the demands are high and space is limited
  • CompactFlash memory for quick and easy firmware, font and memory upgrades
  • Easily adapts to changing host environments and applications
  • Magnetic QuickMount™ printhead for easy printhead installation
  • Superior throughput eliminates wait time at the printer
  • Supports standalone printer applications
  • User selectable printer language
  • Utilize up to four interface ports simultaneously, including internal EasyLAN™ Ethernet or EasyLAN Wireless
Intermec EasyCoder PF2i Specs Intermec EasyCoder PF2i Specs (pdf) Intermec EasyCoder PF2i Driver Intermec EasyCoder PF2i Driver (download)

Interfaces

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0

Optional:
• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
• Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop

Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, CCX (Cisco®) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i
• Multiple industrial antenna options for maximized coverage

Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.

Memory

Standard:
16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
Options:
1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)

Physical Characteristics

Length:
397mm (15.6 in)
Height:
178mm (7.0 in)
(big top): 205 mm (8.1 in)
Width:
194mm (7.6 in)
Weight:
5.5 kg (12 lbs)

Power

Input:
90 to 265 VAC, 45 to 65Hz
Consumption: Standby 15W; Peak 300W

Print Specifications

Max Width:
56 mm (2.2 in)
Max Length:
4095 mm (161.2 in)
Max Label Width:
60 mm (2.36 in)
Thickness:
3.0 to 7.5 mil
Style:
Roll-fed or fanfold
Label Roll Max Diameter:
(long door): 152.4 mm (6 in)
(short door): 213 mm (8.38 in)
Label Roll Core:
38-76mm (1.5-3 in)
Resolution:
8 dots/mm (203 dpi)
Print Speed:
100 – 200 mm/s (4 – 8 ips) variable
Media Type:
Direct thermal and thermal transfer label, ticket and tag printer. Also available in RFID configuration.

Supported Bar Code Symbologies

1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.

Extended Details
Refine Your Options
Shop By
Shopping Options
Manufacturer
  1. Intermec (35)
Interface Options
  1. Ethernet (15)
  2. Parallel (2)
  3. USB (1)
Printer Type
  1. Industrial (35)
Print Speed
  1. 8 (35)
  1. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IB41010000020 | SKU: INT34699

    EasyCoder PF2i, US, Fingerprint/DP Firmware, Short Door, Parallel Interface Card, Thermal transfer, 203 dpi
  2. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IB41032001120 | SKU: INT34700

    EasyCoder PF2i, US, Fingerprint/DP Firmware, Short Door, INDS with RS-422, Self Strip with Label Takeup Sensor, Clock, Thermal transfer
  3. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IB81031013020 | SKU: INT34701

    EasyCoder PF2i, Fingerprint/DP Firmware, Short Door, Industrial + RS-232, Rotating Unwinder, Thermal transfer, 203 dpi
  4. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IC80100301121 | SKU: INT37208

    EasyCoder PF2i, Direct thermal Printer, Fingerprint-DP Firmware, No Cord, Long Door, EasyLAN Integrated Ethernet
  5. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IC80000300020 | SKU: INT47309

    EasyCoder PF2i, Thermal transfer Printer (Fingerprint-DP Firmware, No Cord, Long Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and TT 203 dpi)
  6. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IC80000300021 | SKU: INT47310

    EasyCoder PF2i, Direct thermal Printer (Fingerprint-DP Firmware, No Cord, Long Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and DT 203 dpi)
  7. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IC80000301121 | SKU: INT47311

    EasyCoder PF2i, Direct thermal Printer (Fingerprint-DP Firmware, No Cord, Long Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, Self Strip with Backing Paper Rewind + LTS, Real-time clock and DT 203 dpi)
  8. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IC80100300020 | SKU: INT47312

    EasyCoder PF2i, Thermal transfer Printer (Fingerprint-DP Firmware, No Cord, Long Door, EasyLAN Integrated Ethernet Interface 10/100, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and TT 203 dpi)
  9. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IC81000300020 | SKU: INT47313

    EasyCoder PF2i, Thermal transfer Printer (Fingerprint-DP Firmware, No Cord, Short Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and TT 203 dpi)
  10. Intermec EasyCoder PF2i Barcode Label Printer

    Intermec EasyCoder PF2i Barcode Label Printer
    Part #: PF2IC81000300021 | SKU: INT47314

    EasyCoder PF2i, Direct thermal Printer (Fingerprint-DP Firmware, No Cord, Short Door, No Network Interface, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2 and DT 203 dpi)

Items 11 to 20 of 35 total

Page:
  2. 1
  3. 2
  4. 3
  5. 4

Recommended Accessories for Model: Intermec EasyCoder PF2i Barcode Label Printer

View All Options

Recommended Labels for Model: Intermec EasyCoder PF2i Barcode Label Printer

View All Options

Recommended Printheads for Model: Intermec EasyCoder PF2i Barcode Label Printer

  • Intermec EasyCoder PF2i Printhead
    Part #: 1-010030-900 | SKU: INT42402

    Printhead Replacement - 203 dpi resolution
    MSRP: $410.66 Price: $375.90
View All Options

Recommended Ribbons for Model: Intermec EasyCoder PF2i Barcode Label Printer

  • Intermec Ribbons Ribbon
    Part #: 13071206 | SKU: INT128854

    Resin Ribbon, Black, 1.2" x 500', rolls/case: 48, Core Size: 0.5", For Use With (Labels): Polyester Labels, For Use With (Printer): Desktop
    Price: $447.79

  • Intermec EasyCoder 3240 Ribbon
    Part #: 13071206-R | SKU: INT10251

    ThermaMax 3202 Resin, 1.299" x 500' Black Resin Ribbon. Compatible with Industrial Printers. Single ribbon. Used with polyester labels.
    Price: $19.79
View All Options

Recommended Warranties for Model: Intermec EasyCoder PF2i Barcode Label Printer

  • Intermec EasyCoder PF2i Service Contract
    Part #: SVCPF2-OS2WT3 | SKU: INT363865

    Honeywell Wear and Tear - 3 Year Extended Service - Service - On-site - Maintenance - Parts & Labor - Physical Service
    Price: $533.83

  • Intermec EasyCoder PF2i Service Contract
    Part #: SVCPF2-OS1WT5 | SKU: INT363863

    Honeywell Wear and Tear - 5 Year Extended Service - Service - On-site - Maintenance - Parts & Labor - Electronic, Physical Service
    Price: $933.11

  • Intermec EasyCoder PF2i Service Contract
    Part #: SVCPF2-OS1WT3 | SKU: INT363862

    Honeywell Wear and Tear - 3 Year Extended Service - Service - On-site - Maintenance - Parts & Labor - Electronic, Physical Service
    Price: $622.36

  • Intermec EasyCoder PF2i Service Contract
    Part #: SVCPF2-2FC3 | SKU: INT363853

    Honeywell Full Comprehensive - 3 Year Extended Service - Service - Exchange - Electronic, Physical Service
    Price: $359.35

  • Intermec EasyCoder PF2i Service Contract
    Part #: SVCPF2-OS2WT5 | SKU: INT363866

    PF2, 2 Day Response, On-site, 5 Year
