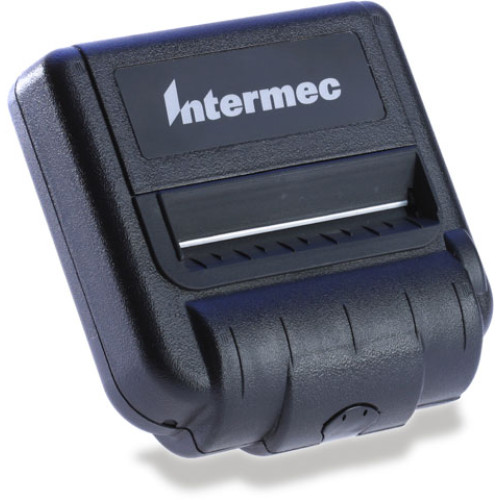

Intermec PB41 Specs
Application
Direct Thermal receipt printing
Direct Thermal receipt printing
Physical Characteristics
Length: 7.37 in (18.72
cm)
Height: 6.82 in (17.32 cm)
Width: 2.67 in (6.78 cm)
Weight: 39.6 oz (1122.6 g) (incl. batteries / paper roll)
Drop Spec: 4 feet (1.2 m)
Print Specifications
Max. Print
Width: 4.09 in (104 mm)
Max. Print Length: 120 feet is average roll
size
Print Speed
Selectable print speeds up to 2.5 ips
(63.5 mm)
Print Resolution
8 dots/mm (203.2 dpi)
Media Specifications
Style:
Roll-feed continuous receipt or label
Type: Direct thermal paper and labels.
Max. Paper Width: 4.41 in (112.0 mm)
Roll Capacity: Thermal Paper: 1,716 in (43.5 m)
Interface
- RS-232 Serial – up to 115.2k baud
- Wireless LAN – Cisco Aironet 350 Series PC Card (PCMCIA)
- Frequency band: 2.4 to 2.4897 GHz
- Data rates supported: 1, 2, 5.5, and 11Mbps
- Network Standard: IEEE 802.11b
- Network Architecture Types: Infrastructure and ad hoc
- Wireless Medium: Direct Sequence Spread Spectrum (DSSS)
- Personal Area Network – Integrated Bluetooth Module
- Network Environment: Ad hoc
- Protocol: Support s version 1.1 of the Bluetooth standard (SIG certification pending)
Power
Battery Type: 7.2 V Lithium Ion
2200 mAh (two batteries for a total of 4,400 mAh)
DC Input: 12-15V, built-in spike and surge
protection
Battery Life: Dependent on usage:
- Bluetooth – prints 4,250 inches on a single battery charge
- 802.11b – Prints 3,864 inches on a single battery charge
Recharging: 2-3 hours from AC adapter or cigarette lighter adapter
Bar code Symbologies
Prints 1D and 2D bar codes
Fonts
5.5 CPI; 7.2 CPI; 10.2 CPI; 10.7 CPI; 18.5 CPI;
20.4 CPI; 22.6 CPI
Unicode subset including Thai and Latin
Graphics
Supports storage and one time transient use
of graphics and logos in flash memory.
Memory
Flash – 8 Mbit
RAM – 4 Mbit
Environment
Operating Temperature: -20° C to 50° C
(-4° F to 122° F)
Storage Temperature: -40° C to 70° C (-40° F to 158°
F)
Charging Temperature: 5° C to 40° C (41° F to 104°
F)
Humidity: 10% to 90% (non condensing)
ESD Protection: 8 kV Air, 4 kV Contact
Regulatory Approvals
FCC B, CE, C-Tick, E-Mark
