Intermec SR61HD DPM Barcode Scanner Intermec SR61HD DPM Barcode Scanner Intermec SR61HD DPM Barcode Scanner
Intermec Barcode Label Printer & Intermec Barcode Scanner

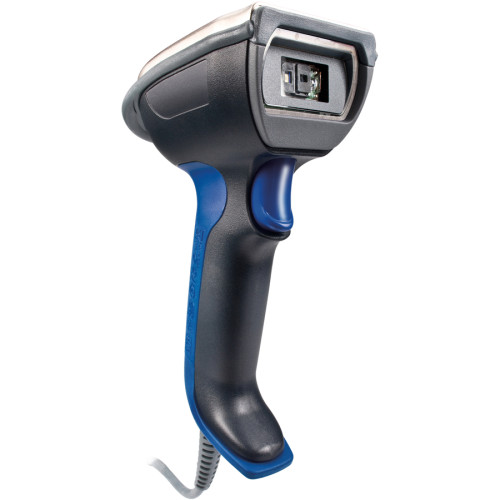

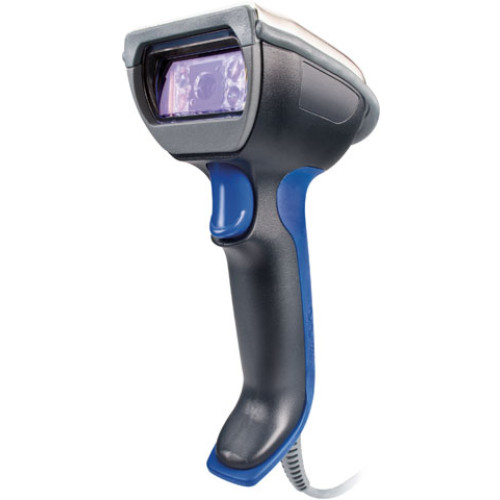

Intermec SR61HD DPM Barcode Scanner
Part #: SR61TDPM-USB001 | SKU: INT209609

The Intermec SR61HD DPM handheld scanner is a customized variant of the SR61 family, capable of scanning high density bar codes and direct part marks commonly used to track assets in defense, aerospace, automotive, pharmaceutical, and telecommunications industries. Since this scanner is built on a common hardware platform, it is a much more cost-effective solution for scanning direct part marks when compared to specialized, purpose-built devices.

Intermec SR61HD DPM Barcode Scanner

Part Details: SR61THD DPM, Ind High Dens Area Im USB K
Need a different version of the Intermec SR61HD DPM Barcode Scanner? View all 3 configurations

Additional Information

Form Factor No
Manufacturer Intermec
Model Name SR61HD DPM
Product Condition No
Intermec SR61HD DPM Specs Intermec SR61HD DPM Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • Codabar
    • Codablock
    • Code 11
    • Code 128 (GS1-128)
    • Code 39
    • Code 93/93i
    • EAN/UPC
    • GS1 DataBar Expanded
    • GS1 DataBar Limited
    • GS1 DataBar Omni-Directional
    • GS1 DataBar Stacked
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • Macro PDF
    • Micro PDF
    • MSI
    • PDF417
    • Plessey
    • Standard 2 of 5
    • Telepen
    • TLC39
    • 2D:
    • Aztec
    • DataMatrix
    • GS1 Composite
    • MaxiCode
    • QR Code
    • Postal:
    • Australian Post
    • BPO
    • Canada Post
    • Dutch Post
    • Infomail
    • Intelligent Mail
    • Japan Post
    • Planet
    • Postnet
    • Sweden Post
    • 1D:
    • Codabar
    • Codablock
    • Code 11
    • Code 128 (GS1-128)
    • Code 39
    • Code 93/93i
    • EAN/UPC
    • GS1 DataBar Expanded
    • GS1 DataBar Limited
    • GS1 DataBar Omni-Directional
    • GS1 DataBar Stacked
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • Macro PDF
    • Micro PDF
    • MSI
    • PDF417
    • Plessey
    • Standard 2 of 5
    • Telepen
    • TLC39
    • 2D:
    • Aztec
    • DataMatrix
    • GS1 Composite
    • MaxiCode
    • QR Code
    • Postal:
    • Australian Post
    • BPO
    • Canada Post
    • Dutch Post
    • Infomail
    • Intelligent Mail
    • Japan Post
    • Planet
    • Postnet
    • Sweden Post
  • Depth of Field:
    • 2.17" - 3.54"@3 mil - Code 39
    • 1.97" - 4.13"@4 mil
    • 1.97" - 4.72"@5 mil
    • 2.95" - 9"@20 mil
    • 14.17"@1 mil
    • 2.36" - 7.09"@ - EAN 100%
    • 1.97" - 4.92"@5 mil - PDF417
    • 1.57" - 6.50"@10 mil
    • 2.36" - 8.07"@15 mil
    • 2.17" - 4.13"@5 mil - DataMatrix
    • 1.77" - 5.51"@10 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: SR61T
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: SR61THD
  • Product Name: SR61HD DPM Industrial Handheld Scanner

Physical Characteristics

  • Height: 5.2"
  • Width: 2.8"
  • Length: 7.6"
  • Weight (Approximate): 11.29 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC

Warranty

  • Limited Warranty: 3 Year
