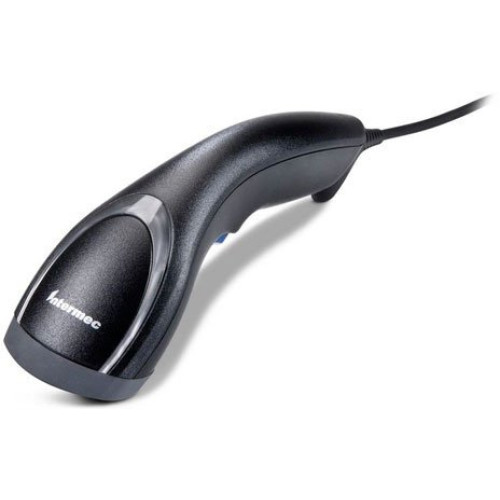

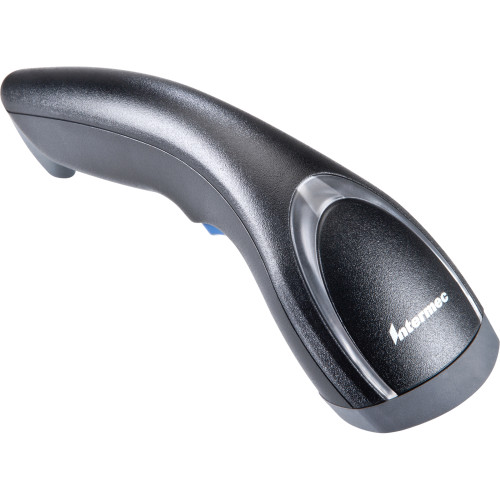

Intermec SG20 Series Barcode Scanner
Part #: SG20B1D-KBW001 | SKU: INT156373

Scanning is all about speed and accuracyso why hassle with scanners that just slow you down? The SG20 2D imager features the industry's fastest bar code reading technology, with more motion tolerance than competing devices.

Intermec SG20 Series Barcode Scanner

Part Details: SG20B: SG20 Series, SG20 Linear Imager (Keyboard wedge Kit, 1D Imager, Cable, Bluetooth Base Interface, Power supply)

Need a different version of the Intermec SG20 Series Barcode Scanner? View all 31 configurations

Additional Information

Included Cables	USB
Manufacturer	Intermec
Model Name	SG20 Series
Product Condition	No
Scanner Capability	1D
Scanner Type	No
Specialty Encoding	None

Intermec SG20 Series Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Omni-directional
Connectivity Technology: Wireless
Image Sensor:
- Imager
- Linear
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93/93i
- Code 128 / GS1-128
- EAN/UPC
- GS1 DataBar Limited
- GS1 Composite (linear only)
- GS1 DataBar Expanded
- GS1 DataBar Omnidirectional
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI
- Plessey
- Standard 2 of 5
- Telepen
- Codabar
- Code 11
- Code 39
- Code 93/93i
- Code 128 / GS1-128
- EAN/UPC
- GS1 DataBar Limited
- GS1 Composite (linear only)
- GS1 DataBar Expanded
- GS1 DataBar Omnidirectional
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI
- Plessey
- Standard 2 of 5
- Telepen
Maximum Scan Resolution: 6 mil

General Information

Product Type: Handheld Barcode Scanner
Product Series: SG20
Brand Name: Intermec
Manufacturer: Intermec Technologies Corporation
Product Model: SG20B
Product Name: SG20 General Duty Imager

Physical Characteristics

Height: 2.6"
Width: 2.4"
Length: 7.9"
Weight (Approximate): 6.17 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- China RoHS
- WEEE
- REACH
Platform Supported: PC

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

Bluetooth: Yes

Warranty

Limited Warranty: 3 Year

Extended Details
