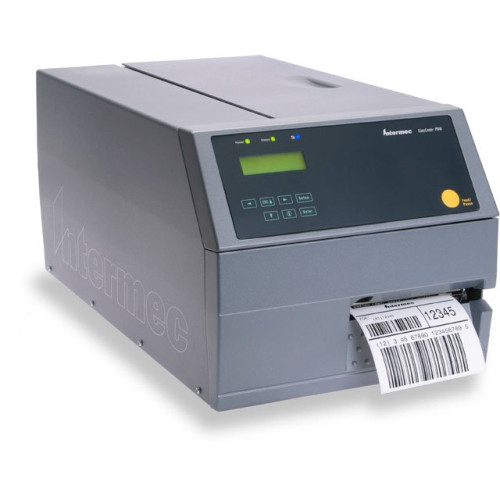

Intermec EasyCoder PX4i Barcode Label Printer
Intermec Barcode Label Printer & Intermec Barcode Scanner

Intermec EasyCoder PX4i Barcode Label Printer
Part #: PX4C011000005040 | SKU: INT128940

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The PX4i features a maximum print width of 4 inches and is available with 203 or 300-dpi resolution printheads. The open, modular design ensures the printers are easy to adapt, maintain and service.

Intermec EasyCoder PX4i Barcode Label Printer

Part Details: Label printer - Industrial - Thermal transfer - 400 dpi - 4.3 print width - 10/second print speed - USB - Serial - Ethernet - Includes label taken sensor and US power cord
Need a different version of the Intermec EasyCoder PX4i Barcode Label Printer? View all 58 configurations

Additional Information

Interface Options Ethernet
Label Core No
Manufacturer Intermec
Max Label Width 4.72
Max Roll Outer Diameter 8
Maximum Print Width 4.3
Model Name EasyCoder PX4i
Print Method No
Print Resolution No
Print Speed 10
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
Intermec EasyCoder PX4i Specs Intermec EasyCoder PX4i Specs (pdf)
Application
 Direct Thermal (DT) and Thermal Transfer (TT) printing of adhesive labels, tickets and tags.

Models
 EasyCoder PX4i
EasyCoder PX6i

Physical Characteristics
 LxHxW: 482 x 238 x 275 mm (19.0 x 9.4 x 10.8 in)
Weight: 12.85 kg (28.4 lbs)

Print Specifications
 Max. Print Width: 112 (DT)/110 (TT) mm (4.4/4.3 in)
Max. Length with extended memory:
 4095 mm (161 in) at 203 dpi
2775 mm (109 in) at 300 dpi

Print Speed
 100 - 300 mm/s (4 - 12 ips) variable

Print Direction
 Prints smooth text, any size bar codes and graphics in all four orthogonal directions.

Print Resolution
 8 dots/mm (203 dpi), 11.8 dots/mm* (300 dpi)

Label/Ticket/Tag
 Max. Width: 120 mm (4.72 in)
Min. Width: 50.8 mm (2.0 in)
Thickness: 60 to 250µm (2.4 to 10 mil)
Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets
Label Roll max diameter: 213 mm (8.38 in)
Label Roll Core: 38-76 mm (1.5-3.0 in)
Media Type: Thermally sensitive media

Ribbon Roll
 Ribbon roll max diameter: 80 mm (3.15 in) corresponding up to 600 m (23 600 in) in length
Ribbon Roll Core: 25 mm (1.0 in)
Ribbon Type: Wax, wax/resin, resin

Interfaces
 Standard:

  • EasyLAN 10/100BaseT internal Ethernet
  • RS-232, up to 115.2 kB/s
  • USB 2.0
  • Wand interface for EasySet System

Optional:

  • EasyLAN Wireless internal Ethernet

Optional interface card adapters:

  • Parallel IEEE 1284
  • Industrial Interface* (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
  • Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop*

Network Interface Options:
 EasyLAN integrated Ethernet: RJ-45 connector for 10BaseT or 100baseTX
EasyLAN Wireless:

  • Fully integrated IEEE 802.11b/g
  • WEP 128 bit, 802.1x/WPA/LEAP/PEAP
  • Multiple industrial antenna options for maximized coverage

Supported Protocols: TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMP, SMTP.
SNMP-MIB II supported (over UDP/IP), private enterprise MIB included

Software
 Available printer command languages:

  • IPL
  • Fingerprint/Direct Protocol

Applications/Drivers (comes on Printer Companion CD) including:

  • InterDriver™ Windows printer driver
  • Intermec LabelShop® START label design and print package
  • Intermec Printer Network Manager for administration of networked printers
  • PrintSet for printer setup/configuration

Optional software for application development:

  • Fingerprint ApplicationBuilder™ (IFAB)
  • Intermec Printer Application Server™
  • ERPLabel™ for SAP™ R/3®.

Bar code Symbologies
 DP 1-dimensional Codes: Codabar, Code 11, Code 39, Code 93, MSI(modified Plessey), Code 128, Code 128 Subset A-C, DUN-14/16, UPC/EAN Codes (EAN 8, EAN 13, UPC Version A, UPC Version E), EAN-128, EAN-128 Subset A-C*, Industrial 2 of 5, Interleaved 2 of 5, Interleaved 2 of 5 A, Matrix 2 of 5*, Planet, Postnet, Straight 2 of 5*, UCC-128 Serial Shipping Container Code, RSS, HIBC Code 39 (IPL only), HIBC Code 128 (IPL only), JIS-ITF (IPL only)
2-dimensional Codes: Code 16K, Code 49, Data Matrix, MaxiCode, PDF417, QR Code, MicroPDF417, EAN.UCC Composite

Standards Supported
 UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); LOGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS shipping label; Global Transport label

Characters Sets
 Fingerprint/DP Firmware: 15 scalable fonts including 12 UNICODE (1 WGL4), 1 symbol, 1 OCR-A, 1 OCR-B. Font cache for maximum performance. Non-Latin fonts are available as options.
IPL Firmware: 13 scalable fonts + 20 bitmap fonts.

Graphics
 Supports PCX file format

Memory
 Standard:
 4MB Flash memory
8MB SDRAM
1 Compact Flash slot
Maximum:
 Flash memory: Up to 16 MB (optional) 1GB CompactFlash memory
SDRAM:
 Up to 16MB

Protocol
 Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
IPL: XON/XOFF, Intermec Standard Protocol

Display
 Back-lit LCD for 2x16 characters and 3 LED indicator lamps

Keypad Control Panel

  • Advanced keypad (Fingerprint/DP)
  • Alpha-numeric keypad (FP/DP option)
  • Simplified keypad (IPL)

Power Supply
 115/230VAC auto-switch w/PFC
Voltage Range: 90-265 VAC
Frequency Range: 45-65 Hz

Operating Environment
 Temperature: +5° to +40°C (+40° to +104°F)
Humidity: 10-90% RH non-condensing

Regulatory Approvals
 CE (EN55022 Class A), FCC Class A, UL, CSA, C-Tick

Extended Details

Recommended Accessories for Model: Intermec EasyCoder PX4i Barcode Label Printer

  • Intermec SR61 Power Device
    Part #: 1-974028-025 | SKU: INT20787

    AC line cord
    Price: $22.82

  • Intermec Cables Accessory
    Part #: 1-974024-018 | SKU: INT28458

    RS-232 Cable (1.8 meters, DB9F-DB9M Assembly)
    Price: $29.97

  • Intermec EasyCoder PC4 Printhead Cleaner
    Part #: 1-110501-00 | SKU: INT15605

    Printhead Cleaning Kit (25 Individual cleaner units per box). Minimum Order Quantity: $350
    MSRP: $55.13 Price: $44.31

  • Intermec EasyCoder PX4i Printhead
    Part #: 1-040082-900 | SKU: INT20699

    Printhead Kit - Replacement - 203 dpi - Compatible with Intermec EasyCoder PX4i
    MSRP: $519.49 Price: $486.17

  • Intermec EasyCoder PX4i Barcode Verifier
    Part #: 201-022-001 | SKU: INT289255

    FRONT COVER PX4, INCLUDES HINGES AND CLIP, SPARE PARTS NON-CANCELLABLE, NON-RETURNABLE
    MSRP: $103.79 Price: $93.59
View All Options

Recommended Labels for Model: Intermec EasyCoder PX4i Barcode Label Printer

  • Intermec Duratran II Barcode Label
    Part #: E04889 | SKU: INT10234

    Intermec Duratran II Thermal Transfer Label - 4.5" Width x 6.5" Length - 692/Roll - 3" Core. Minimum Order Quantity: $350
    Price: $242.41

  • Intermec Duratran II Barcode Label
    Part #: E07516 | SKU: INT10207

    Thermal Transfer Labels (4.0 in. x 2.0 in. - Perforated, 2,823 Labels/Roll, 4 Rolls/Case). MOQ: $350
    Price: $49.49

  • Intermec Duratran II Barcode Label
    Part #: E06176 | SKU: INT10200

    Thermal Transfer Labels (4.0 in. x 6.5 in. - 905 Labels/Roll, 4 Rolls/Case)
    Price: $45.73

  • Intermec Duratherm III Barcode Label
    Part #: E06144 | SKU: INT41692

    Intermec Duratherm Lightning E06144 Thermal Label - 4" Width x 6" Length - Permanent Adhesive - Rectangle - Direct Thermal - Paper - 979 / Roll - 4 / Carton
    Price: $110.98

  • Intermec Duratran II Barcode Label
    Part #: E07267-PMS236 | SKU: INT10203

    Thermal Transfer Labels (4.0 Inch x 6.0 Inch - 975 Labels/Roll, 4 Rolls/Case - Floodcoat PMS#236 Pink). Minimum Order Quantity: $350
    Price: $68.54
View All Options

Recommended Printheads for Model: Intermec EasyCoder PX4i Barcode Label Printer

  • Intermec EasyCoder PX4i Printhead
    Part #: 1-040082-900 | SKU: INT20699

    Printhead Kit - Replacement - 203 dpi - Compatible with Intermec EasyCoder PX4i
    MSRP: $519.49 Price: $486.17

  • Intermec EasyCoder PX4i Accessory
    Part #: 1-040083-900 | SKU: INT20702

    Thermal Printhead - 300 dpi - Replacement Printhead for PX4i
    MSRP: $1,069.55 Price: $979.04

  • Intermec EasyCoder PX4i Printhead
    Part #: 850-812-900 | SKU: INT42375

    Printhead Kit For Printer Model PX4i, Print Resolution 406 dpi
    MSRP: $1,222.32 Price: $1,118.89

  • Intermec Products
    Part #: 1-040086-900 | SKU: INT278392

    PRINT UNIT PX4I,COMLETE ASSEMBLY
View All Options

Recommended Ribbons for Model: Intermec EasyCoder PX4i Barcode Label Printer

  • Intermec Ribbons Ribbon
    Part #: 13023006 | SKU: INT8466

    Resin Ribbon, Black, 3" x 500', rolls/case: 36, Core Size: 1", For Use With (Labels): Polyester Labels, For Use With (Printer): Industrial
    Price: $28.64

  • Intermec Ribbons Ribbon
    Part #: 13071206 | SKU: INT128854

    Resin Ribbon, Black, 1.2" x 500', rolls/case: 48, Core Size: 0.5", For Use With (Labels): Polyester Labels, For Use With (Printer): Desktop
    Price: $447.79

  • Intermec Ribbons Ribbon
    Part #: 12073018 | SKU: INT8456

    ThermaMax 2202 Mid-Range, 3" x 1500' Black Wax-Resin Ribbon. Compatible with Industrial Printers. Single ribbon. Used with polypropylene labels.
    Price: $33.15

  • Intermec Ribbons Ribbon
    Part #: 13634318 | SKU: INT128860

    4.33" x 1476' Black resin ribbon - 24 ribbon case - Used with Industrial Printers - Compatible with polyester labels
    Price: $1,817.57

  • Intermec Ribbons Ribbon
    Part #: 13072218 | SKU: INT191894

    2.2" x 1500' Black Resin Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with polyester labels. Minimum Order Quantity: $350
    Price: $990.36
View All Options

Recommended Warranties for Model: Intermec EasyCoder PX4i Barcode Label Printer

  • Intermec EasyCoder PX4i Service Contract
    Part #: SVCPX45-EXW1R | SKU: INT716516

    Service Contracts - Honeywell - PX45 - Extended Warranty - 1 Year - Renew-Postsale
    Call For Price

  • Intermec EasyCoder PX4i Service Contract
    Part #: SVCPX45-EXW2 | SKU: INT716517

    Service Contracts - Honeywell - PX45 - Extended Warranty - Standard Warranty + 1 Year
    Call For Price

  • Intermec EasyCoder PX4i Service Contract
    Part #: SVCPX45-EXW3 | SKU: INT716518

    Service Contracts - Honeywell - PX45 - Extended Warranty - Standard Warranty + 2 Years
    Call For Price

  • Intermec EasyCoder PX4i Service Contract
    Part #: SVCPX4-OS2WT1R | SKU: INT363976

    Honeywell Wear and Tear - 1 Year Extended Service (Renewal) - Service - On-site - Maintenance - Parts & Labor - Electronic, Physical Service
    Price: $343.33

  • Intermec EasyCoder PX4i Service Contract
    Part #: SVCPX4-2PS5 | SKU: INT500018

    SERVICE CONTRACT, PX4, COMPLETE, 2 DAY, 5 YEAR, DAYONE - INCLUDES PRINTHEAD, CUTTER AND PLATEN ROLLER COVERAGE
    Price: $888.67
View All Options
