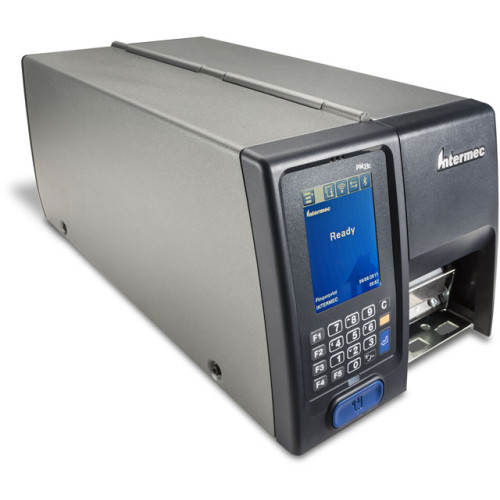

Intermec PM23c Barcode Label Printer
Intermec Barcode Label Printer & Intermec Barcode Scanner

Intermec PM23c Barcode Label Printer
Part #: PM23CA1120021401 | SKU: INT235005

The PM23c mid-range industrial printer features a two-inch print width and a compact footprint, ideal for demanding applications in transportation, manufacturing, retail, distribution center and warehouse environments. As the third generation of Intermec industrial printers, the rugged PM Series incorporate features that increase uptime and reduce maintenance costs

Intermec PM23c Barcode Label Printer

Part Details: INTERMEC, PM23 DESKTOP PRINTER, TOUCH USER INTERFACE, ETHERNET, DOME DOOR, NO I/O, REWINDER & LABEL TAKEN SENSOR, HANGER, REAL TIME CLOCK, TT406DPI, US POWER CORD
Need a different version of the Intermec PM23c Barcode Label Printer? View all 13 configurations

Additional Information

Included Features No
Interface Options Ethernet, USB
Label Core No
Manufacturer Intermec
Max Label Width 2.70
Max Roll Outer Diameter 8
Maximum Print Width 2.20
Model Name PM23c
Print Method No
Print Resolution No
Print Speed 10
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1
Intermec PM23c Specs Intermec PM23c Specs (pdf)

Technical Information

  • Maximum Color Print Speed: 9.84 in/s
  • Maximum Print Resolution: 406 dpi
  • Print Color: Color
  • Maximum Print Width: 2.50"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Rewinder
  • Barcode Symbology Supported:
    • UPC/EAN Shipping Container
    • UCC/EAN 128 Serial Shipping Container
    • LOGMARS
    • POSTNET
    • HIBCC
    • ISBT-128
    • GM1724

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PM
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PM23c
  • Product Name: PM23c Mid-Range Printer

Physical Characteristics

  • Height: 9.6"
  • Width: 8.1"
  • Depth: 19.7"
  • Form Factor: Desktop
  • Weight (Approximate): 20.94 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 2.70"
  • Media Type:
    • Label
    • Tag
    • Linered Media
    • Linerless
    • Ticket
    • Roll Fed
    • Fanfold
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Label Taken Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.38"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Certifications & Standards:
    • PFC Regulation IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL
    • cUL
    • D Mark
    • CCC

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Standby Power Consumption: 9 W
  • Maximum Power Consumption: 300 W
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • IPL
    • ZPL
    • DPL
    • XML

Memory

  • Standard Memory: 128 MB
  • Memory Technology: SDRAM
  • Flash Memory: 128 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Touchscreen: Yes
  • Display Screen Type: LCD
Extended Details

Recommended Accessories for Model: Intermec PM23c Barcode Label Printer

  • Intermec 700 Series Accessory
    Part #: 321-576-004 | SKU: INT21353

    Cable (2 meters, USB-A to USB-B) Use with Dock Sync 760, CK30 and CN2

  • Intermec SR61 Power Device
    Part #: 1-974028-025 | SKU: INT20787

    AC line cord
    Price: $22.82

  • Intermec Cables Accessory
    Part #: 1-974024-018 | SKU: INT28458

    RS-232 Cable (1.8 meters, DB9F-DB9M Assembly)
    Price: $29.97

  • Intermec EasyCoder PC4 Printhead Cleaner
    Part #: 1-110501-00 | SKU: INT15605

    Printhead Cleaning Kit (25 Individual cleaner units per box). Minimum Order Quantity: $350
    MSRP: $55.13 Price: $44.31

  • Intermec PM43 Printhead
    Part #: 710-129S-001 | SKU: INT183574

    Printhead Kit - Replacement - 203 dpi - Compatible with Honeywell PM43
    MSRP: $687.57 Price: $643.48
View All Options

Recommended Labels for Model: Intermec PM23c Barcode Label Printer

  • Intermec Ribbons Ribbon
    Part #: 13633111 | SKU: INT128858

    ThermaMax 3202 Resin, 3.1" x 900' Black Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polyester labels.
    Price: $793.43

  • Intermec Ribbons Ribbon
    Part #: 12234012 | SKU: INT128852

    4.09" x 900' Black Wax/Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Priced per case. Used with polypropylene labels.
    Price: $739.23

  • Intermec Ribbons Ribbon
    Part #: 11232211 | SKU: INT128844

    2.35" x 900' Black Wax Ribbon. Compatible with Desktop Printers. 36 ribbon case. Used with paper labels. Minimum Order Quantity: $350
    Price: $292.94

  • Intermec Duratran II Barcode Label
    Part #: E04889 | SKU: INT10234

    Intermec Duratran II Thermal Transfer Label - 4.5" Width x 6.5" Length - 692/Roll - 3" Core. Minimum Order Quantity: $350
    Price: $242.41

  • Intermec Duratran II Barcode Label
    Part #: E07516 | SKU: INT10207

    Thermal Transfer Labels (4.0 in. x 2.0 in. - Perforated, 2,823 Labels/Roll, 4 Rolls/Case). MOQ: $350
    Price: $49.49
View All Options

Recommended Printheads for Model: Intermec PM23c Barcode Label Printer

  • Honeywell Printhead
    Part #: 714-804S-001 | SKU: HON595429

    Printhead, 2in, 406dpi Assembly, PM23
    MSRP: $727.58 Price: $656.07

  • Intermec Accessory
    Part #: 710-228S-001 | SKU: INT497022

    SPARE PART, NC/NR, PRINTHEAD, 2IN, 203 DPI, PM23,
    $572.97
    See Price in Cart (Why?)

  • Intermec PM23c Printhead
    Part #: 714-803S-001 | SKU: INT364546

    300 dpi, 2" printhead for the PM23
View All Options

Recommended Ribbons for Model: Intermec PM23c Barcode Label Printer

  • Intermec Ribbons Ribbon
    Part #: 13023006 | SKU: INT8466

    Resin Ribbon, Black, 3" x 500', rolls/case: 36, Core Size: 1", For Use With (Labels): Polyester Labels, For Use With (Printer): Industrial
    Price: $28.64

  • Intermec Ribbons Ribbon
    Part #: 12073018 | SKU: INT8456

    ThermaMax 2202 Mid-Range, 3" x 1500' Black Wax-Resin Ribbon. Compatible with Industrial Printers. Single ribbon. Used with polypropylene labels.
    Price: $33.15

  • Intermec Ribbons Ribbon
    Part #: 13072218 | SKU: INT191894

    2.2" x 1500' Black Resin Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with polyester labels. Minimum Order Quantity: $350
    Price: $990.36

  • Intermec Ribbons Ribbon
    Part #: 12033118 | SKU: INT191852

    ThermaMax 2202 Mid-Range, 3.15" x 1500' Black Wax/Resin Ribbon. Compatible with Industrial Printers. 12 ribbon case. Used with polypropylene labels.
    Price: $353.68

  • Intermec Ribbons Ribbon
    Part #: 336P4118 | SKU: INT284356

    RIBBON, 4.09 x 18,024 resin, Ther maMax 3202, -see notes
    Price: $116.90
View All Options
