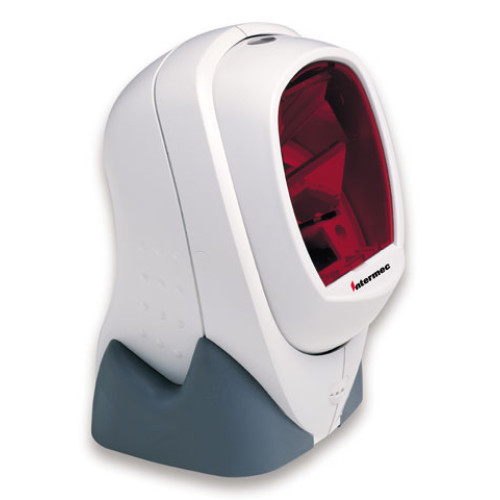

Intermec MaxiScan 2220 Barcode Scanner
Intermec Barcode Label Printer & Intermec Barcode Scanner

Intermec MaxiScan 2220 Barcode Scanner

Intermec MaxiScan 2220 Barcode Scanner

The Intermec MaxiScan 2220 is a versatile omnidirectional scanner designed for use in retail POS automated health care library and other applications. With its compact design and flexible operation modes it's a great choice for a variety of businesses. Hands-free scanning is easy using the 2220 (with its secure rubber base and adjustable rotating head) on a counter or desk. Additionally slots on either side allow you to pick up the 2220 for occasional handheld scanning if you choose. The 2220 packs all the scanning power you'll need despite its compact dimensions. Smaller than a 6 inch (14.2cm) cube the MaxiScan 2220 performs a full 20 line scan pattern with a 20cm adjustable depth of field and 20cm2 scan zone. Intermec's MaxiScan 2220 offers built-in reliability with a scanner window that's replaceable in the field for quick repairs and a two-step sleep mode with separate laser and motor timeouts to conserve power. Like most Intermec scanners the MaxiScan 2220 comes with EasySet setup software for fast on-line or off-line configuration. A universal interface system allows connection to PCs cash registers or other terminals with simple cable and software changes.
Discontinued - Need Assistance
See all options
Intermec MaxiScan 2220 Specs Intermec MaxiScan 2220 Specs (pdf)

__($mfg->name) MaxiScan 2220 Scanner

The Intermec MaxiScanTM 2220 is a versatile omni-directional scanner designed for use in retail, POS, automated healthcare, library and other applications. With its compact design and flexible operation modes, it’s a great choice for a variety of businesses.

Features

  • Convenient omnidirectional orientation
  • Compact dimensions
  • Low power consumption
  • Easy setup configuration

Versatile Scanning Options Hands-free scanning is easy using the 2220 (with its secure rubber base and adjustable rotating head) on a counter or desk.

Big Power, Small Package The 2220 packs all the scanning power you’ll need, despite its compact dimensions. Smaller than a 6 inch (14.2cm) cube, the MaxiScan 2220 performs a full 20 line scan pattern with a 20cm adjustable depth of field and 20cm2 scan zone.

Practical Reliability Intermec’s MaxiScan 2220 offers built-in reliability with a scanner window that’s replaceable in the field for quick repairs and a two-step sleep mode with separate laser and motor timeouts to conserve power.

EasySet Setup Like most Intermec scanners, the __($mfg->name) MaxiScan 2220 comes with EasySet® setup software for fast on-line or off-line configuration. A universal interface system allows connection to PCs, cash registers or other terminals with simple cable and software changes.

Physical Characteristics Height: 14.2cm (5.6”) Width: 9.5cm (3.7”) Depth: 9.0cm (3.5”)STANDARD FEATURES:

The MaxiScan 2220 is a high performance omni-directional bar code scanner for free-standing applications.

Advanced Features Code reconstruction, 2 step sleep mode (laser and motor) for fast wake-up and high reliability, replaceable scan window, firmware updates via flash memory, programmable data format (code identification, preambles and postambles), intercharacter and intermessage delays and many others.

Power Supply: +5VDC +-5%, Current consumption: approx. 200mA (normally powered from host terminal)

Hardware Microprocessor: Custom chip (ASIC inc. DSP processor) for fast signal processing and decoding. Interfaces: All scanner heads support (by choice of cable): Wand emulation, single or dual RS 232 C, Wyse, HP700/xx and PC AT/PS2 wedge to over 400 terminals and PCs. Extensive interface information on application.| Display: Power and good read LED. Good read beeper.

__($mfg->name) MaxiScan 2220 Optical Characteristics Light source: visible laser diode @ 650nm, 0.45mW max output Laser class: 1 IEC 825 / CDRH Class IIa

Software Setup options include EasySet® PC software, by direct connection & bar code printing (custom setup utility), or by conventional bar code setup manualSCANNING PERFORMANCE:

Scan Pattern: 20 lines Scan Rate: 1200 scans /s Minimum X dimension: 0.125mm (5 mil) Depth of field: 0 to 20 cm (8”) EAN/UPC Scan area at max depth of field: 20cm2 PCR: 25% minimum

Accessories Interface cables, spare window (one spare included as standard), external power supplies (option)

Environment Operating Temperature: 0° to 40° C (32° to 104° F) Storage Temperature: -25° to 60° C (-13° to 140° F) Humidity: 10% to 90% non-condensing Drop Survival: multiple drops 1m (3.2’) onto concrete Electrostatic discharge: Ambient light:

Regulatory Approvals All models: Compliant with all European Directives: CE (EN50081-1/ EN50082-1/ EN60950). TÜV-Rheinland Safety certified. USA: FCC Part 15 Certified: Class B digital device. UL listed. Canada: ICES-003, NMB003: Class B digital apparatus. cUL listed. Australia/New Zealand: AS/NZS 3548 C tick marked Other approvals pending. DHHS Standard 21CFR 1040.10 and 1040.11 Class IIa Laser Product IEC 825-1, EN60825-1, Class 1 Laser Product

Laser Caution Label Class IIa Laser Product – Avoid Long Term Viewing of Direct Laser Radiation

Restrictions on Use Some approvals and features may vary by country and may change without notice. Please check with your local Intermec __($mfg->name) MaxiScan 2220 sales office for further information.
Extended Details
Refine Your Options
Shop By
Shopping Options
Manufacturer
  1. Intermec (2)
  1. Intermec MaxiScan 2220 Barcode Scanner

    Intermec MaxiScan 2220 Barcode Scanner
    Part #: 3-430052-00 | SKU: INT960

    MaxiScan M2220 Fixed-Position Scanner (Scanner, RS-232 Cable, Fixed Stand, Color Kit, Spare Window, Operator and Getting Started Guides and CD ROM)
  2. Intermec MaxiScan 2220 Barcode Scanner

    Intermec MaxiScan 2220 Barcode Scanner
    Part #: 3-430057-00 | SKU: INT6177

    MaxiScan M2220 Fixed Position Scanner (with Cable Wedge Y, Color Kit, Spare Window and Din-Mini-Din Adapter Cable)
