Intermec IV7 RFID Reader

Physical Description

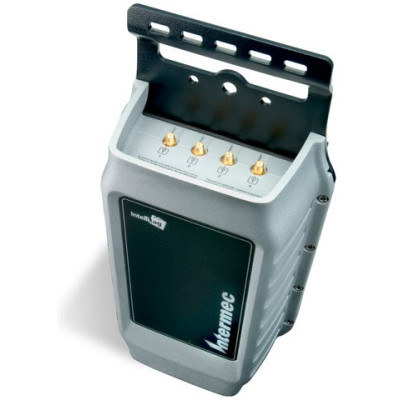

The is a rugged RFID tag reader designed to be mounted on a vehicle for mobile use and operation in the same harsh environment as the CV60 vehicle mount computer.

Physical Characteristics
Length: 34.3 cm (13.5")
Height: 9.5 cm (3.75")
Width: 23.6 cm (9.3")
Weight: 3.08 kg (6.8 lbs)

Standard Features
Antenna Connections
4 connectors - Option-reverse SMA or SMA
Selectable by software

Multiple tag environments
Capable of operation in mixed tag populations: ISO 18000-6b, EPC UHF Gen 2, and EPC Class 1. Configurable for mixed or single tag-type operation. Air interface software on IV7 is downloadable to add Gen 2 and Class 1 air interfaces and to "future-proof" the product as standards evolve and new features become available.

Power Supply: Vehicle DC power 12 to 60V,
4.5 A maximum

Software
Application software for IV7 will reside on the "host" vehicle-mount computer, such as Intermec’s CV60. Application program interface (API), Basic Reader Interface (BRI), demonstration and example appli­cations software are included in the RFID Resource Kit, available through Intermec’s Developers’ Library.

RFID Frequency Options
915 MHz (US FCC), 865 MHz (ETSI 302-208), and 869 MHz (ETSI 300-220)

Communications Interface
RS232

Accessories
Vehicle mount DC power cable kit
Antennas and antenna cables

Environment
Operating Temperature:
-25°C to 55°C (-13°F to 131°F)
Storage Temperature:
-30°C to 75°C (-22°F to 167°F)
Humidity (non-condensing):
10% to 90%
Shock and Vibration Protection: Withstands standard material handling vehicle environments. Meets or exceeds MIL STD 810F
Environmental Rating: IP65

Safety & Regulatory Approvals
ANS INCITS 256:1999 (R2001) - Parts 2, 3.1 & 4.2
ANSI MH10.8.4
ISO/IEC CD18000 Part 4
ISO/IEC WD18000 Part 6
- US/C UL Listed
- TUV/GS Licensed
- CB Report for EN 60950, addressing all national deviations
- FCC OET Bulletin 65, FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields
- CENELEC EN50364/EN50357, European RF Exposure standard
- AS/NZS 2772.1, Australia/New Zealand RF Exposure standard
- Mexico NOM 19

Restrictions on Use
Some approvals and features may vary by country and may change without notice.
