Intermec IF5 Specs
Physical Description
The fixed RFID reader is an intelligent RFID reader that can be factory configured to operate in RFID frequency bands: 869MHz or 915MHz. In addition to performing both read and write functions, the is also capable of running custom applications to filter information from tags, as well as monitor external sensors and control audible and visual indicators.
The fixed RFID reader is an intelligent RFID reader that can be factory configured to operate in RFID frequency bands: 869MHz or 915MHz. In addition to performing both read and write functions, the is also capable of running custom applications to filter information from tags, as well as monitor external sensors and control audible and visual indicators.
Physical Characteristics
Length: 35.6 cm (14 in.)
Width: 23.1 cm (9.1 in.)
Height: 9.53 cm (3.75 in.)
Environment
Operating Temperature:
-25°C to 70°C (-13° F to 158° F)
Storage Temperature:
-30ºC to 75ºC (-22° F to 167° F)
Humidity:
10% to 90% (Non-condensing)
Enclosure: IP53
Standard Features
Communications Interface options: Ethernet 10/100BaseT or
Wireless 802.11g
Operating System: Open Source Linux version 2.4.23
Input/Output Circuits: Four input (0-40VDC) and four output
(0-48VDC .5 amp) circuits, 500ma 12VDC power
Antenna Connections
Four - Reverse SMA, -20dB
software controller
Power
110-240 VAC auto ranging, Power over Ethernet for
controller (option)
Power Supply is internal and included
Duty Cycle: 100%
RFID Frequency Ranges
869 and 915 MHz
Tag Air Interfaces
Intellitag G1 (Fairchild G1)
ISO 18000-6b (Philips i-code HSL)
Philips Version 1.19
EPCglobal UHF Gen 2
Protocols
ANSI INCITS 256:2001
Intermec Basic Reader Interface
Connection to Network
Ethernet, 802.11G or 802.3 wired
Software
Device and Software Management:
UC Davis NetSNMP
DHCP client
Telnet server
Intermec ICCE/ICCU (config settings)
IBM Tivoli
IBM WebSphere Everyplace Device Manager
Wavelink Avalanche
User Programmable Internal Controller for "Edge server" or
"Middleware" apps
Motorola 240 MHz MPC8245, 16 Mbytes of
SDRAM, 4 Mbytes Flash, LINUX OS
Accessories
802.11g radio, antennas, antenna cables,
mounting bracket
Standards
AIAG B-11
ANS INCITS 256:1999 (R2001) - Parts 2, 3.1 & 4.2
ANSI MH10.8.4
ISO/IEC CD18000 Part 4
ISO/IEC WD18000 Part 6
Restrictions On Use
Some approvals and features may vary by country and may change
without notice.
-

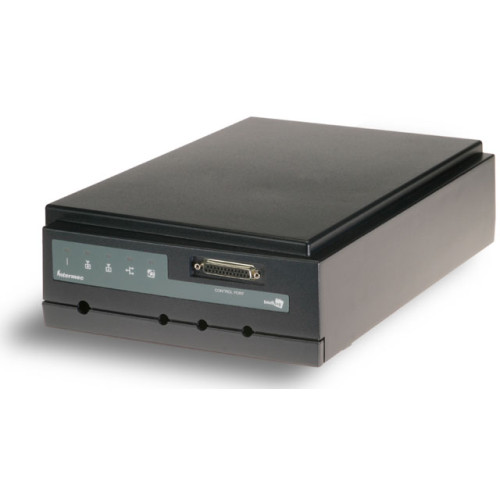

Intermec IF5 RFID Reader
Part #: IF5UD12300000014 | SKU: INT31265IF5, UD: RFID Reader, R2, No Camera, No RAD, NOM, 915 FCC -
Intermec IF5 RFID Reader
Part #: IF5UD12380400014 | SKU: INT37205IF5, Fixed RFID Reader, 802.11g-FCC, No Slot 2 and 915 MHz FCC 1 Watt -
Intermec IF5 RFID Reader
Part #: IF5UD123000A1314 | SKU: INT58878IF5, Fixed RFID Reader (No Radio, Memory Adapter-128MB with WRDI Software and 915 MHz FCC) -
Intermec IF5 RFID Reader
Part #: IF5UD123804A1314 | SKU: INT58879IF5, Fixed RFID Reader (802.11g-FCC, Memory Adapter 128MB with WRDI and 915 MHz FCC 1 Watt)
Recommended Accessories for Model: Intermec IF5 RFID Reader
-
Intermec IF5 Accessory
Part #: 236-057-001 | SKU: INT42379Cable Assembly (6 feet, DB25P/DB25S for GPIO Terminal Box) IF5UCPrice: $57.19 -
Intermec IF5 Accessory
Part #: 203-726-002 | SKU: INT37145General Purpose Input/Output kit -
Intermec IF5 Accessory
Part #: 236-045-001 | SKU: INT42377Cable Assembly (7 meters, SMA Plug/N Plug) for the IF5UC -
Intermec IF5 Accessory
Part #: 236-046-001 | SKU: INT42378Cable Assembly (9 meters, SMA Plug/N Plug) -
Intermec IF5 Spare Parts
Part #: 805-610-001 | SKU: INT42380IA31B (915 6dB, Vertical POL, N RP) for the IF5UC
