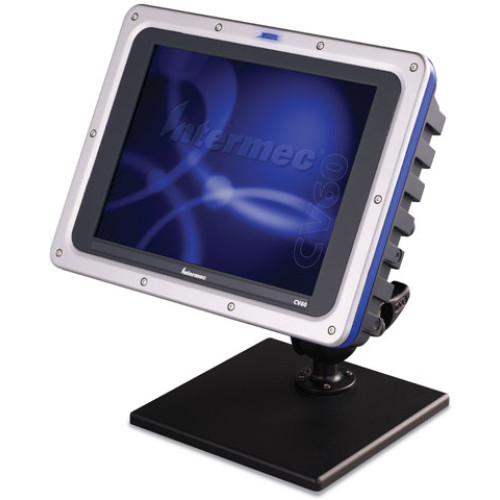

Intermec CV60 Data Terminal
Intermec Barcode Label Printer & Intermec Barcode Scanner

Intermec CV60 Data Terminal

Intermec CV60 Data Terminal

Continuing Intermecs legacy reputation of developing reliable terminals, the CV60 computer excels in the most adverse environments with full PC functionality. The CV60 terminal, either fixed or vehicle mounted, puts wireless supply chain management right where the data is at the dock, on the warehouse floor, in the trailer or in the yard for the toughest material handling applications.
Discontinued - Need Assistance
See all options
Intermec CV60 Specs Intermec CV60 Specs (pdf)

Physical Characteristics
 Height: 27.1cm (10.67”)
Width: 34cm (13.4”)
Depth: 9.5cm (3.7”)
Weight: 5 kg (11 lbs.)

Environmental
 Standard Operating Temperature: -20° to 50° C (-4o to 122o F) – Solid State 0° to 50° C (32o to 122o F) – Rotating
Extreme Operating Temperature: -30° to 50° C (-22o to 122o F) – Solid State HDD (With heated display option)
Storage Temperature: -30° to 70° C (-22o to 158o F)
Humidity: 5 % to 95 % RH Non-condensing
Shock and Vibration Protection: Withstands standard material handling vehicle environments. Meets or Exceeds MIL STD 810F
Rain and Dust Resistance: Sealed to IP65 (Dust tight and jetted water)

Standard Features
 Power: Choice of two external DC/DC converters 6-36 VDC input DC/DC for 12V - 24V systems (gas truck)
15-96 VDC input DC/DC for 24-72V systems (electrical truck)
AC/DC Converter
Uninterruptible Power Supply option for unstable power sources

Hardware
 Memory: 128MB SDRAM standard; expandable to 256MB or 384MB; 512KB Flash
Microprocessor: Intel P-III Ultra Low Power 800MHz embedded processor
Display: Brilliant 12.1” Color TFT 800 x 600 SVGA; 100 degree viewing angle;
300 NIT; Heated Option
User Interface: High resolution, resistive touch panel

Operating Systems
 Windows CE .NET 4.2
Windows XP Professional Edition
Windows XP Embedded

Hard Drive Options
 Solid State drive options for rugged, vehicle / freezer based applications
Shock/Vibration dampening rotating drive option for stationary, standard temperature and select mobile applications

Network Connectivity
 10BaseT/100BaseT Ethernet

Application Connectivity
 Supports Terminal Emulation (TE 2000) applications.
Supports standard application environments including Win32 Microsoft Foundation Classes (MFC), Microsoft .NET Framework and Microsoft .NET Compact

Integrated Radio Options
 Wireless LAN
Data Rates: Up to 54 Mbps per IEEE 802.11g
Standards Compliant:
IEEE 802.11g - 2.4 GHz
IEEE 802.11b (2.4 GHz - DSSS)
Radio Power: 50 mW
Security: WEP, WPA, 802.1x (EAP-TLS, TTLS, LEAP, PEAP)
Certifications: Wi-Fi, WPA, CCX Program
Compliance: FCC Part 15, CE mark

Wireless PAN
 Integrated Bluetooth compatible module

Antenna Options
 Integrated diversity antenna options for LAN, Bluetooth and bar code scanner.
Remote patch LAN antenna
Data Collection Scanner Support
Tethered serial bar code scanner
Tethered RFID scanner
Integrated radio for wireless scanner support

Interfaces
 (2) Standard Serial Ports – DB9
(2) USB Host ports v1.1
(1) PS/2 Keyboard Port
(1) Locking Power Input
On / Off Switch
Audio 3.5mm stereo jack
Microphone In / Mono Output (VoIP ready) 2.5mm jack
Internal Speaker / Beeper
Accessible Expansion Slots
One 6.4cm (2.5”) IDE drive bay
One Solid State type II card Bus slot

Extended Details
Refine Your Options
Shop By
Shopping Options
Manufacturer
  1. Intermec (58)
  1. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60C11EF4003304 | SKU: INT59064

    CV60, Wireless Vehicle Mount Computer (Standard Touch Panel, No Load, System Total 256MB, Windows CE .NET, TE2000 128MB PCMCIA SS, Bluetooth, Internal Antenna and 802.11a/b/g-FCC)
  2. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60A10A84001804 | SKU: INT15505

    Wireless Vehicle Mount Computer (Resistive Touch Panel, 128MB, Windows XP Professional, 20GB Rotary Drive, Bluetooth, No Picolink, Internal Antenna and 802.11g-FCC)
  3. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60A10B54041804 | SKU: INT15506

    CV60 Wireless Vehicle Mount Computer (Resistive Touch Panel Only, 128MB Memory, WindowsXPE, 768MB HDD, Bluetooth, PicoLink Radio Module 04, Internal Antenna and 802.11g-FCC)
  4. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60A10E24001804 | SKU: INT15507

    CV60 Wireless Vehicle Mount Computer (128MB, WindowsCE.NET, 64MB PCMCIA, Bluetooth and 802.11g-FCC)
  5. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60A10B54001804 | SKU: INT15508

    CV60 Wireless Vehicle Mount Computer (Resistive Touch Panel Only, 128MB Memory, WindowsXPE, 768MB HDD, Bluetooth, No PicoLink, Internal Antenna and 802.11g-FCC)
  6. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60A10A84002804 | SKU: INT15509

    CV60 Wireless Vehicle Mount Computer (Resistive Touch Panel, 128MB, WindowsXP Professional, 20GB Rotary Drive, Bluetooth, No Picolink, External Antenna and 802.11g-FCC)
  7. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60A20E24001804 | SKU: INT15510

    CV60 Wireless Vehicle Mount Computer (Resistive Touch with Heater, No Load-128MB Total, WINCE.net TE2000, Bluetooth, No Picolink, Internal Antenna and 802.11g-FCC)
  8. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60A12A84000000 | SKU: INT15511

    CV60 Wireless Vehicle Mount Computer (Resistive Touch Panel, 256MB, WindowsXP Professional, 20GB Rotary Drive, Bluetooth, No Picolink, No Antenna and No Device 2)
  9. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60A10B54001808 | SKU: INT15512

    CV60 Wireless Vehicle Mount Computer (Resistive Touch Panel Only, 128MB Memory, WindowsXPE, 768MB SS IDE, Bluetooth, No PicoLink, Internal Antenna and 802.11g-Mexico)
  10. Intermec CV60 Data Terminal

    Intermec CV60 Data Terminal
    Part #: CV60A11B54002804 | SKU: INT15513

    CV60 Wireless Vehicle Mount Computer (Resistive Touch Panel, 128MB, WindowsXPe Standard, 768MB SS IDE Drive, Bluetooth, No Picolink, External Antenna and 802.11g-FCC)

Items 1 to 10 of 58 total

Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6

Recommended Accessories for Model: Intermec CV60 Data Terminal

  • Intermec CV60 Power Device
    Part #: 203-779-001 | SKU: INT31155

    Power supply - DC/DC 6-60V - For use with powered trucks - Compatible with CV30
    MSRP: $628.62 Price: $565.93

  • Intermec CV60 Accessory
    Part #: G9A-KB001-02 | SKU: INT190007

    CV60 - Keyboard Mounting Kit
    Price: $203.77

  • Intermec CV30 Accessory
    Part #: 236-185-001 | SKU: INT58984

    RS-232 (Serial) Cable - 6.5 feet - 9 Pin - Coiled - Requires External Power supply (RS-232 Serial Connection to Terminals Providing Non-Powered 9 Pin D-Sub-Connector) Ordered Separately
    Price: $92.51

  • Intermec CV30 Accessory
    Part #: 236-198-001 | SKU: INT58988

    Cable, RS-232 12 ft. 9pin coil Requires External Power supply (RS-232 serial connection to terminals providing non-powered 9 pin D-Sub connector. Requires power supply unit be ordered separately.)
    Price: $122.15

  • Intermec CV60 Accessory
    Part #: 203-784-002 | SKU: INT66461

    Vehicle Mounting Kit (STD) for the CV60
    Price: $220.68
