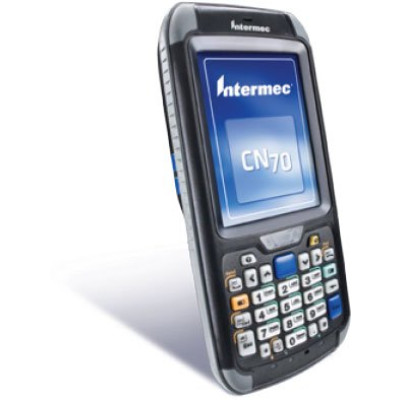

Intermec CN70 RFID Reader

Physical Characteristics

Length:
CN70 RFID: 16.9 cm (6.65 in)
CN70e RFID: 19.5 cm (7.66 in)
CK70 RFID: 23.7 cm (9.33 in)
Width:
CN70 RFID: 8.0 cm (3.15 in)
CN70e RFID: 8.0 cm (3.15 in)
CK70 RFID: 8.0 cm (3.16 in)
Depth:
CN70 RFID: 3.4 cm (1.34 in)
CN70e RFID: 3.4 cm (1.34 in)
CK70 RFID: 4.3 cm (1.69 in)
Weight:
CN70 RFID: 450 g (15.9 oz) with battery
CN70e RFID: 491 g (17.3 oz) with battery
CK70 RFID: 562 g (19 oz) with battery

Environment

Operating Temperature: -20° C to +60° C* (-4F° F to +140° F) - Max Ambient: 50° C T6
Storage Temperature: -30° C to +70° C (-22° F to +158° F)
Charging Temperature: +5° C to +35° C (41° F to 95° F)
Relative Humidity: Non-condensing, 95%
Rain and Dust Resistance: IP67
Drop Spec: 2.4m (8 ft.) to concrete per MILSTD 810G; 1.8m (6 ft.) to concrete across operating temperature range per MIL-STD 810G; 2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge

Operating System

Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology, Getting started information: www.windowsmobile.com/getstarted

Microprocessor

Texas Instruments 1GHz OMAP3 multi-engine processor architecture

Memory and Storage

RAM Memory: 512 MB RAM
1 GB Flash
Customer-accessible micro-SD slot for removable memory cards up to 32 GB

Display

• 8.9 cm (3.5 in) Transmissive VGA
• 480 x 640 pixels
• High-Durability Touch Screen
• 65,536 (16bit RGB) Colors
• LED Backlight
• Ambient Light Sensor

Communications Interface

USB – Full Speed 2.0 Host©
USB – Full Speed 2.0 Client©
IrDA

Software

Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
Device Health Monitoring: Remote access requires SmartSystem Management option
Application Development: Intermec Developer Library www.intermec.com/dev

Interfaces

Wireless: Wireless LAN: IEEE®802.11 a/b/g/n Dual Band WLAN
Security: WiFi Certified for WPA and WPA2, WAPI Certified
Authentication: 802.1x
Cisco Compatibility: CCXv4
Encryption: WEP (64 or 128 bit), AES, TKIP

Wireless PAN: Integrated Bluetooth® Class II, Version 2.1+EDR
Operating channels: 0 to 78 (2402-2480 MHz)
Data Rates: 1, 2, 3 Mbps
Antenna: Internal

Scanning Performance

Scan Engine: EA30 high performance motion tolerant 2D Imager; white LED illumination; red laser aimer optimized for all lighting conditions; 35 degree downward scan angle; capable of scanning all common 1D and 2D barcodes, 1D as small as 5 mil, PDF as small as 6.6 mil, DataMatrix as small as 7.5 mil, and standard UPC codes from distances up to 33 cm (13 in)
