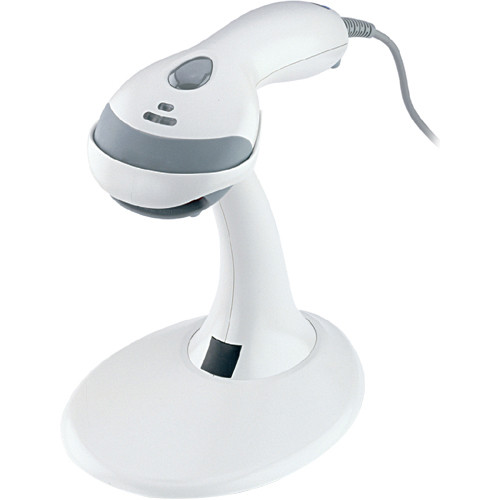

Honeywell MS9540 Voyager Barcode Scanner
Part #: MS9540-00 | SKU: HON210560

With a futuristic design and high-performance scanning technology the MS9540 VoyagerCG is equipped with all of the features of the MS9520 Voyager with the addition of Metrologic's exclusive CodeGate data transmission technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications including Point-of-Sale document processing inventory and menu scanning just to name a few. CodeGate works hand in hand with Metrologic's automatic-triggering scheme. Simply present a bar code to the scanner; place the high-visibility laser line on the bar code then press the CodeGate button to transmit the data to the host system. It's as easy as one two three! Equipped with both In-Stand and Out-of-Stand operation Voyager can be used as both a hand-held and fixed projection scanner. While resting in the stand the CodeGate button is deactivated making VoyagerCG a presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. With aggressive performance and lightweight design VoyagerCG is far and away the most advanced scanner on the market today!

Honeywell MS9540 Voyager Barcode Scanner

Part Details: Honeywell VoyagerCG MS9540 Handheld Bar Code Reader - Cable Connectivity - 1D - Laser - Single Line - Light Gray

Additional Information

Connectivity No
Form Factor No
Included Cables USB
Manufacturer Honeywell
Model Name MS9540 Voyager
Product Condition No
Ruggedness General Purpose
Scan Pattern No
Scanner Capability 1D
Scanner Type Laser
Specialty Encoding None

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Reads Standard 1D and GS1 DataBar Symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omni directional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omni directional
    • Reads Standard 1D and GS1 DataBar Symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omni directional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omni directional
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 2"@5.20 mil
    • 0 mil - 5"@7.50 mil
    • 0 mil - 6.50"@10.40 mil
    • 0 mil - 8"@13 mil
    • 1" - 10"@21 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9540
  • Product Name: VoyagerCG MS9540 Handheld Barcode Reader
  • Product Line: VoyagerCG

Physical Characteristics

  • Height: 2.2"
  • Width: 3.1"
  • Depth: 7.8"
  • Color: Light Gray
  • Weight (Approximate): 5.30 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS

Warranty

  • Limited Warranty: 5 Year
