Honeywell MS7820 Solaris Barcode Scanner Honeywell MS7820 Solaris Barcode Scanner
Honeywell Barcode Scanner, Mobile Handheld Computer & Verifier

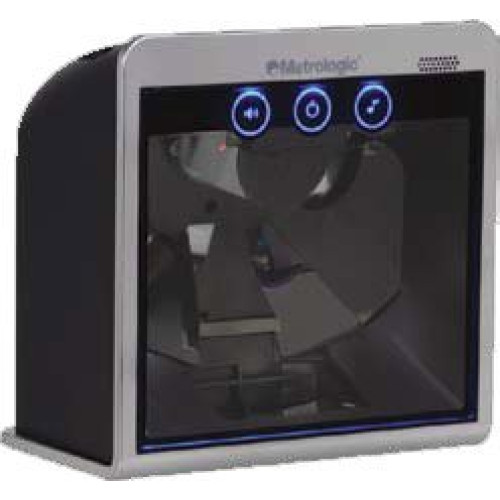

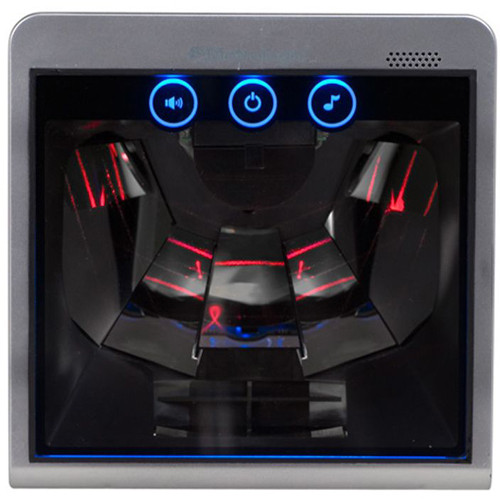

Honeywell MS7820 Solaris Barcode Scanner
Part #: MS7820-118 | SKU: HON210706

While MS7820 Solaris innovative flat-screen design maximizes scanning effectiveness by preventing debris accumulation, touch-screen technology minimizes wear and tear associated with standard scanner switches. MS7820 Solaris complements the design and engineering of Solaris with superior technical support and an industry-leading warranty. Solaris symbolizes Metrologic's four-decade commitment to producing advanced and reliable barcode scanning technology.

Honeywell MS7820 Solaris Barcode Scanner

Part Details: Honeywell Solaris MS7820 Desktop Bar Code Reader - Cable Connectivity - 1D - Laser - Omni-directional - Serial, USB, IBM 46XX - Dark Gray
Need a different version of the Honeywell MS7820 Solaris Barcode Scanner? View all 14 configurations

Additional Information

Connectivity No
Form Factor Presentation
Manufacturer Honeywell
Model Name MS7820 Solaris
Product Condition No
Ruggedness General Purpose
Scan Pattern No
Scanner Capability 1D
Scanner Type Laser, Omnidirectional
Honeywell MS7820 Solaris Specs Honeywell MS7820 Solaris Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Reads standard 1D and GS1 DataBar symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
    • Reads standard 1D and GS1 DataBar symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 1.80"@5.20 mil
    • 0 mil - 6"@7.50 mil
    • 0 mil - 9"@10.40 mil
    • 0 mil - 10"@13 mil
    • 0 mil - 11"@26 mil

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS7820
  • Product Name: Solaris MS7820 Desktop Barcode Reader
  • Product Line: Solaris

Physical Characteristics

  • Height: 6"
  • Width: 6"
  • Depth: 3.6"
  • Color: Dark Gray
  • Weight (Approximate): 1.54 lb

Interfaces/Ports

  • Host Interface:
    • Serial
    • USB
    • IBM 46XX

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
Extended Details

Recommended Accessories for Model: Honeywell MS7820 Solaris Barcode Scanner

  • Honeywell Cables Accessory
    Part #: 57-57499-3 | SKU: HON83558

    Honeywell 57-57499-3 Serial Aux Cable - Serial Data Transfer Cable - 10-pin RJ-45 Serial - Black
    Price: $21.94

  • Honeywell MS7820 Solaris Accessory
    Part #: 46-00867 | SKU: HON48924

    Replacement Protective Window (for the MS7820 Solaris). Non-Cancelable/Non-Returnable.
    MSRP: $49.68 Price: $41.47

  • Honeywell MS7820 Solaris Accessory
    Part #: 46-00868 | SKU: HON68142

    Flex Stand (for the MK7820 Solaris). Non-Cancelable/Non-Returnable.
    MSRP: $40.18 Price: $36.09

  • Honeywell MS7820 Solaris Accessory
    Part #: 46-00869 | SKU: HON243114

    7820 SOLARIS, STAND, PRESENTATION SCANNING (3") FLEX POLE WITH WEIGHTED BASE AND MOUNTING OPTION, GRAY. Non-Cancelable/Non-Returnable.
    MSRP: $44.20 Price: $38.82

  • Honeywell MS7820 Solaris Power Device
    Part #: PS-12-1250W-A-6 | SKU: HON496979

    MS7820 AND MS7580, ACCESSORY, LEVEL 6 POWER SUPPLY, NA PLUG, 1.25A @ 12VDC, 90-255VAC @ 50-60HZ, NOT COMPATIBLE WITH 7580G, REPLACES PS-12-1250W-A
    MSRP: $56.60 Price: $46.34
