Honeywell Dolphin 9500 & 9550 Mobile Computer Honeywell Dolphin 9500 & 9550 Mobile Computer
Honeywell Barcode Scanner, Mobile Handheld Computer & Verifier

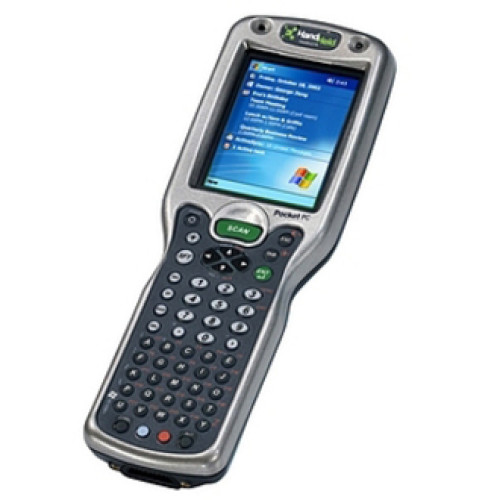

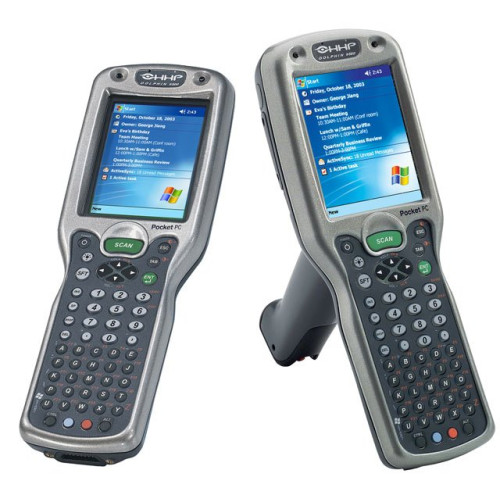

Honeywell Dolphin 9500 & 9550 Mobile Computer
Part #: 9500LWP-131-C30 | SKU: HON29948

Hand Held Products introduces the Dolphin 9500 and 9550 Mobile computers. More powerful and rugged than any portable computing device available, the new Dolphin 9500-9550 mobile computers significantly raise the bar in the field of mobile data collection.

Honeywell Dolphin 9500 & 9550 Mobile Computer

Part Details: Honeywell Dolphin 9500 Mobile Computer - Intel XScale 400 MHz - 64 MB RAM - 32 MB Flash - LCD - 56 Keys - Alphanumeric Keyboard - Wireless LAN - Bluetooth
Need a different version of the Honeywell Dolphin 9500 & 9550 Mobile Computer? View all 160 configurations

Additional Information

Data Collection Type Batch
Display Resolution No
Manufacturer Honeywell
Model Name Dolphin 9500 & 9550
Network Connectivity Bluetooth
Operating System No
Product Condition No
RAM Memory No
Scanner Type No
Style No
Honeywell Dolphin 9500 & 9550 Specs Honeywell Dolphin 9500 & 9550 Specs (pdf)

Technical Information

  • Operating System: Windows Mobile 2003 for Pocket PC 2nd Edition
  • Processor: Intel PXA255 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 128 bit
    • PEAP
    • EAP/TLS
    • AEGIS Client
    • LEAP
    • MD5
    • TLS
    • TTLS
  • Scanner Type: Imager Standard Range
  • Symbologies Supported:
    • Australian Post
    • Aztec Mesa
    • Aztec
    • British Post
    • Canadian Post
    • China Post
    • Codabar
    • Codablock F
    • Code 11
    • Code 128
    • Code 16K
    • Code 3 of 9
    • Code 32 Pharmaceutical
    • Code 93
    • Composite Code
    • DataMatrix
    • EAN with Extended Coupon Code
    • EAN Add-ons
    • EAN-UCC Composite
    • EAN-13
    • Interleaved 2 of 5
    • Japanese Post
    • KIX(Netherlands) Post
    • Korea Post
    • Matrix 2 of 5
    • MaxiCode
    • OCR
    • OCR-A
    • OCR-B
    • PDF 417
    • Planet Code
    • Plessey
    • PosiCode
    • Postnet
    • QR Code
    • RSS
    • RSS-14
    • Straight 2 of 5 Industrial
    • Straight 2 of 5 IATA
    • Telepen
    • Trioptic
    • UCC/EAN 128
    • UPC
    • UPC-A
    • China Postal Code

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Dolphin
  • Product Name: Dolphin 9500 Mobile Computer

Physical Characteristics

  • Display: Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320 Portrait Mode
  • User Accessible Expansion Slot: SD Card Slot
  • Keyboard: 56 Key Full Alphanumeric Keypad Integrated
  • Battery Capacity: 14.8 Wh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.45" (88mm) x 9.6" (244mm) x 2.27" (58mm)

Agency Approvals

  • Agency Approvals:
    • FCC Part 15.247
    • RSS 210
    • FCC Part 24
    • RSS 133
    • EN 301 511: 2000
    • EN 301 489-1 (2002-08)
    • EN 301 489-7 (2002-08)
    • EN 60950:2000
    • EN 50361:2001

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11b FCC Regulatory Domain
    • WWAN GSM/GPRS (Tri-Band 900/1800/1900 MHz)
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD): 15kV Contact Discharge
  • Drop Spec: 5' To Concrete

Other

  • Additional Information:
    • USB
    • RS232
    • IrDA
    • Integrated Speaker
    • Integrated Microphone
    • Headset Jack

Memory

  • RAM Memory: 64MB
  • Flash Memory: 32MB

Warranty

  • Manufacturer Warranty: 2 Year(s) Limited
  • Warranty Details: 1 Year Warranty On Touch Screen
Extended Details

Recommended Accessories for Model: Honeywell Dolphin 9500 & 9550 Mobile Computer

  • Honeywell Accessories Power Device
    Part #: 77900506E | SKU: HON27568

    Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0ft) - US . Non-Cancelable/Non-Returnable.
    Price: $21.40

  • Honeywell Dolphin 9500 & 9550 Series Accessory
    Part #: 95X0-USB-STARTER | SKU: HON21581

    Dolphin 9500/9550 USB Starter Kit. Includes everything you need to run your Dolphin 9500/9550: charging/communications cradle, USB cable, US power supply, line cord and spare battery charging port.

  • Honeywell Dolphin 9500 & 9550 Series Spare Parts
    Part #: 31205381-01E | SKU: HON243110

    Dolphin 9500, Power Supply/Power Cord For 9500-Nb-1E, Net Base Kit
    Price: $126.64

  • Honeywell Dolphin 9500 & 9550 Series Spare Parts
    Part #: 9500BELTE | SKU: HON52221

    Holster Belt For Dolphin 9500. Non-Cancelable/Non-Returnable.
    Price: $22.65

  • Honeywell Dolphin 9500 & 9550 Series Accessory
    Part #: KITSCREENPROTECTE | SKU: HON31783

    Dolphin 9500 Industrial Grade Screen Protector Kit; includes 15 screen protectors
    Price: $26.13
