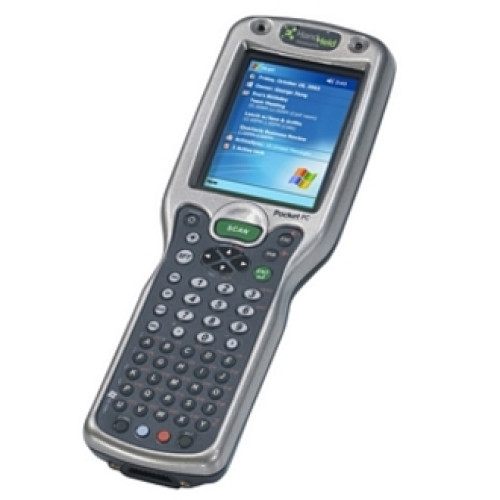

Honeywell Dolphin 9500 & 9550 Mobile Computer Honeywell Dolphin 9500 & 9550 Mobile Computer
Honeywell Barcode Scanner, Mobile Handheld Computer & Verifier

Honeywell Dolphin 9500 & 9550 Mobile Computer
Part #: 9500L00-131-C30 | SKU: HON9175

Hand Held Products introduces the Dolphin 9500 and 9550 Mobile computers. More powerful and rugged than any portable computing device available, the new Dolphin 9500-9550 mobile computers significantly raise the bar in the field of mobile data collection.

Honeywell Dolphin 9500 & 9550 Mobile Computer

Part Details: Wireless Mobile Computer (802.11b WLAN Radio, NO WWAN Radio, IT4000 Standard Range Imager with Green Aimer and Full Imaging - 1D and 2D, 56-Key Full Alphanumeric Keypad, 64MB RAM, 32MB Flash, TFT Color Display with Industrial Resisitve Touch Panel, Microsoft PocketPC OS and Battery)
Need a different version of the Honeywell Dolphin 9500 & 9550 Mobile Computer? View all 160 configurations

Additional Information

Data Collection Type Batch
Display Resolution No
Manufacturer Honeywell
Model Name Dolphin 9500 & 9550
Operating System No
Product Condition No
RAM Memory No
Scanner Type No
Style No
Honeywell Dolphin 9500 & 9550 Specs Honeywell Dolphin 9500 & 9550 Specs (pdf)

Technical Information

  • Operating System: Windows Mobile 2003 2nd Edition
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 128 bit
    • LEAP
    • MD5
    • TLS
    • TTLS
    • PEAP
    • WEP
  • Scanner Type: Imager Standard Range - IT4100 with Green Aimer
  • Symbologies Supported:
    • Australian Post
    • Aztec
    • British Post
    • Canadian Post
    • China Post
    • Codabar
    • Codablock F
    • Code 11
    • Code 128
    • Code 16K
    • Code 3 of 9
    • Code 32 Pharmaceutical
    • Code 93
    • Composite Code
    • DataMatrix
    • EAN Add-ons
    • EAN with Extended Coupon Code
    • UCC/EAN
    • EAN-13
    • Interleaved 2 of 5
    • Japanese Post
    • KIX(Netherlands) Post
    • Korea Post
    • Matrix 2 of 5
    • MaxiCode
    • OCR
    • OCR-A
    • OCR-B
    • PDF 417
    • Planet Code
    • Plessey Code
    • PosiCode
    • Postnet
    • QR Code
    • RSS
    • RSS-14
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic
    • UCC/EAN 128
    • UPC
    • Aztec Mesa
    • China Postal Code

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Dolphin
  • Product Name: Dolphin 9500 Mobile Computer

Physical Characteristics

  • Display: Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320 Portrait Mode
  • User Accessible Expansion Slot: SD Card Slot
  • Keyboard: 56 Key Full Alphanumeric Integrated
  • Battery Capacity: 14.8 Wh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.45" (88mm) x 9.6" (244mm) x 1.66" (42mm)
  • Weight: 20.2 oz

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD): 15kV All Surfaces Discharge
  • Drop Spec: 5' To Concrete Multiple

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b FCC Regulatory Domain
  • Maximum RF Data Rate Supported: 11 Mbps
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz

Warranty

  • Manufacturer Warranty: 2 Year(s) Limited
  • Warranty Details: 1 Year Warranty On Touch Screen

Memory

  • RAM Memory: 64MB
  • Flash Memory: 32MB

Other

  • Additional Information: Communication Ports: USB RS-232 IrDA
  • Package Contents: Dolphin 9500 Mobile Computer Main Battery Pack (7.4v Li-ion) Microsoft Companion CD Quick Start Guide

Agency Approvals

  • Agency Approvals: FCC CE Radio Country: US/Canada: R&TTE
Extended Details

Recommended Accessories for Model: Honeywell Dolphin 9500 & 9550 Mobile Computer

  • Honeywell Accessories Power Device
    Part #: 77900506E | SKU: HON27568

    Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0ft) - US . Non-Cancelable/Non-Returnable.
    Price: $21.40

  • Honeywell Dolphin 9500 & 9550 Series Accessory
    Part #: 95X0-USB-STARTER | SKU: HON21581

    Dolphin 9500/9550 USB Starter Kit. Includes everything you need to run your Dolphin 9500/9550: charging/communications cradle, USB cable, US power supply, line cord and spare battery charging port.

  • Honeywell Dolphin 9500 & 9550 Series Spare Parts
    Part #: 31205381-01E | SKU: HON243110

    Dolphin 9500, Power Supply/Power Cord For 9500-Nb-1E, Net Base Kit
    Price: $126.64

  • Honeywell Dolphin 9500 & 9550 Series Spare Parts
    Part #: 9500BELTE | SKU: HON52221

    Holster Belt For Dolphin 9500. Non-Cancelable/Non-Returnable.
    Price: $22.65

  • Honeywell Dolphin 9500 & 9550 Series Accessory
    Part #: KITSCREENPROTECTE | SKU: HON31783

    Dolphin 9500 Industrial Grade Screen Protector Kit; includes 15 screen protectors
    Price: $26.13
