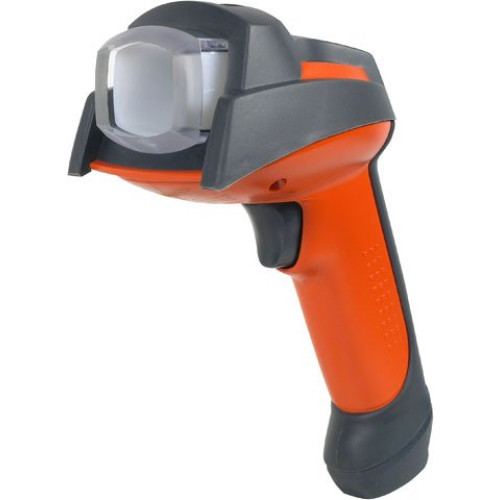

Honeywell DPM 6320 Barcode Scanner
Part #: 6320IDP351S | SKU: HON20831

DPM identification for part traceability demands rugged, self-contained readers that perform consistently on all types of codes and parts. The 6300 Series Direct Part Mark (DPM) Readers from Hand Held Products are the only solutions in the industry that read everything from the most challenging DPM codes to the easiest printed bar codes. The 6300 Series includes the 6300 corded and 6320 cordless models both powered by Adaptus Imaging Technology 5.0 the world's leading technology brand for image-based bar code reading. The Adaptus Imaging 5.0 platform allows the 6300 DPM readers to optimally illuminate marks of any type, on any surface. Outstanding ergonomics, durability and reading performance combine to make these readers the clear choice for customers who demand best-in-class performance from their DPM solutions.

Honeywell DPM 6320 Barcode Scanner

Part Details: 6320 Direct Part Mark Cordless Reader (Imager with RS232 Interface)

Need a different version of the Honeywell DPM 6320 Barcode Scanner? View all 4 configurations

Additional Information

Included Cables	USB
Manufacturer	Honeywell
Model Name	DPM 6320
Product Condition	No
Specialty Encoding	None

Honeywell DPM 6320 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Symbologies Supported:
- DataMatrix
- QR Code
- EAN-13
- UPC-A
- EAN-8
- UPC-E
- Interleaved 2 of 5
- Code 39
- Code 128
- Code 93
Scanner Type: Imager
Interface Options: Bluetooth
Interface Connectivity: Cordless
Cordless Range: 33ft
Scan Pattern: Omnidirectional
Input Voltage: 9 V DC
Depth of Field:
- 0 - 1.4"@5mils
- 0 - 2.1"@10mils
- 0 - 3"@15mils
- 0 - 3.8"@20mils

General Information

Manufacturer: Hand Held Products
Product Line: Direct Part Mark
Product Name: Direct Part Mark 6320 Barcode Scanner

Physical Characteristics

Dimensions: 6.9" (175.26mm) x 5.3" (134.62mm) x 3.3" (83.82mm)
Weight:
- 8.8 oz - base station
- 11.6 oz - with battery
Color: Orange

Agency Approvals

Agency Approvals:
- CE
- FCC
- UL
- CSA

Environmental Conditions

Temperature:
- 32Â°F (0Â°C) to 122Â°F (50Â°C) Operating
- -40Â°F (-40Â°C) to 140Â°F (60Â°C) Storage
Humidity: 0 to 95% Non-condensing

Warranty

Manufacturer Warranty: 18 Month(s)

Extended Details
