Honeywell 4820i Barcode Scanner Honeywell 4820i Barcode Scanner Honeywell 4820i Barcode Scanner Honeywell 4820i Barcode Scanner Honeywell 4820i Barcode Scanner
Honeywell Barcode Scanner, Mobile Handheld Computer & Verifier

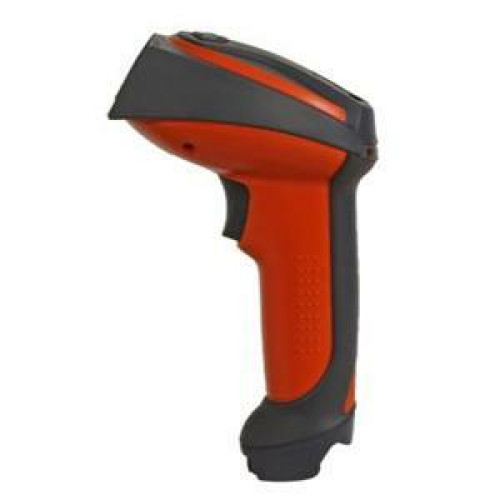

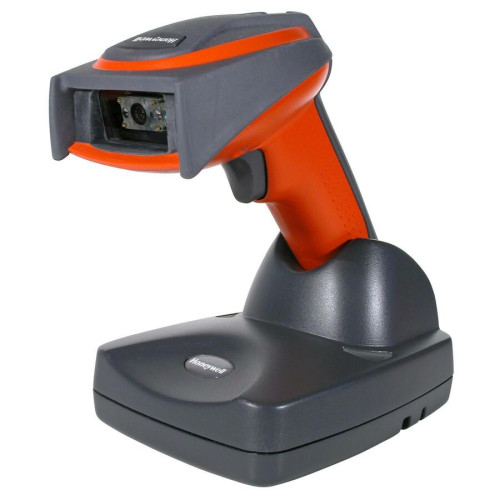

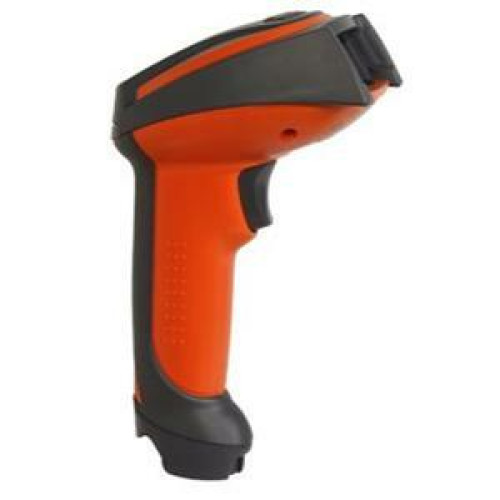

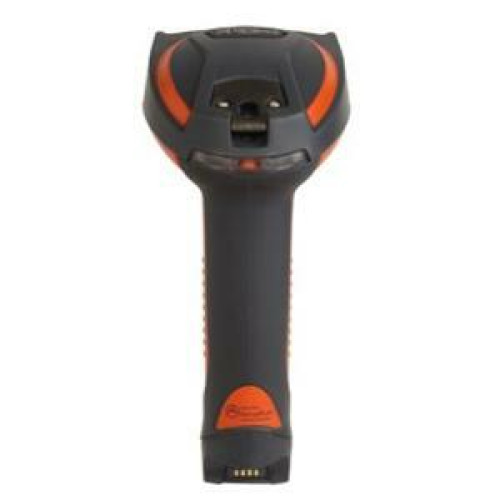

Honeywell 4820i Barcode Scanner
Part #: 4820ISR-USBKITAE | SKU: HON27641

The 4820i Industrial Cordless 2D Imager is designed to provide unmatched data collection performance and versatility for applications that demand maximum reliability in the harshest working environments.

Honeywell 4820i Barcode Scanner

Part Details: USB Kit - Cordless - 2D Imager - Charging and Communication base - USB cable - Power suppply
Need a different version of the Honeywell 4820i Barcode Scanner? View all 9 configurations

Additional Information

Color No
Communication Range No
Communication Type No
Connection Bluetooth, USB
Connectivity No
Form Factor No
Included Cables USB
Manufacturer Honeywell
Model Name 4820i
Product Condition No
Ruggedness No
Scan Pattern No
Scanner Capability 2D
Scanner Type No
Specialty Encoding None
Honeywell 4820i Specs Honeywell 4820i Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 35 mil
  • Depth of Field:
    • 3" - 7.10"@8.30 mil - Linear
    • 1.60" - 12.70"@13 mil - UPC
    • 4" - 5.70"@6.60 mil - PDF417
    • 2.60" - 8.50"@10 mil - PDF417
    • 1.80" - 9.70"@15 mil - PDF417
    • 1.50" - 12.50"@35 mil - Maxi Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4820i
  • Product Name: 4820i Barcode Reader

Physical Characteristics

  • Height: 6.5"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Orange
  • Weight (Approximate): 9.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 4820i Barcode Reader
    • Cordless Base
    • North America Power Cord
    • North America Power Supply
    • Straight USB Cable
    • User Documentation
    • 4820i Barcode Reader
    • Cordless Base
    • North America Power Cord
    • North America Power Supply
    • Straight USB Cable
    • User Documentation
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise
    • RoHS
  • Additional Information:
    • Supported Interfaces:
    • Keyboard Wedge
    • USB
    • Serial
    • Wand Emulation
    • IBM 46XX

Power Description

  • Input Voltage: 4.2 V DC
  • Power Source: Battery

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
Extended Details

Recommended Accessories for Model: Honeywell 4820i Barcode Scanner

  • Hand Held ImageTeam 4800 Accessory
    Part #: 42206161-01E | SKU: 24928

    USB cable (Type A), 8.5', Straight
    Price: $26.74

  • Honeywell Accessories Power Device
    Part #: 77900506E | SKU: HON27568

    Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0ft) - US . Non-Cancelable/Non-Returnable.
    Price: $21.40

  • Honeywell Cables Accessory
    Part #: 42206422-01E | SKU: HON27574

    Cable: RS232 TTL, black, DB9, 2.3m (7.7'), straight, 5v external power
    MSRP: $72.34 Price: $59.70

  • Honeywell 4820 Accessory
    Part #: MB4-BAT-SCN01NAD06 | SKU: HON468255

    4-Slot Battery Charger - Includes power supply and mounting screws - Compatible with Honeywell 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i batteries
    MSRP: $577.62 Price: $473.97

  • Honeywell Granit 1911i & 1910i Accessory
    Part #: MB4-BAT-SCN01NAW06 | SKU: HON496206

    4 bay battery charger - Compatible with Granit 1911i, Voyager 12xxg, Xenon 1902, 1952, Granit 1981i, Voyager 1452g, 1472g,3820, 3820I, 4820, 4820I, and 6320DPM - Mounting screws - Wallmount Power supply
    MSRP: $561.28 Price: $460.56
