Additional Information
| Included Cables | USB |
|---|---|
| Manufacturer | Honeywell |
| Model Name | 4820i |
| Product Condition | No |
| Specialty Encoding | None |

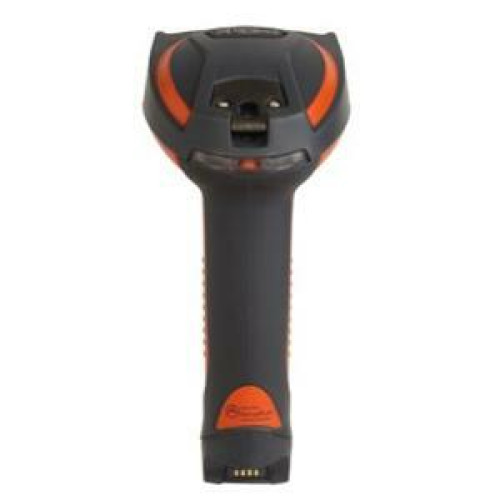

Honeywell 4820i Specs
Technical Information
- Form Factor: Handheld Scanner
- Barcode Dimension:
- 1D/2D
- 1D
- 2D
- Resolution: 15 mil(s)
- Symbologies Supported:
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- QR Code
- Aztec
- Aztec Mesas
- Code 49
- EAN-UCC Composite
- Codabar
- Code 39
- Interleaved 2 of 5
- Code 93
- Code 128
- UPC
- EAN
- RSS
- Coda Block
- Postnet
- Planet Code
- British Post
- Canadian Post
- Japanese Post
- KIX(Netherlands) Post
- OCR-A
- OCR-B
- Scanner Type: Imager
- Interface Options:
- Keyboard Wedge
- USB
- RS-232
- Wand Emulation
- TTL
- IBM 46XX
- Interface Connectivity: Cordless
- Scan Pattern:
- Omnidirectional
- Omni-directional
- Input Voltage: 4.2 V DC
- Power Supply: Internal Battery
- Depth of Field:
- 2 - 6"@7.5mils - Linear
- 1.5 - 8.4"@13mils - UPC
- 2.3 - 5.5"@6.6mils - PDF 417
- 1.7 - 7.1"@10mils - PDF 417
- 1.3 - 7"@15mils - DataMatrix
- 1.7 - 6.7"@15mils - QR Code
- 2" - 6"@7.50 mil - Linear
- 1.50" - 8.40"@13 mil - UPC
- 2.30" - 5.50"@6.60 mil - PDF417
- 1.70" - 7.10"@10 mil - PDF417
- 1.30" - 7"@15 mil - Data Matrix
- 1.70" - 6.70"@15 mil - QR Code
- Connectivity Technology: Wireless
- Light Source: LED
- Image Sensor: Imager
- Barcode Symbology Supported:
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- QR Code
- Aztec
- Aztec Mesas
- Code 49
- EAN-UCC Composite
- Codabar
- Code 39
- Interleaved 2 of 5
- Code 93
- Code 128
- UPC
- EAN
- RSS
- Coda Block
- Postnet
- Planet Code
- British Post
- Canadian Post
- Japanese Post
- KIX(Netherlands) Post
- OCR-A
- OCR-B
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- QR Code
- Aztec
- Aztec Mesas
- Code 49
- EAN-UCC Composite
- Codabar
- Code 39
- Interleaved 2 of 5
- Code 93
- Code 128
- UPC
- EAN
- RSS
- Coda Block
- Postnet
- Planet Code
- British Post
- Canadian Post
- Japanese Post
- KIX(Netherlands) Post
- OCR-A
- OCR-B
- Maximum Scan Resolution: 15 mil
General Information
- Manufacturer:
- Product Name:
- 4820i Barcode Scanner
- 4820i Barcode Reader
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Product Model: 4820i
Physical Characteristics
- Dimensions: 6.5" (165.1mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
- Weight:
- 9.6 oz
- 8.8 oz - Base without cable
- Color:
- Orange
- Orange
- Height: 6.5"
- Width: 3.2"
- Depth: 5.3"
- Weight (Approximate): 9.60 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Package Contents:
- 4820i Barcode Scanner
- Cordless Base
- North America Power Cord
- North America Power Supply
- Straight Keyboard Wedge Cable
- User Documentation
- 4820i Barcode Reader
- Cordless Base
- North America Power Cord
- North America Power Supply
- Straight Keyboard Wedge Cable
- User Documentation
- 4820i Barcode Reader
- Cordless Base
- North America Power Cord
- North America Power Supply
- Straight Keyboard Wedge Cable
- User Documentation
- Cables Included: Keyboard Wedge
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED Safety: Class 1
- UL
- cUL
- TÜV
- 2005 Sunrise
- RoHS
- Additional Information:
- Supported Interfaces:
- Keyboard Wedge
- USB
- Serial
- Wand Emulation
- IBM 46XX
Agency Approvals
- Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED Safety: Class 1
- UL
- cUL
- TÃ
