Honeywell 4800i Barcode Scanner Honeywell 4800i Barcode Scanner Honeywell 4800i Barcode Scanner
Honeywell Barcode Scanner, Mobile Handheld Computer & Verifier

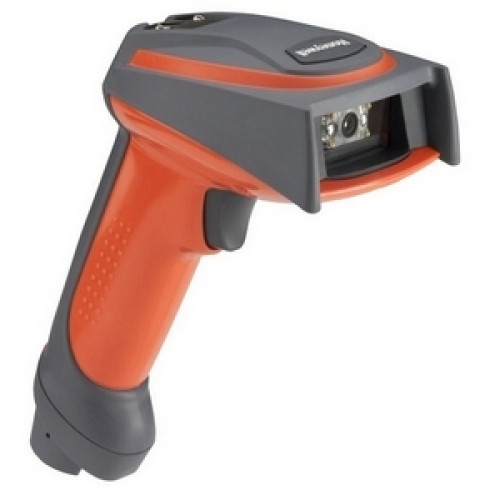

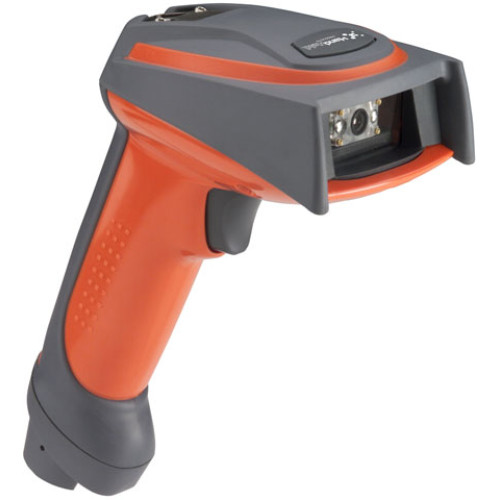

Honeywell 4800i Barcode Scanner
Part #: 4800ISR051C-0G00E | SKU: HON26899

The IMAGETEAM 4800 Industrial 2D Area Imager is the first hand held area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.

Honeywell 4800i Barcode Scanner

Part Details: 4800i Industrial 2D Image Scanner (Industrial Area Imager, User Guide, Standard Range, Complete Decode 1D and No Cable)
Need a different version of the Honeywell 4800i Barcode Scanner? View all 10 configurations

Additional Information

Included Cables USB
Manufacturer Honeywell
Model Name 4800i
Product Condition No
Specialty Encoding None
Honeywell 4800i Specs Honeywell 4800i Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • RSS
    • ISBT 128
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • RSS
    • ISBT 128
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 8.30 mil
  • Depth of Field:
    • 3" - 7.10"@8.30 mil - Linear
    • 1.60" - 12.70"@13 mil - UPC
    • 4" - 5.70"@6.60 mil - PDF417
    • 2.60" - 8.50"@10 mil - PDF417
    • 1.80" - 9.70"@15 mil - PDF417
    • 1.50" - 12.50"@35 mil - Maxi Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4800i
  • Product Name: 4800i SR Barcode Reader

Physical Characteristics

  • Height: 6.4"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Orange
  • Weight (Approximate): 7.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 4800i SR Barcode Reader
    • User Documentation
    • 4800i SR Barcode Reader
    • User Documentation
  • Certifications & Standards:
    • RoHS Compliant
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise Compliant
  • Additional Information:
    • Supported Interfaces:
    • Keyboard WedgeSerialUSBIBM 4683Wand Emulation

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details
