Honeywell 4800i Barcode Scanner Honeywell 4800i Barcode Scanner Honeywell 4800i Barcode Scanner
Honeywell Barcode Scanner, Mobile Handheld Computer & Verifier

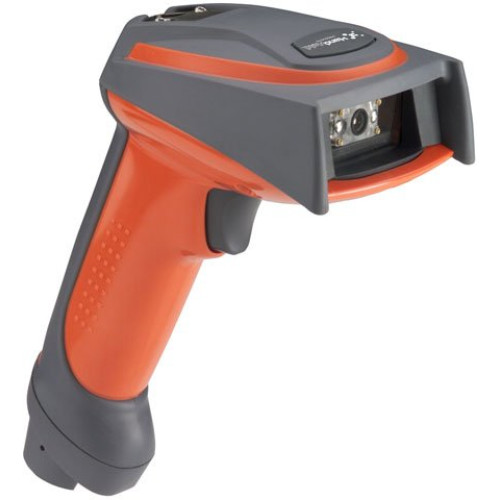

Honeywell 4800i Barcode Scanner
Part #: 4800ISR031CE | SKU: HON28330

The IMAGETEAM 4800 Industrial 2D Area Imager is the first hand held area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.

Honeywell 4800i Barcode Scanner

Part Details: 4800i Industrial 2D Image Scanner (Industrial 2D Imager, Supports True RS-232 and 12V DEC Wedge - Unit Only)
Need a different version of the Honeywell 4800i Barcode Scanner? View all 10 configurations

Additional Information

Included Cables USB
Manufacturer Honeywell
Model Name 4800i
Product Condition No
Specialty Encoding None
Honeywell 4800i Specs Honeywell 4800i Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC/EAN/JAN
    • RSS
    • ISBT 128
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
    • PDF 417
    • Micro PDF
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC/EAN/JAN
    • RSS
    • ISBT 128
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 8.30 mil
  • Depth of Field:
    • 2" - 6"@7.50 mil - Linear
    • 1.50" - 8.40"@13 mil - UPC
    • 2.30" - 5.50"@6.60 mil - PDF417
    • 1.70" - 7.10"@10 mil - PDF417
    • 1.30" - 7"@15 mil - Data Matrix
    • 1.70" - 6.70"@15 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4800i
  • Product Name: 4800i Barcode Reader

Physical Characteristics

  • Height: 6.4"
  • Width: 3.2"
  • Depth: 5.3"
  • Weight (Approximate): 7.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1
    • RoHS
    • LED Safety:
    • LED Safety Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise
  • Additional Information:
    • Supported Interfaces:
    • Keyboard WedgeSerialIBM 468X/469X

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 14 V DC
Extended Details

Recommended Accessories for Model: Honeywell 4800i Barcode Scanner

  • Hand Held ImageTeam 4800 Accessory
    Part #: 42206161-01E | SKU: 24928

    USB cable (Type A), 8.5', Straight
    Price: $26.74

  • Honeywell Accessories Power Device
    Part #: 77900506E | SKU: HON27568

    Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0ft) - US . Non-Cancelable/Non-Returnable.
    Price: $21.40

  • Honeywell Granit 1911i & 1910i Accessory
    Part #: TOOLBAL | SKU: HON22721

    Take-Up Reel/Balancer for Honeywell 4800 Scanner
    MSRP: $132.36 Price: $108.61

  • Honeywell Cables Accessory
    Part #: 42206422-01E | SKU: HON27574

    Cable: RS232 TTL, black, DB9, 2.3m (7.7'), straight, 5v external power
    MSRP: $72.34 Price: $59.70

  • Honeywell Cables Accessory
    Part #: 42206132-02SE | SKU: HON24927

    Cable: AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), straight
    Price: $33.95
