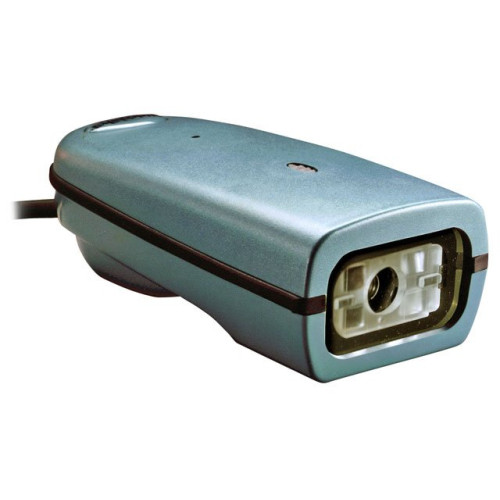

Honeywell ImageTeam 4710 Barcode Scanner
Part #: 4710HD-121CK | SKU: HON4678

The IMAGETEAM 4710 Image Reader can be configured as either a hand held or fixed mount device which reads matrix stacked linear and conventional linear bar codes as well as a single line of OCR-A and OCR-B text. The IT4710 has the power to capture and download images to a PC for applications that include signature capture PC-based decoding and image lift requirements as well. The IT4710 Reader is ideally suited to packaging printed circuit board manufacturing electronic component manufacturing and clinical-diagnostic applications and may be configured for keyboard wedge HHLC (Code 128 emulation) TTL RS232 or True RS232 output. The IT4710 connects to all popular PCs and portable data terminals.

Honeywell ImageTeam 4710 Barcode Scanner

Part Details: 4710HD Image Reader (Fixed Mount, 2D, High Density, Keyboard Wedge Kit with Keyboard Wedge Cable and Universal Power Supply)

Need a different version of the Honeywell ImageTeam 4710 Barcode Scanner? View all 11 configurations

Additional Information

Included Cables	USB
Manufacturer	Honeywell
Model Name	ImageTeam 4710
Product Condition	No
Scan Pattern	No
Scanner Capability	2D
Scanner Type	No
Specialty Encoding	None

Honeywell ImageTeam 4710 Specs (pdf)

Technical Information

Form Factor:
- Handheld Scanner
- Fixed Mount Scanner
Barcode Dimension: 1D/2D
Symbologies Supported:
- Code 39
- Code 128
- Codabar
- UPC
- EAN
- RSS
- Code 93
- Coda Block
- PDF 417
- DataMatrix
- Interleaved 2 of 5
- OCR-A
- OCR-B
- MaxiCode
- Micro PDF417
- Aztec Mesa
- Aztec
- QR Code
- Code 49
- UCC Composite
- Postnet
- BPO4 State
- Canadian 4 State
- Japanese Post
- Kix
Scanner Type: Imager
Interface Options: Keyboard Wedge
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Input Voltage Range: 4 to 9 V DC
Depth of Field:
- 1.7 - 2.45"@6.6mils - QR
- 1.7 - 2.45"@6.6mils - Data Matrix
- 1.6 - 2.7"@4mils - Linear

General Information

Manufacturer: Hand Held Products
Product Line: IMAGETEAM
Product Name: IMAGETEAM 4710 HD Barcode Scanner

Physical Characteristics

Dimensions: 1.85" (46.99mm) x 2.5" (63.5mm) x 4.85" (123.19mm)
Weight: 5.5 oz - Without cord

Other

Package Contents:
- IMAGETEAM 4710 HD Barcode Scanner
- Cable
- Power Supply
Cables Included: PS/2 Cable

Agency Approvals

Agency Approvals:
- FCC Class B
- CE
- EMC 89/336/EEC
- LVD 73/23/EEC

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)

Extended Details

Recommended Accessories for Model: Honeywell ImageTeam 4710 Barcode Scanner

Honeywell ImageTeam 4410 Accessory
Part #: PS-050-2400D-NA | SKU: HON74284

US Power Supply (5 volt, 2.4 amp barrel connector, 100-250V with Cord-NA) for the QC980, 4410 and 4710. RoHS Compliant. Replaces (Part# PS5U-11E). Non-Cancelable/Non-Returnable.
Honeywell ImageTeam 4410 Accessory
Part #: PS5U-11 | SKU: HON4620

Universal Power Supply (US 100-250VAC, with Cord)
Honeywell ImageTeam 4710 Accessory
Part #: 42206226-01 | SKU: HON5172

Cable (Keyboard wedge, External Power Required) for the 4400 and 4700
Honeywell ImageTeam 4710 Accessory
Part #: 42205626-03 | SKU: HON5174

Cable (True RS-232, 9-Pin D Female - External Power Required) for 4410-4710 Image Readers
Honeywell ImageTeam 4710 Accessory
Part #: 42205821-01 | SKU: HON5175

Cable (RS-232, 9-Pin D Female - External Power Required) for the 4400-4710 Image Readers
