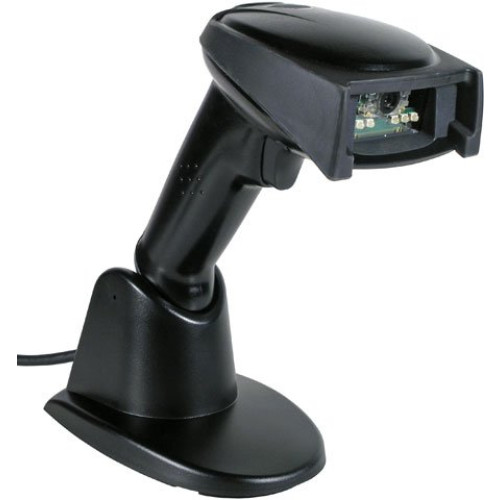

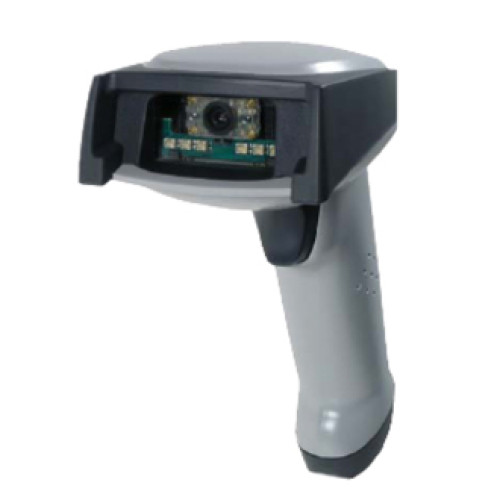

Honeywell 4600r Barcode Scanner
Part #: 4600RSR151C | SKU: HON22657

The Honeywell 4600r delivers excellent reading performance of all barcodes, including PDF417 codes commonly used on drivers' licenses in the United States and Canada. This performance enables the 4600r to be used for auto-populating electronic forms (e-forms), used for credit card applications, extended warranties, and returned goods processes. Verification of personal identification also enables age validation for the sale of restricted goods. In addition to high performance linear and 2D barcode reading, you'll discover the 4600r delivers a whole new level of versatility not possible with traditional, single-function, hardware solutions. Powered by Adaptus Imaging Technology 5.0, the 4600r takes digital pictures - allowing the user to electronically capture, store, and retrieve signatures, pharmacy prescriptions, and forms of personal identification. With best-in-class linear and 2D barcode reading, the versatility of image capture, and an extensive set of software tools to extend its functionality, the 4600r protects your investment against changing requirements and enables you to capture and manage more data with one easy-to-use solution.

Honeywell 4600r Barcode Scanner

Part Details: Retail-commercial grade area imager, Imager only, Requires cable

Additional Information

Included Cables USB
Manufacturer Honeywell
Model Name 4600r
Product Condition No
Specialty Encoding None

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Symbologies Supported:
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Codablock F
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Scanner Type: Imager
  • Interface Options:
    • RS-232
    • USB
    • Keyboard Wedge
    • IBM 4683
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 3.5 - 7.5"@8.3mils - Linear
    • 3.2 - 9.2"@10mils - Linear
    • 2.1 - 13.1"@13mils - UPC
    • 4.5 - 6.1"@6.6mils - PDF417
    • 3.1 - 8.9"@10mils - PDF417
    • 2.3 - 10.1"@15mils - Data Matrix

General Information

Physical Characteristics

  • Dimensions: 6.2" (157.48mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
  • Weight: 6.3 oz
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • FCC Part 15 Class A
    • Canada: ICES-003 Class A
    • Mexico: NOM-NYCE
    • AUS/NZ: C-Tick:AS/NZ 3548
    • UL 60950-1:2003
    • CSA C22.2 No 60950-1-03
    • TUV/GS Mark approval for EN60950-1:2003
    • IEC60825-1
    • CB Scheme EN60950-1
    • IEC 60825-1
    • EN55022 Class A
    • EN55024
    • EN61000-3-2
    • EN61000-3-3

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)
Extended Details

Recommended Accessories for Model: Honeywell 4600r Barcode Scanner

  • Hand Held ImageTeam 4800 Accessory
    Part #: 42206161-01E | SKU: 24928

    USB cable (Type A), 8.5', Straight
    Price: $26.74
  • Honeywell Cables Accessory
    Part #: 42206422-01E | SKU: HON27574

    Cable: RS232 TTL, black, DB9, 2.3m (7.7'), straight, 5v external power
    MSRP: $72.34 Price: $59.70
  • Honeywell 4600r Accessory
    Part #: HFSTAND5RSE | SKU: HON60487

    Retail Flex Neck Stand (with Out of Stand Sensor) Use with 4600R. Non-Cancelable/Non-Returnable.
    Price: $33.24
  • Honeywell Cables Accessory
    Part #: 42205155-04E | SKU: HON45740

    Cable (23 Feet - 7.0 Meters, IBM 4683, 4684, 4693, 4694, Port 9A/B)
    Price: $129.92
  • Honeywell Cables Accessory
    Part #: 42203758-04E | SKU: HON26905

    Cable: RS232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7ft. (2.3m)
    MSRP: $32.40 Price: $31.81
