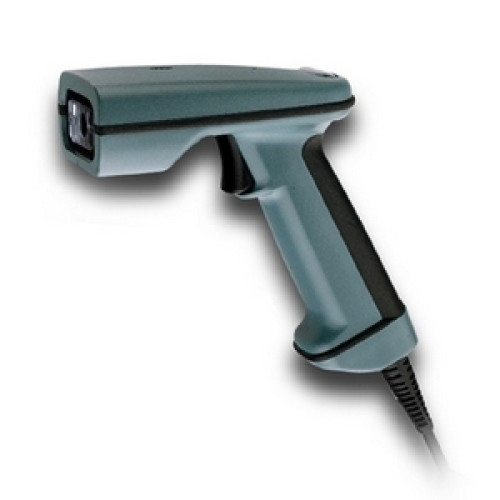

Honeywell ImageTeam 4410 Barcode Scanner
Part #: 4410HD-131CK | SKU: HON4619

The IMAGETEAM 4410 High Density Image Reader is a hand held input device for reading and decoding two dimensional (2D) symbologies and OCR text as well as capturing images for signature capture and related applications. Offering integrated support for all popular matrix stacked linear (PDF417) and conventional linear bar codes the IT4410 can be configured for keyboard wedge non-decoded laser TTL or True RS232 output. Lightweight balanced and easy to use the IT4410 can be used in repetitive high volume hand scanning operations in even the most demanding environments.

Honeywell ImageTeam 4410 Barcode Scanner

Part Details: IMAGETEAM 4410 Handheld 2D Image Reader Combo Kit, Decoded, 1D-2D, High Density, RS232 Interface

Need a different version of the Honeywell ImageTeam 4410 Barcode Scanner? View all 9 configurations

Additional Information

Included Cables	USB
Manufacturer	Honeywell
Model Name	ImageTeam 4410
Product Condition	No
Specialty Encoding	None

Honeywell ImageTeam 4410 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- PDF 417
- DataMatrix
- Code 39
- Code 128
- Codabar
- UPC
- Interleaved 2 of 5
- RSS
- Code 93
- Coda Block
- OCR-A
- OCR-B
- BC 412
Scanner Type: Imager
Interface Options: RS-232
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Power Supply: Included
Depth of Field:
- 1.7 - 2.45"@6.6mils - QR
- 1.7 - 2.45"@6.6mils - Data Matrix
- 1.6 - 2.7"@4mils - Linear

General Information

Manufacturer: Hand Held Products
Product Line: IMAGETEAM
Product Name: IMAGETEAM 4410HD High Density Barcode Scanner

Physical Characteristics

Dimensions: 5.6" (142.24mm) x 2.5" (63.5mm) x 6.1" (154.94mm)
Weight: 7 oz - (without cord)

Other

Package Contents:
- IMAGETEAM 4410HD Barcode Scanner
- Power Supply
- Interface Cable
Cables Included: RS-232

Agency Approvals

Agency Approvals:
- FCC Class B
- CE
- EMC 89/336/EEC
- LVD 73/23/EEC

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 95%

Warranty

Manufacturer Warranty: 3 Year(s)

Extended Details

Recommended Accessories for Model: Honeywell ImageTeam 4410 Barcode Scanner

Honeywell ImageTeam 4410 Accessory
Part #: PS-050-2400D-NA | SKU: HON74284

US Power Supply (5 volt, 2.4 amp barrel connector, 100-250V with Cord-NA) for the QC980, 4410 and 4710. RoHS Compliant. Replaces (Part# PS5U-11E). Non-Cancelable/Non-Returnable.
Honeywell ImageTeam 4410 Accessory
Part #: PS5U-11 | SKU: HON4620

Universal Power Supply (US 100-250VAC, with Cord)
Honeywell ImageTeam 4410 Accessory
Part #: 42206007-01 | SKU: HON4623

PC Cable (Mini Din - External Power Required) for the 4410 and 4710
Honeywell ImageTeam 4410 Accessory
Part #: 44/4710/UG | SKU: HON4624

4410-4710 User's Guide
Honeywell ImageTeam 4410 Accessory
Part #: 44/47SCANSTAND | SKU: HON6909

Hands-Free Adjustable Stand (with Target) for the 4410 and 4710 image Readers
