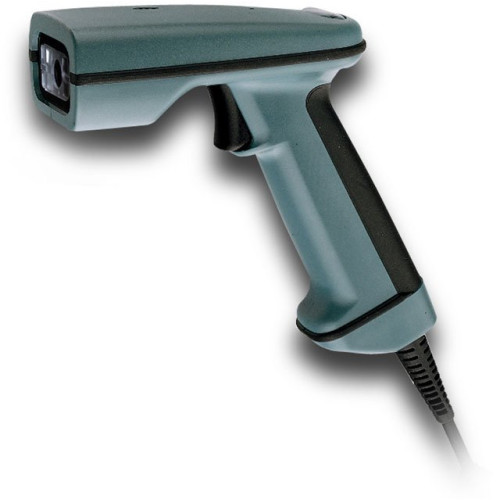

Honeywell ImageTeam 4410 Barcode Scanner
Part #: 4410HD-121CK | SKU: HON4621

The IMAGETEAM 4410 High Density Image Reader is a hand held input device for reading and decoding two dimensional (2D) symbologies and OCR text as well as capturing images for signature capture and related applications. Offering integrated support for all popular matrix stacked linear (PDF417) and conventional linear bar codes the IT4410 can be configured for keyboard wedge non-decoded laser TTL or True RS232 output. Lightweight balanced and easy to use the IT4410 can be used in repetitive high volume hand scanning operations in even the most demanding environments.

Honeywell ImageTeam 4410 Barcode Scanner

Part Details: 4410HD Handheld 2-D Image Reader (Visible Red, with Keyboard Wedge Interface, Cable and Universal Power Supply)

Need a different version of the Honeywell ImageTeam 4410 Barcode Scanner? View all 9 configurations

Additional Information

Included Cables	USB
Manufacturer	Honeywell
Model Name	ImageTeam 4410
Product Condition	No
Specialty Encoding	None

Honeywell ImageTeam 4410 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- MaxiCode
- PDF 417
- Micro PDF417
- Aztec
- Aztec Mesa
- DataMatrix
- QR Code
- Code 49
- EAN-UCC Composite
- Code 39
- Code 128
- Codabar
- UPC
- Interleaved 2 of 5
- RSS
- Code 93
- Coda Block
- Postnet
- BPO4 State
- Canadian 4 State
- Japanese Post
- KIX(Netherlands) Post
- Planet Code
- OCR-A
- OCR-B
- EAN
- MaxiCode
- PDF 417
- Micro PDF417
- Aztec
- Aztec Mesa
- DataMatrix
- QR Code
- Code 49
- EAN-UCC Composite
- Code 39
- Code 128
- Codabar
- UPC
- Interleaved 2 of 5
- RSS
- Code 93
- Coda Block
- Postnet
- BPO4 State
- Canadian 4 State
- Japanese Post
- KIX(Netherlands) Post
- Planet Code
- OCR-A
- OCR-B
- EAN
Depth of Field:
- 1.70" - 2.45"@6.60 mil - QR Code
- 1.70" - 2.45"@6.60 mil - Data Matrix
- 1.60" - 2.70"@4 mil - Linear

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 4410 HD
Product Name: IMAGETEAM 4410 HD Barcode Reader
Product Line: IMAGETEAM
Package Type: Retail

Physical Characteristics

Height: 5.6"
Width: 2.5"
Depth: 6.1"
Weight (Approximate): 6.98 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Package Contents:
- IMAGETEAM 4410HD Image Reader
- Power Supply
- Interface Cable
- IMAGETEAM 4410HD Image Reader
- Power Supply
- Interface Cable
Certifications & Standards:
- FCC Class B
- CE
- EMC 89/336/EEC
- LVD 73/23/EEC
Platform Supported: PC
Additional Information:
- Supported Interfaces:
- RS-232
- Wedge
- HHLC (Code 128 Emulation)

Warranty

Limited Warranty: 3 Year
