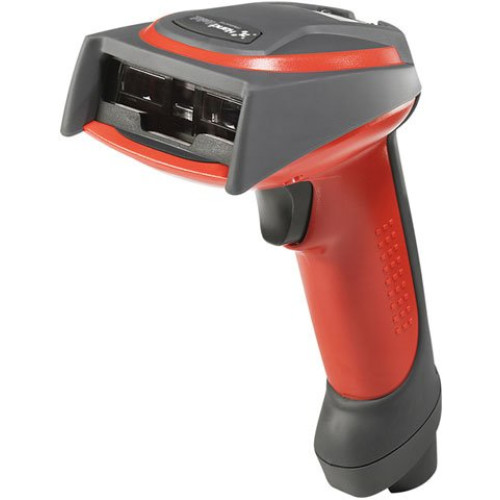

Honeywell 3800i Barcode Scanner Honeywell 3800i Barcode Scanner Honeywell 3800i Barcode Scanner
Honeywell Barcode Scanner, Mobile Handheld Computer & Verifier

Honeywell 3800i Barcode Scanner
Part #: 3800ISR030E | SKU: HON22576

The 3800i is purpose-built for the most demanding applications in the toughest conditions, including warehouse, distribution, logistics and rugged retail environments.

Honeywell 3800i Barcode Scanner

Part Details: SCANNER ONLY, True RS-232 (NOT A STANDARD CONFIGURATION). Cables and accessories are not included and must be purchased separately. These include RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# PS-090-2000D-NA). Non-Cancelable/Non-Returnable.
Need a different version of the Honeywell 3800i Barcode Scanner? View all 7 configurations

Additional Information

Connection No
Connectivity No
Form Factor No
Included Cables No
Manufacturer Honeywell
Model Name 3800i
Product Condition No
Ruggedness No
Scan Pattern No
Scanner Capability 1D
Scanner Type No
Honeywell 3800i Specs Honeywell 3800i Specs (pdf)

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Cable
  • Scanning Distance: 82"
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Post
    • RSS
    • and ISBT 128 Concatenation (requires a paid license)
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Post
    • RSS
    • and ISBT 128 Concatenation (requires a paid license)
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 6.50" - 15"@7.50 mil
    • 2.50" - 28"@ - 100% UPC
    • 2.50" - 31"@15 mil
    • 1.50" - 42"@20 mil
    • 4" - 82"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800i
  • Product Name: 3800i Barcode Reader
  • Product Line: IMAGETEAM

Physical Characteristics

  • Height: 6.4"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Orange
  • Weight (Approximate): 7.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • UL
    • cUL
    • TÜV
    • RoHS
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeUSBWand EmulationHHLC Non-decoded Laser CompatibleIBM 468X/469XTTL level RS-232

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC
Extended Details
