Honeywell 3800g Barcode Scanner Honeywell 3800g Barcode Scanner Honeywell 3800g Barcode Scanner
Honeywell Barcode Scanner, Mobile Handheld Computer & Verifier

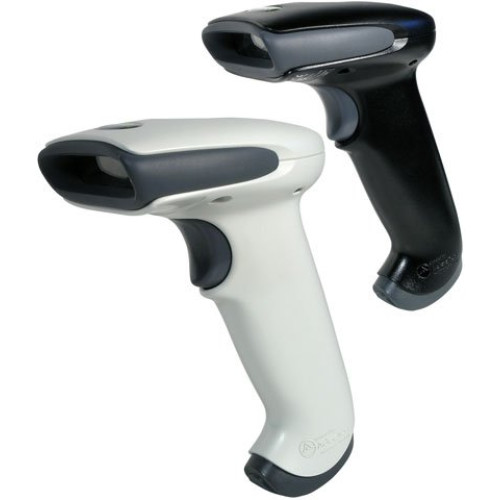

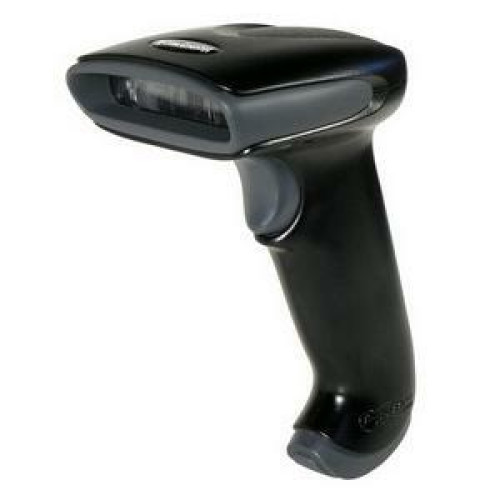

Honeywell 3800g Barcode Scanner
Part #: 3800G05E | SKU: HON22575

From the global leader in imaging technology comes the 3800g - the newest member of the legendary 3800 family of linear imagers. The first in a new class of 3800 linear imagers, the g was built to deliver world-class performance for a broad range of market applications. Featuring an ideal balance of performance, durability, ergonomics and connectivity solutions, the 3800g delivers years of hassle-free scanning for applications in Retail, Warehouse, Manufacturing, Distribution - and all points in-between.

Honeywell 3800g Barcode Scanner

Part Details: General Purpose Linear Image Scanner Kit (Keyboard Wedge, TTL RS-232, IBM Retail USB, Retail USB and 5-12V) - Color: Ivory
Need a different version of the Honeywell 3800g Barcode Scanner? View all 18 configurations

Additional Information

Included Cables USB
Manufacturer Honeywell
Model Name 3800g
Product Condition No
Scanner Capability 1D
Scanner Type No
Specialty Encoding None
Honeywell 3800g Specs Honeywell 3800g Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 3 mil(s)
  • Symbologies Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Sunrise 2005
    • GTIN Compliant
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • Keyboard Wedge
    • RS-232
    • USB
    • IBM Retail
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage Range: 5 to 12 V DC
  • Depth of Field:
    • 2 - 8"@5mils
    • 1.5 - 12"@7.5mils
    • 1 - 15"@10mils - 80% UPC
    • 0.5 - 18"@13mils - 100% UPC
    • 1 - 22"@15mils
    • 1 - 26"@20mils

General Information

Physical Characteristics

  • Dimensions: 5.9" (149.86mm) x 3.1" (78.74mm) x 4.4" (111.76mm)
  • Weight: 5.6 oz
  • Color: Ivory

Agency Approvals

  • Agency Approvals:
    • UL
    • cUL
    • RoHS
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)
Extended Details

Recommended Accessories for Model: Honeywell 3800g Barcode Scanner

  • Hand Held ImageTeam 4800 Accessory
    Part #: 42206161-01E | SKU: 24928

    USB cable (Type A), 8.5', Straight
    Price: $26.74

  • Honeywell Accessories Power Device
    Part #: 77900506E | SKU: HON27568

    Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0ft) - US . Non-Cancelable/Non-Returnable.
    Price: $21.40

  • Honeywell Accessories Accessory
    Part #: HFSTAND7E | SKU: HON21833

    Flex-Stand - 10" Height - Color: Black - Compatible with 1300g
    MSRP: $46.32 Price: $39.47

  • Honeywell Cables Accessory
    Part #: 42206422-01E | SKU: HON27574

    Cable: RS232 TTL, black, DB9, 2.3m (7.7'), straight, 5v external power
    MSRP: $72.34 Price: $59.70

  • Hand Held ImageTeam 3800 Accessory
    Part #: 42206132-01E | SKU: 24924

    15 ft, Mini Din, 6-pin Male/Female, External power required, for the 3800
    Price: $106.40
