Honeywell Barcode Scanner, Mobile Handheld Computer & Verifier

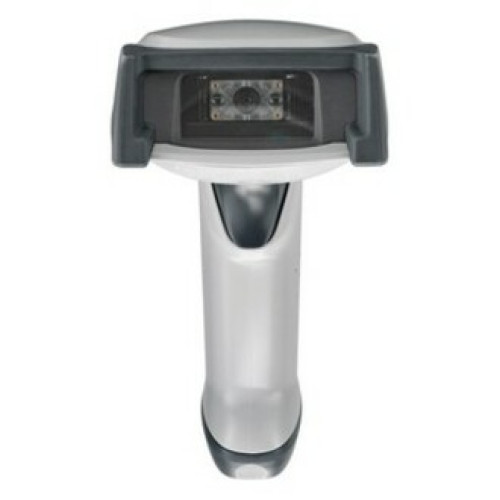

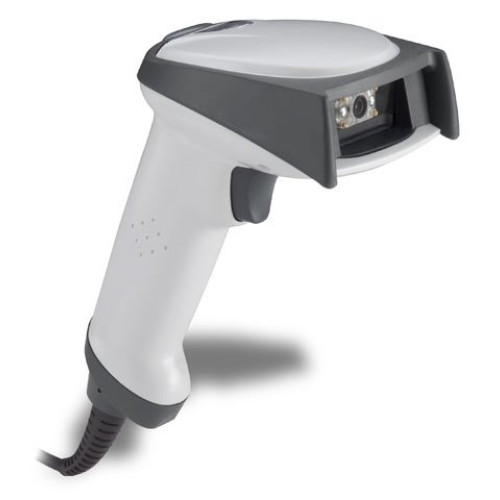

Honeywell 4600g HD Barcode Scanner
Part #: 30207-011956E | SKU: HON37086

Featuring the right blend of durability, ergonomics and connectivity options, the 4600g is perfect for a broad range of applications requiring the power and versatility of a 2D imager. Ideal for use in retail, pharmacy, manufacturing and postal applications.

Honeywell 4600g HD Barcode Scanner

Part Details: General Purpose 2d Image Scanner, Hand held, USB, USB kit included, Gray

Need a different version of the Honeywell 4600g HD Barcode Scanner? View all 7 configurations

Additional Information

Included Cables	USB
Manufacturer	Honeywell
Model Name	4600g HD
Product Condition	No
Scan Pattern	No
Scanner Capability	2D
Scanner Type	No
Specialty Encoding	None

Honeywell 4600g HD Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- Linear:
- ABC Codabar (American Blood Commission)
- BC412
- China Post
- Codabar
- Code 11
- Code 128
- Code 32 Pharmaceutical (PARAF)
- Code 39
- Code 93 and 93i
- EAN-13 (including Bookland EAN)
- EAN-13 with Add-On
- EAN-13 with Extended Coupon Code
- EAN-8
- EAN-8 with Add-On
- GS1 Databar Expanded
- GS1 Databar Limited
- GS1 DataBar Omnidirectional
- GS1 Databar Truncated
- GS1-128
- Interleaved 2 of 5
- ISBT 128
- ITF-14
- Label Code
- Matrix 2 of 5
- MSI-Plessey
- UK Plessey Code
- PosiCode
- Straight 2 of 5 IATA
- Straight 2 of 5 Industrial
- Telepen
- Trioptic Code
- UPC-A
- UPC-A with Add-On
- UPC-A with Extended Coupon Code
- UPC-E
- UPC-E with Add-On
- UPC-E1 (obsolete)
- Stacked:
- Codablock F
- Code 16K
- Code 49
- GS1 Composite
- GS1 Databar Expanded Stacked
- GS1 Databar Stacked
- GS1 Databar Stacked Omnidirectional
- MicroPDF417
- PDF417
- TCIF Linked Code 39 (TLC39)
- Matrix:
- Aztec Code
- Aztec Mesas
- Chinese Sensible Code (Han Xin Code)
- Data Matrix
- Grid Matrix Code
- MaxiCode
- QR Code and Micro QR Code
- Postal:
- Australian Post
- British Post
- Canadian Post
- ID-tag (UPU 4-State)
- Intelligent Mail Barcode
- Japanese Post
- Netherlands (KIX) Post
- Korea Post
- Planet Code
- Postnet
- OCR:
- OCR MICR (E 13 B)
- OCR SEMI Font
- OCR US Money Font
- OCR-A
- OCR-B
- Linear:
- ABC Codabar (American Blood Commission)
- BC412
- China Post
- Codabar
- Code 11
- Code 128
- Code 32 Pharmaceutical (PARAF)
- Code 39
- Code 93 and 93i
- EAN-13 (including Bookland EAN)
- EAN-13 with Add-On
- EAN-13 with Extended Coupon Code
- EAN-8
- EAN-8 with Add-On
- GS1 Databar Expanded
- GS1 Databar Limited
- GS1 DataBar Omnidirectional
- GS1 Databar Truncated
- GS1-128
- Interleaved 2 of 5
- ISBT 128
- ITF-14
- Label Code
- Matrix 2 of 5
- MSI-Plessey
- UK Plessey Code
- PosiCode
- Straight 2 of 5 IATA
- Straight 2 of 5 Industrial
- Telepen
- Trioptic Code
- UPC-A
- UPC-A with Add-On
- UPC-A with Extended Coupon Code
- UPC-E
- UPC-E with Add-On
- UPC-E1 (obsolete)
- Stacked:
- Codablock F
- Code 16K
- Code 49
- GS1 Composite
- GS1 Databar Expanded Stacked
- GS1 Databar Stacked
- GS1 Databar Stacked Omnidirectional
- MicroPDF417
- PDF417
- TCIF Linked Code 39 (TLC39)
- Matrix:
- Aztec Code
- Aztec Mesas
- Chinese Sensible Code (Han Xin Code)
- Data Matrix
- Grid Matrix Code
- MaxiCode
- QR Code and Micro QR Code
- Postal:
- Australian Post
- British Post
- Canadian Post
- ID-tag (UPU 4-State)
- Intelligent Mail Barcode
- Japanese Post
- Netherlands (KIX) Post
- Korea Post
- Planet Code
- Postnet
- OCR:
- OCR MICR (E 13 B)
- OCR SEMI Font
- OCR US Money Font
- OCR-A
- OCR-B
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1.90" - 3.80"@5 mil
- 1.60" - 6.20"@13 mil - UPC
- 1.60" - 4.50"@6.60 mil - PDF
- 2.40" - 3.50"@6.70 mil - DM
- 2.30" - 3.40"@6.70 mil - QR

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 4600g
Product Name: 4600g Barcode Reader

Physical Characteristics

Height: 6.2"
Width: 3.2"
Depth: 5.3"
Weight (Approximate): 6.50 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS

Warranty

Limited Warranty: 5 Year
