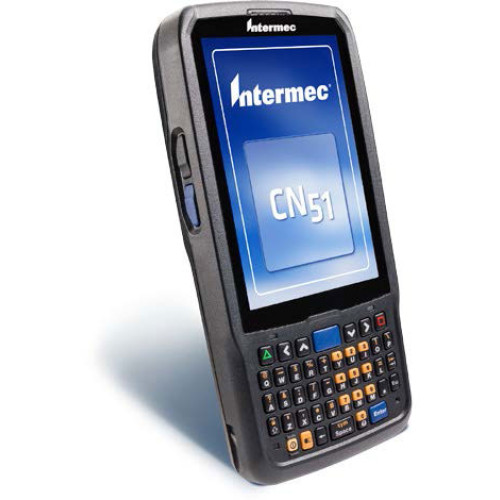

Honeywell CN51 Mobile Computer

Physical Characteristics

Length: 164 mm (6.45 in) with battery
Width: 74 mm (2.93 in) with battery
Depth:
Base of Unit: 28 mm (1.09 in) with battery
Top of Unit: 32 mm (1.26 in) with battery
Weight: 350 g (12.3 oz) with battery

Environment

Operating Temperature: -10° C to +50° C (+14° F to +122° F)
Storage Temperature: -20° C to +70° C (-4° F to +158° F)
Charging Temperature: +5° C to +35° C (+41° F to +95° F)
Relative Humidity: Non-condensing, 95%
Rain and Dust Resistance: IP64
Drop Spec: 26 drops from 1.5m (5 ft) to concrete across the operating temperature range per MIL-STD 810G
Tumble Spec: 1,000 - 0.5 m (1.6 ft) tumbles at room temperature
Electrostatic Discharge: +/- 15kV air discharge, +/- 8kV direct discharge

Power

Smart Battery Pack: 3.7V, 3900 mAh; Batteries are IEEE 1725 compliant, Li-Ion, removable, rechargeable.

Operating System

Microsoft Windows Embedded Handheld v6.5 or Android v4.1
For the Android OS version, limited configurations available, please consult your sales representative

Microprocessor

Texas Instruments 1.5 GHz OMAP 4470 dual core, multi-engine processor architecture

Memory and Storage

Memory: 1 GB RAM
Flash ROM: 16 GB Flash
Customer-accessible micro-SD slot for removable memory cards up to 32 GB

Display

•10.16 cm (4.0 in), 480 x 800 pixel (WVGA) TFT-LCD display
•LCD supports 24 bpp color depth
•LED backlight
•Ambient light sensor
•Resistive multi-touch touch panel

Communications Interface

USB – High Speed 2.0 Host, USB – High Speed 2.0 Client
Wireless:
Wireless LAN: IEEE®802.11 a/b/g/n on devices without Wireless WAN radio; IEEE®802.11 b/g/n on cellular devices
Security: WiFi Certified for WPA and WPA2, WAPI Certified
Authentication: 802.1x
Cisco Compatibility: CCXv4
Encryption: WEP (64 or 128 bit), AES, TKIP

Wireless PAN: Integrated Bluetooth® Power Class 1.5 Version 4 BLE

Global Positioning System (with WAN Radio option) 12 channel Integrated GPS; Network independent autonomous mode; supports assisted operation via XTRA®, CP E911
•GPS dedicated AT commands
•Protocol: NMEA-0183 V2.3
•Tracking Sensitivity: better than -158 dBm
•GLONASS support

Integrated Radios
Wireless WAN Options
UMTS / HSPA+ (Voice & Data); Worldwide except Americas, Australia and New Zealand
UMTS/HSPA Frequencies: 900, 2100 MHz
Max Speeds (Network Dependent): Uplink – 5.76 Mbps Downlink – 14.4 Mbps
GSM/GPRS/EDGE Frequencies: 900, 1800 MHz
Max Speeds (Network Dependent): Uplink – 384 Kbps Downlink – 384 Kbps

Flexible Network™ (Voice & Data); Americas, Australia and New Zealand (Can be switched between the UMTS and CDMA radio networks)
UMTS/HSPA+
UMTS Frequencies: 800, 850, 900, 1900, 2100 MHz GSM/GPRS/EDGE Frequencies: 850, 900, 1800, 1900 MHz
Max Speeds (Network Dependent): Uplink – 5.76 Mbps Downlink – 14.4 Mbps
CDMA/EV-DO Rev A
Dual Band CDMA2000 Bands: BC0 & BC1 (800/1900 MHz) Max Speeds (Network Dependent): Uplink – 1.8 Mbps Downlink – 3.1 Mbps

Scanning Performance

Scan Engine Options:
EA30 high performance motion-tolerant 2D Imager; (up to 500 in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mils; 2D as small as 6.6 mils. Refer to User's Manual for depth of field performance.

EA31 high performance motion-tolerant 2D Imager; (up to 400 in/s) white LED illumination. Capable of scanning all common 1D and 2D bar codes; 1D as small as 4 mils; 2D as small as 6.6 mils. Refer to User's Manual for depth of field performance.

Integrated Camera Option: 5 Megapixel auto focus color camera with LED flash

Keypad

(27 Key) Numeric or (43 Key) QWERTY with backlit keypad

Accessories

Supports all CN50 charging and docking accessories as well as FlexDock modular docking system, vehicle dock, vehicle holder, snap on adaptors, removable scan handle, and magnetic stripe reader.
