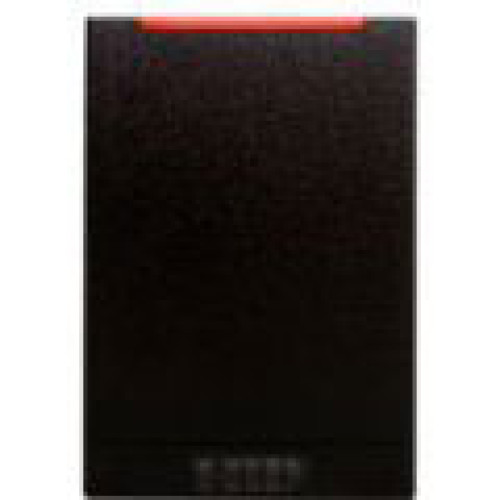

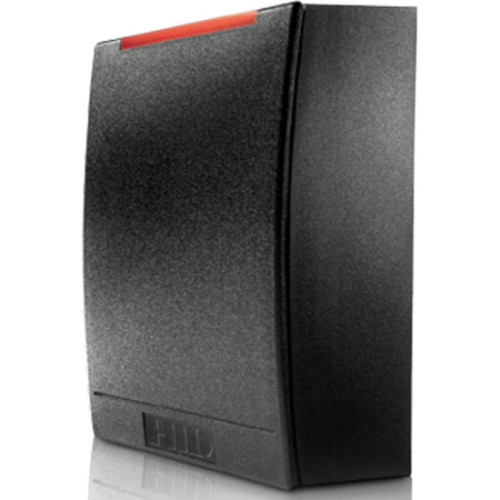

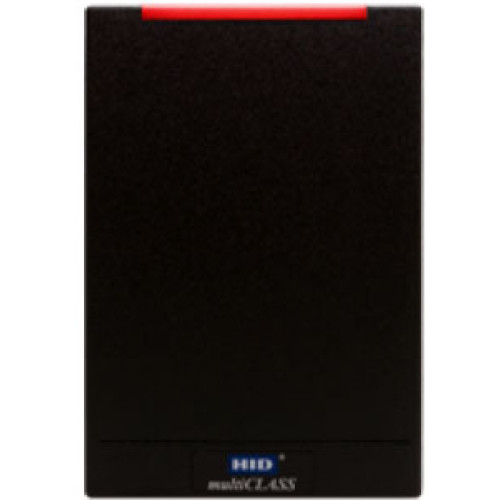

HID EdgeReader Solo Credit Card Reader
Part #: 83120BKI000 | SKU: 123509

Ceiling Grille

HID EdgeReader Solo Credit Card Reader

Part Details: HID EdgeReader Solo ESR40 83120 - Proximity - 1 Door(s) - 16 V DC

Need a different version of the HID EdgeReader Solo Access Control Reader? View all 4 configurations

Additional Information

Manufacturer	No
Model Name	EdgeReader Solo
Product Condition	No

EdgeReader Solo Specs (pdf)

General Information

Product Type: Door Access Control System
Brand Name: HID
Manufacturer: HID Global Corporation
Product Name: EdgeReader Solo ESR40 83120
Product Line: EdgeReader

Technical Information

Identification Method: Proximity
Number of Doors: 1
Features: Standalone
Application/Usage: Door

Physical Characteristics

Height: 4.8"
Width: 3.3"
Depth: 2.3"
Color: Black
Form Factor: Door-mountable
Weight (Approximate): 14.70 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Certifications & Standards:
- UL 294 and UL 1076 Listed Component for the US pending
- CSA 205 for Canada
- FCC Class B Verification (FCC Class A Verification for reader portion only.)
- EMC for Canada
- EU (CE Mark)
- Australia (C-Tick Mark)
- New Zealand, Japan
Additional Information:
- Embedded User Interface, no external software requirement
- Remotely managed via standard web browser
- Works within DHCP or Static IP networks for plug and play installation
- "Door Dashboard" accesses door commands, status, alarms, and recent events from all screens
- Back-up and restore of data from user PC
- Built-in diagnostics
- Installer "calling card" allows inclusion of contact information for user support
- User upgradable firmware
- Built-in help screens
- Manages 1000 cardholders/credentials
- Manages 8 schedules and 3 intervals each day of the week including holidays
- View last 5000 events
- Standardized report generation, including CSV export
- Built-in 802.3af Power over Ethernet (PoE), with 600 mA available for external field devices and locking hardware
- Card Data Formats: Supports any card data format up to 128 bits
- Hardware: 32-bit RISC CPU, 100 MHz processor
- Memory: 8 MB onboard Flash memory; 32 MB SDRAM; 256K SRAM
- Visual Indicators: Two LEDs indicate power/network activity and device I/O activity.
- Wet or Dry door relays
- Permits local laptop computer connections for diagnostics and configuration
- Easily migrates to a host based system - (OEM OR CS)
- After upgrade:
- 40,000 credentials
- Full Edge/VertX® capacities
- 65000 Schedules

Controls/Indicators

Indicators & Controls:
- Reader Configuration Setting (Beep On, LED Normally Red, Reader Flashes Green on Tag Read)
- Simplicity
- Management
- Real Cost Savings

Power Description

Input Voltage: 16 V DC
Input Current: 600 mA

Warranty

Limited Warranty: 18 Month

Extended Details
